90 m3/h Beton Batching Plant

Specifications

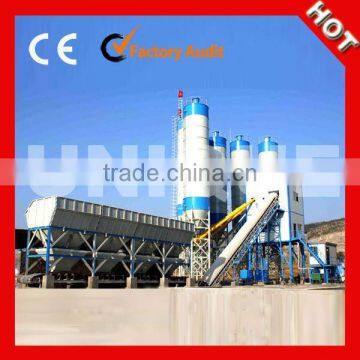

  HZS90 Beton Batching Plant

Description of Beton Batching Plant:
HZS series of concrete mixing plant is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard,  as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.

Features of Beton Batching Plant:
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. With its modularization structure, it is easy to transport, install and debug more quickly.
3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
6. PC+PLC control system ensures the high reliability.
7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
8. Human-based intelligent control facilitates the operation greatly.
9. Structural members are durable, and most electric elements adopt world famous brands.

Application of Beton Batching Plant:
Available for many applications, this stationary concrete batching plant is widely used for water conservancy ,electric power, railroad,  road,  tunnel , the arch of bridge, harbor-wharf and the national defense-project etc..

Technical Parameters of HZS90 Beton Batching Plant

Capacity: 90 m³/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 110 KW
Total Weight: 60 Ton

Total Dimensions: 38500×12000×19400 mm

1. MIXING SYSTEM

Twin Shaft Concrete Mixer: JS1500

Volume: 2400L

Capacity: 1500L

Mixing Blade: 2×9 pcs
Mixing Speed: 23 r/min

Mixer Motor: 45kw

Weight: 10960kg
Dimensions: 5058×2250×2440mm

2. AGGREGATE SYSTEM

2.1 Aggregate batcher: PLD2400

Volume: 4×12 m³

Capacity: 144 m³/h

Power: 11kw

Weight: 7610 kg

Dimension: 10120×3320×3820mm

2.2 Aggregate belt conveyor:  1 unit
Belt width: 1000 mm

Belt speed: 1.6 m/s

Power of Motor: 37 kw

3. CEMENT SYSTEM (OPTIONAL)

3.1 Cement silo: 4 units

Capacity: 100t×4=400t

Silo Diameter: Φ3000

3.2 Cement Screw Feeder: 4 units

Diameter: Φ273mm

Length: 9m

4. ADDITIVE SYSTEM (OPTIONAL)

Additive silo Capacity: 1m³

Pneumatic Valve: Φ50 mm

Pump: 2×3kw

5. WATER SYSTEM

Motor Power: 7.5 kw

Butterfly Valve: Φ150 mm

Capacity: 150m³/h

6. AIR SYSTEM

Air Compressor: 1unit

Power: 11 kw

Pressure: 1.0 Mpa

Air flew: 1.2m³/min

7. WEIGHING SYSTEM

7.1 Aggregate Weighing: 1 unit

Weighing Capacity: 4000kg

Precision:  ±1%

7.2 Cement Weighing: 1 unit

Weighing Capacity: 1000kg

Precision: ±1%

7.3 Water Weighing: 1 unit

Weighing Capacity: 400 kg

Precision: ±1%

7.4 Additive Weighing: 1 unit

Weighing Capacity: 50 kg

Precision: ±1%

8. CONTROL SYSTEM
PLC command and control operation.

Main electrical components: SCHNEIDER or SIMENSE

17’’ colorful computer

Manuel and Auto Control is freely changeable .
