Asphalt Bitumen Mixing Plant 40ton per Hour
- Qingdao
- T/T Credit Card
You May Like
-
120t/h China Supplier Asphalt Mixing Plant For Sale
-
2015 China Manuafcturer Fixed and Mobile Asphalt Plant
-
New Design Wet Mix Asphalt Plant /Asphalt Mixing Plant
-
Road Making Asphalt Making Plant LB1000/ Small Used Asphalt Plant 80ton
-
China Asphalt Mixing Plant in Kenya/ Asphalt Mixing Plant for Africa
-
Bitumen Melting Machine And Asphalt Mixing Plant for the Philippines
Product Details
| Condition | New | Place of Origin | Hainan, China | |
| Brand Name | UNIQUE | Model Number | LB1500 | |
| Voltage | 220V/380V-50Hz | Power(W) | 369kw | |
| Dimension(L*W*H) | 40m*30m*17m | Weight | 70t | |
| Certification | ISO.CE | Warranty | 18 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Asphalt bitumen mixing plant 40ton per hour
Asphalt bitumen mixing plant mainly including batching systems, drying systems, burning systems, hot material enhance, vibrating screen, hot material storage bins, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished product storage bin,control system and other parts.
Parameter of asphalt bitumen mixing plant
Type | LB500 | LB750 | LB1000 | LB1500 | LB2000 | LB2500 | LB3000 | LB4000 |
Rated production | 30-40t/h | 50-60t/h | 60-80t/h | 90-120t/h | 120-160 t/h | 160-200 t/h | 200-240 t/h | 280-320 t/h |
Cold aggregate hopper | 4×6m3 | 4×6m3 | 4×9m3 | 4×9m3 | 5×11m3 | 5×11m3 | 5×11m3 | 5×11m3 |
Dry cylinder | 1.1m×4.2m | 1.3m×5m | 1.5m×6m | 1.8m×7m | 2.2m×8m | 2.35m×9m | 2.5m×10m | 2.8m×11m |
Bag dust-remover | CNM156 | CNM240 | CNM357 | CNM476 | CNM654 | CNM832 | CNM1012 | CNM1308 |
Emission standard | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 | 50mg/nm3 |
Vibrating screen | 4 layers | 4 layers | 4 layers | 4 layers | 5 layers | 5 layers | 5 layers | 5 layers |
Hot aggregate container | 12t | 12t | 26t | 26t | 5/40t | 40t | 80t | 100t |
Mixing kettle capacity | 500kg | 750kg | 1000kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
Mixing cycle | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
Mineral powder tank volume | 30t | 30t | 26+36t | 26+36t | 30+43t | 30+43t | 50+35t | 60+35t |
Asphalt tank volume | 30000L | 30000L | 50000L | 50000L | 2×50000L | 2×50000L | 3×50000L | 4×50000L |
Heat conduction oil stove | 200,000 kcol/h | 200,000 kcol/h | 300,000 kcol/h | 300,000 kcol/h | 500,000 kcol/h | 500,000 kcol/h | 800,000 kcol/h | 1,000,000 kcol/h |
End-product container volume | 50t | 50t | 90t | 90t | 110t | 110t | 200t | 200t |
Pictures of asphalt bitumen mixing plant

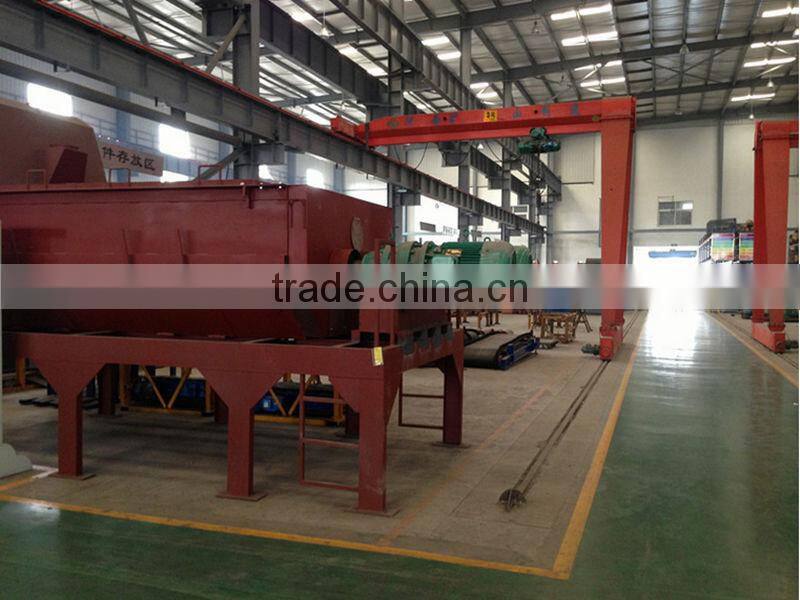

Our factory of asphalt bitumen mixing plant

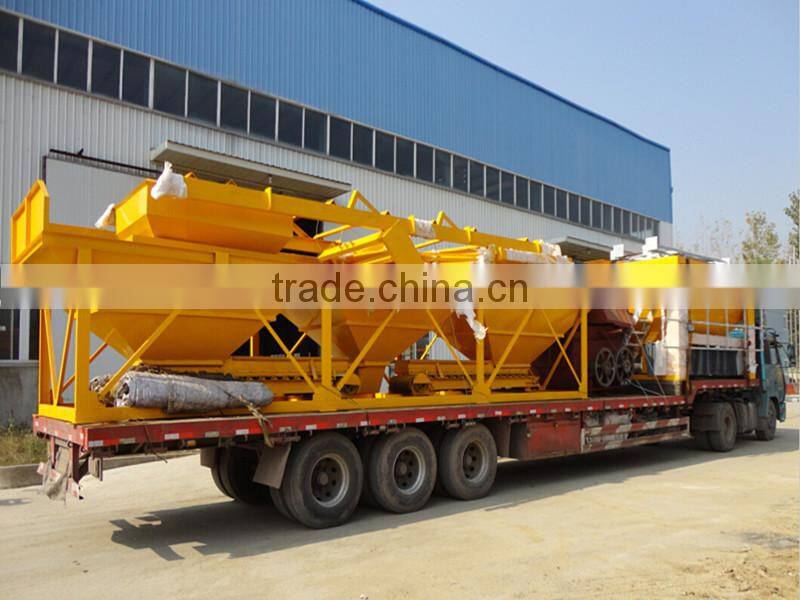

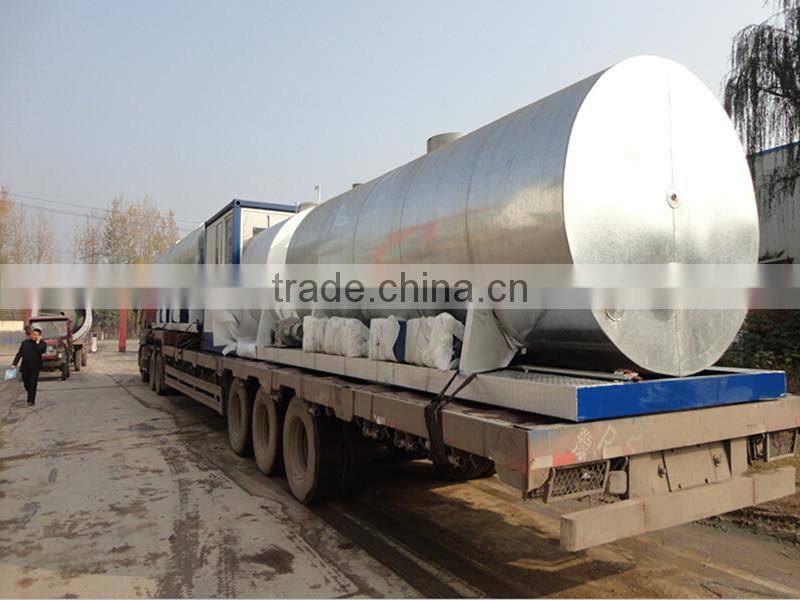

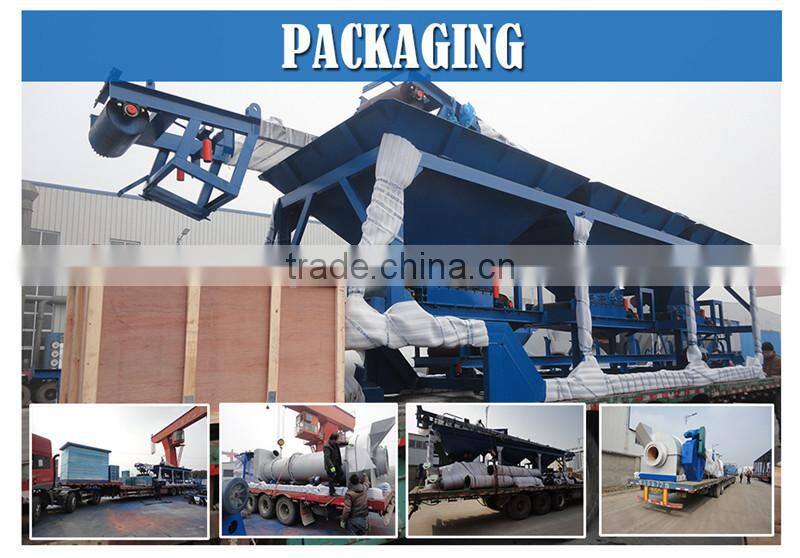

Packing of asphalt bitumen mixing plant
