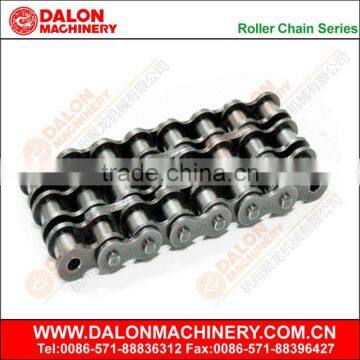

A series triple-strand roller chain and bushing chain
USD $1 - $300
/ Piece
100 Pieces(Min.Order)
- 10 Ton / Tons per Month
- SHANGHAI
- T/T L/C D/P D/A
You May Like
Product Details
| Standard or Nonstandard | Standard | Type | Other, Roller Chain, 08A-3,10A-3,12A-3... | |
| Material | Other, Alloy, Alloy | Tensile Strength | Ultimate tensile strength:10.5-1530.9/min | |
| Place of Origin | Zhejiang, China | Brand Name | DALON | |
| Model Number | Roller Chain, Roller Chain |
Product Description
Specifications
A series triple-strand roller chain and bushing chain1)Roller Chain:Alloy
2)QS:DIN / JIS / GB
3)QM:ISO 9001:2000
Product Description
Roller Chain
A series triple-strand roller chain and bushing chain
We always focus on quality as you are .....
| DIN/ISO CHAIN NO. | ANSI CHAIN NO. | PITCH | ROLLER DIAMETER | WIDTH BETWEEN INNER PLATES | PIN DIAMETER | PIN LENGTH | INNER PLATE DEPTH | PLATE THICKNESS | TRANSVERSE PITCH | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | |
| p | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Pt | Q min | Qa | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | ||
| *04C-3 | *25-3 | 6.35 | 3.3 | 3.18 | 2.31 | 21.0 | 21.5 | 6.00 | 0.80 | 6.40 | 10.5 | 12.6 |
| *06C-3 | *35-3 | 9.525 | 5.08 | 4.68 | 3.58 | 32.8 | 33.7 | 9.00 | 1.30 | 10.13 | 23.7 | 28.6 |
| 08A-3 | 40-3 | 12.700 | 7.92 | 7.85 | 3.96 | 45.6 | 47.0 | 12.00 | 1.50 | 14.38 | 42.3 | 50.0 |
| 10A-3 | 50-3 | 15.875 | 10.16 | 9.40 | 5.08 | 57.4 | 59.1 | 15.09 | 2.03 | 18.11 | 66.6 | 77.8 |
| 12A-3 | 60-3 | 19.05 | 11.91 | 12.57 | 5.94 | 71.5 | 73.2 | 18.00 | 2.42 | 22.78 | 95.4 | 111.1 |
Our Services
We can produce roller chain,leaf chain,motorcycle chain and so on...
In addition to the existing product specifications, we also can produce according to the drawings provided by customers.
Packaging & Shipping
Packing:plastic bag/carton box/wooden case
Shipping:by sea
FAQ
We accept L/C D/P T/T.
Company Information
Facility Overvierw:
DALON MACHINERY CO.,LIMITED
Top Choice of Industrual solution......
Add: #403-405 ZeZhu Mansion, No.368 HuShu Road (S),
Hangzhou,Zhejiang Province,China 310006
Tel:+86-571-88836312 (8lines) ; +86-571-88365029 ; Fax: +86-571-88396427
