Magnetic Separator for recovery or remove iron ore series minerals

Magnetic separator & Iron ore processing plant is suitable for minerals for wet magnetic separator such as magnetite, magnetic pyrite, roasting ore, ilmenite.
Magnetic system of magnetic separator adopts high quality ferrite material or is compounded with rare earth and magnetic steel.

Average magnetic intensity on the surface of cylinder is 100~600 mT. According to the user’s need, magnetic system with many different kinds of surface intensity such as fair current, half reverse flow and counter flow can be provided. This magnetic separator has the characteristic of single structure, large capacity, easy operation and maintenance.

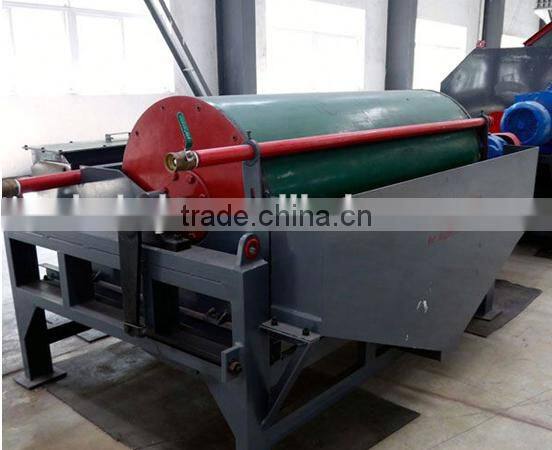

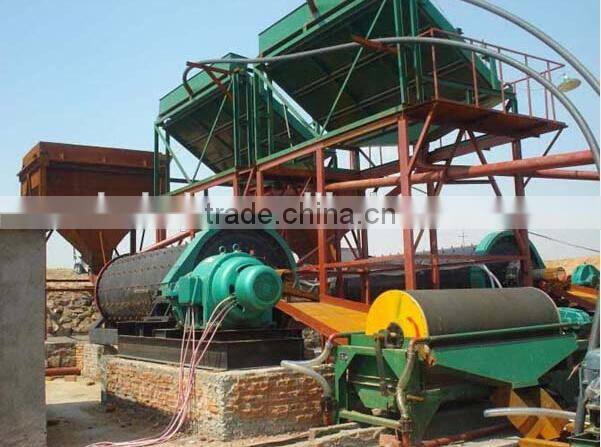

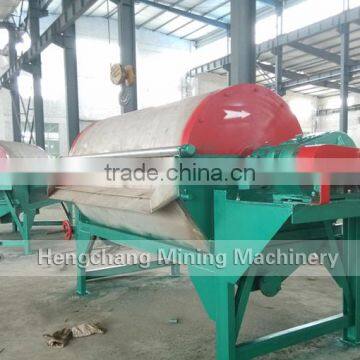

Wet permanent cylinder type magnetic separator & Iron ore processing plant:

Wet permanent cylinder type magnetic separator is a kind of magnetic separator commonly used in the mill of iron ore and it is suitable for separating strongly magnetic minerals.

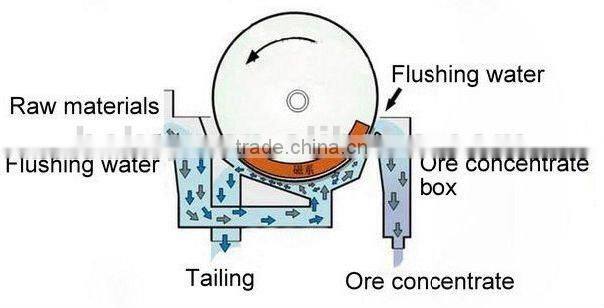

Wet permanent cylinder type magnetic separator can be divided into fair current, reverse flow and half reverse flow according to the trough structure.

Wet permanent cylinder type magnetic separator is also used as enrichment equipment before filtering to replace magnetic dewatering tank besides being used as separating equipment.

High intensity magnetic separator & Iron ore processing plant:
High intensity magnetic separator has many kinds and it is divided into wet and dry magnetic separator according to operational condition; electromagnetic and permanent magnetic separator according to magnetic source; disc-type, roll-type, flat ring type, vertical ring type and induction roll type magnetic separator according to the structure of equipment.

Wet magnetic separator
Wet magnetic separator is suitable for wet magnetic separator of minerals whose size is less than 3 mm such as magnetite, magnetic pyrite, roasting ore, ilmenite.

Technical Specifications of iron ore processing plant

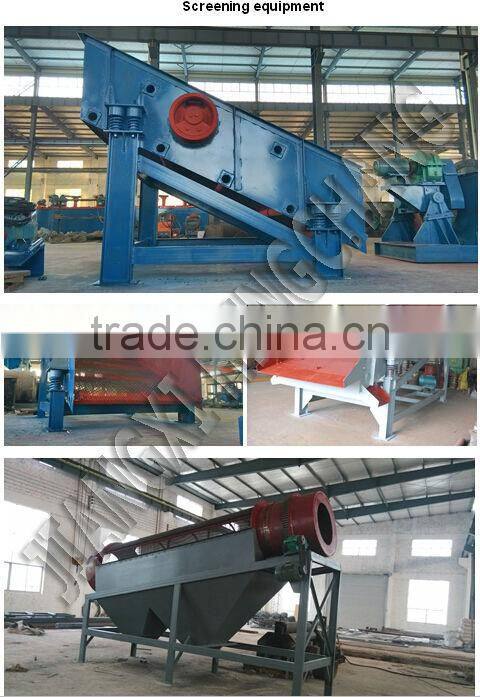

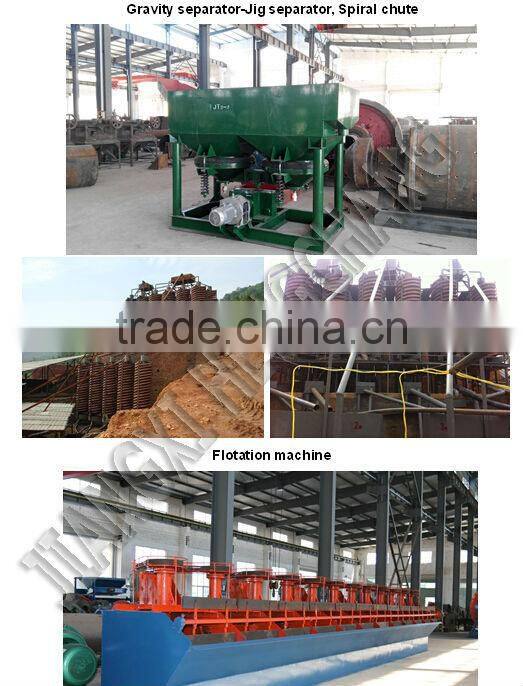

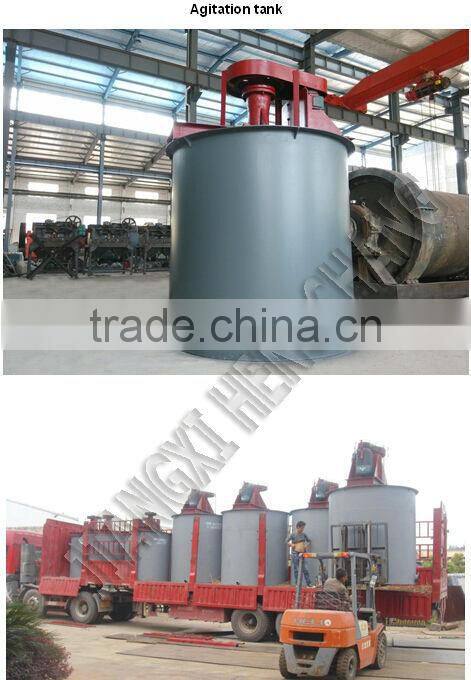

Iron ore processing plant in our workshop:

Hengchang honour

we are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,

1.what is the raw material do you want to process?
2.what is the capacity per hour do you need?
3.what is the raw material input size?
4.what is the output size of your product?

Request for Quotation

Of course, free live-chat is available and you can get help immediately.Or you can send me email .

You can get the price list and we will contact you within one business day.
