Multi Gravity Jig Separating Machine for Gold Ore Beneficiation
- Xiamen Guangzhou Shenzhen
- Credit Card
You May Like
-
Best Quality Electric Gravity Jig Machine for Sales
-
Gravity Sawtooth Wave Jig Machine for Antimony Primary Selection
-
Dual Chamber Pulsating Jig for Wolfram Concentrating
-
Africa Alluvial Gold Separation Equipment for Ghana Gold Mining Project
-
Hengchang New Designed Gravity Jig Separator for Gold, Coltan, Cassiterite,
-
China Manufacturer Manganese Separate Pulsating Chamber Jig Separator
Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | 98% | Place of Origin | Jiangxi, China | |
| Brand Name | Hengchang | Model Number | JT | |
| Voltage | 380V or as your request | Power(W) | 3kw | |
| Dimension(L*W*H) | Depend on the model | Weight | 320-4600kg | |
| Certification | ISO9001:2008, CE, SGS | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

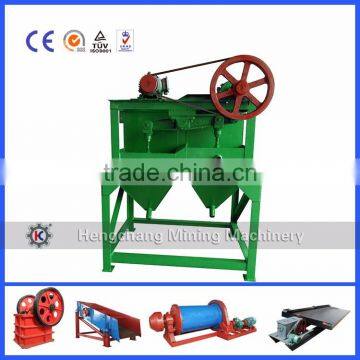

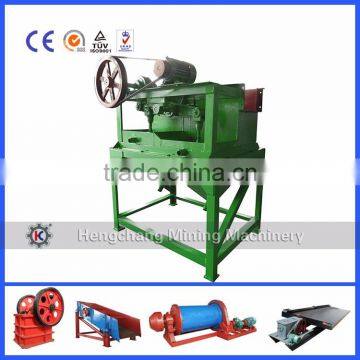

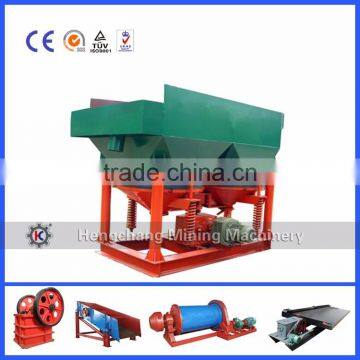

Multi gravity jig separating machine for gold ore beneficiation
Multi gravity jig introduction.
Jig machine is widely used in gravity concentration of tin, tungsten, placer gold, hematite ore, manganese, titanium, antimony, lead, tantalum, niobium and other minerals.
It belongs to deep trough separation operations(gravity jig equipment), using water as processing media, it depends on the difference of specific gravity between the minerals select and gangue to separate mine, the stroke and time of stroke is adjustable depend on different specific gravity of minerals.
Multi gravity jig working principle.
Sawtooth wave jig is revised and manufactured, based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve----produced by sawtooth wave jig----is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.
Multi gravity jig application.
This jig machine is a kind of gravity jig separator for gold and other mineral materials concentration. It can be widely used to select Tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other minerals.
There are many applications where the jig machine of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.
| Model | Area | Feeding size | Water added | Water pressure | Capacity | Motor power | Dimension(mm) | Weight(kg) |
| JT0.57-1 | 0.57m2 | 0-6mm | 1-3m³/t | ≥0.05Mpa | 1-2.5t/h | 1.5kw | 1550*780*1530 | 610 |
| JT1-1 | 1.04m2 | 0-10mm | 1-3m³/t | ≥0.05Mpa | 2-4t/h | 2.2kw | 2270*1110*1890 | 900 |
| JT2-2 | 2.28m2 | 0-10mm | 1-3m³/t | ≥0.05Mpa | 4-8t/h | 3kw | 3225*1550*2050 | 1640 |
| JT3-1 | 3.3m2 | 0-10mm | 1-3m³/t | ≥0.05Mpa | 6-10t/h | 5.5kw | 3180*2000*3030 | 3260 |
| JT4-2 | 4.33m2 | 0-30mm | 1-2m³/t | ≥0.05Mpa | 10-15t/h | 7.5kw | 3600*1850*2600 | 4600 |
| JT5-2 | 4.86m2 | 0-10mm | 1-3m³/t | ≥0.05Mpa | 10-15t/h | 7.5kw | 3600*2000*2600 | 4500 |
Jiangxi Hengchang Mining Machinery Manufacturing Co.,Ltd. is engaged in the mineral processing equipment research,development ,design and production for many years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation.
And mainly the manufacture of the products like as shaking table, flotation equipment, crushing equipment, magnetic separator, screening equipment, classifying equipment, agitation tank, feeding equipment, gravity separation equipment, wet separation equipment, spiral chute, saw-tooth wave jig and diaphragm jig, grinding equipment, ball mill, slurry pump, centrifugal pump, conveying equipment.
