Product Details
| Condition | New | Type | Jaw Crusher | |
| Application | Mining, Construction | Motor Type | AC Motor | |
| Power(W) | 5.5-110 kw | Capacity(t/h) | 1-350 t/h | |
| Place of Origin | Jiangxi, China | Brand Name | Hengchang | |
| Model Number | PE | Dimension(L*W*H) | Depend on the model | |
| Weight | 1.2-55 ton | Certification | ISO9001:2008, CE, SGS | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot sale high quality used granite crusher machine for sale
Used granite crusher machine for sale introduction.
Jaw crushers are used extensively throughout the world by the aggregate, mining and recycle industries. Their large physical size and rectangular feed opening enable them to receive a larger feed size than most other types of crushers. Rugged construction, simplicity of design and the ability to crush most types of material, including hard abrasive stone, make them ideally suited for use as the primary crusher within a crushing circuit.
Used granite crusher machine for sale working principle.

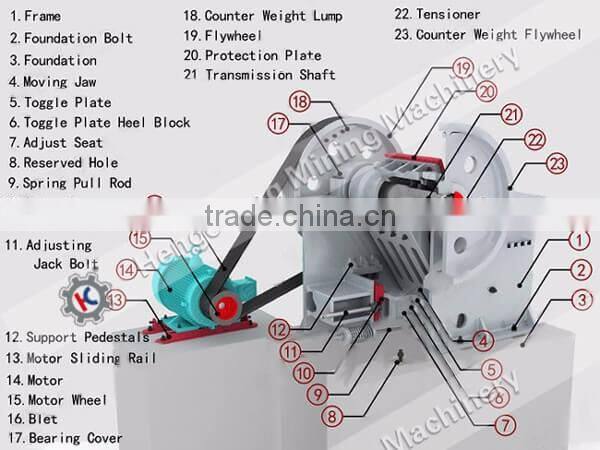

Jaw crusher consists of frame, eccentric shaft, belt wheel, flywheel, movable jaw, side guard plate, toggle plate, toggle backseat, gap adjusting screw, returning spring, fixed jaw plate and movable jaw plate. Toggle plate is also used to guarantee the security. Jaw crusher uses electric motor as the motive power. Eccentric shaft is driven by triangle belt and genea wheel, which makes movable jaw make reciprocating motion according to the desired trajectory. Then, materials in crushing chamber (consists of fixed jaw plate, movable jaw plate and edge plate) are crushed and the finished materials are discharged from discharging hole.
Used granite crusher machine for sale application.
Jaw crusher is widely used in the works of mine, smelting, building materials, road, railway, irrigation,chemical industry etc.
The crusher is applicable for the rough and medium crushing of rocks and ores with a compressive strength less than 320MPA. It is the preferred equipment of secondary crushing.
| Model | Max. Feeding Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power (kw) | Overall Dimensions (mm) | Weight (t) |
| PE150×250 | 125 | 10-40 | 1-3 | 5.5 | 896×745×935 | 0.8 |
| PE250×400 | 200 | 20-60 | 5-20 | 15 | 1150×1275×1240 | 2.8 |
| PE400×600 | 350 | 40-100 | 15-60 | 30 | 1700×1732×1653 | 6.5 |
| PE500×750 | 425 | 50-100 | 50-100 | 55 | 2035×1921×2000 | 10.3 |
| PE600×900 | 480 | 65-160 | 60-130 | 75 | 2290×2206×2370 | 16.5 |
| PE750×1060 | 630 | 80-140 | 80-180 | 110 | 2620×2302×3110 | 29 |
| PE900×1200 | 750 | 95-165 | 140-260 | 110 | 3789×2826×3025 | 54.5 |
| PE1000×1200 | 850 | 195-265 | 315-550 | 110 | 3335×3182×3025 | 57 |
| PE1200×1500 | 1020 | 150-300 | 400-800 | 160-220 | 4200×3750×3820 | 100.9 |
| PEX250×750 | 210 | 25-60 | 10-40 | 22 | 1667×1545×1020 | 5 |
| PEX250×1000 | 210 | 25-60 | 15-50 | 30 | 1550×1964×1380 | 6.5 |
| PEX250×1200 | 210 | 25-60 | 20-60 | 37 | 1560×2104×1415 | 7.7 |

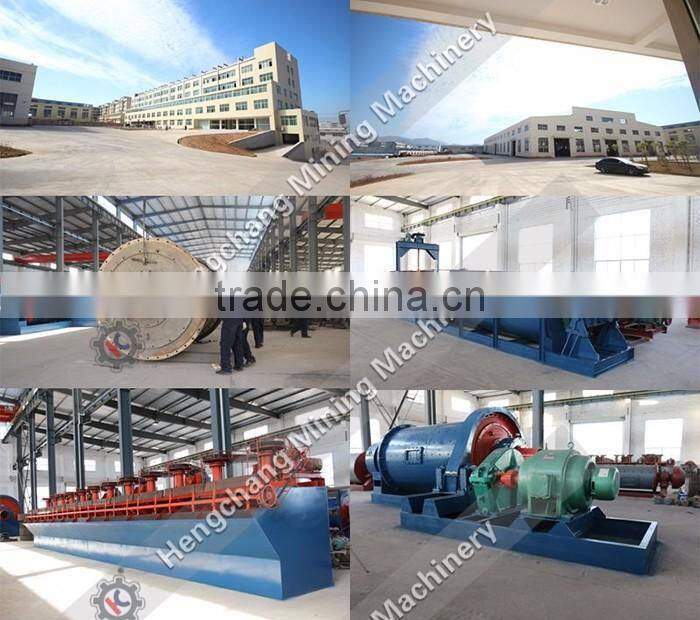

Jiangxi Hengchang Mining Machinery Manufacturing Co.,Ltd. is engaged in the mineral processing equipment research,development ,design and production for many years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation.
And mainly the manufacture of the products like as shaking table, flotation equipment, crushing equipment, magnetic separator, screening equipment, classifying equipment, agitation tank, feeding equipment, gravity separation equipment, wet separation equipment, spiral chute, saw-tooth wave jig and diaphragm jig, grinding equipment, ball mill, slurry pump, centrifugal pump, conveying equipment.
