Rubber Belt Conveyor Price
- Qingdao China
- T/T
You May Like
Product Details
| Condition | New | Type | Vertical Conveyor | |
| Material | Other, Carbon steel | Material Feature | Heat Resistant | |
| Structure | Belt Conveyor | Load Capacity | depends on the type | |
| Place of Origin | Shandong, China | Brand Name | Xinhai | |
| Model Number | DJ | Voltage | depend on the model | |
| Power(W) | depend on the model | Dimension(L*W*H) | depend on the model | |
| Certification | ISO 9001, CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Belt Conveyor1.Large conveying capacity
2.Convenient operation
3.Widely applied
4.Long service life
1.Belt Conveyor with high inclination angle and waved guard side
Product advantages
1.Large conveying capacity, high conveying efficiency
2.Reasonable price, reliable quality
3.Convenient operation
4.Widely applied
5.Long operating life

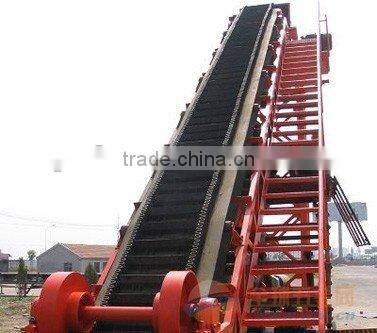

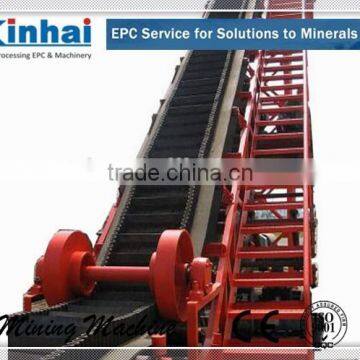

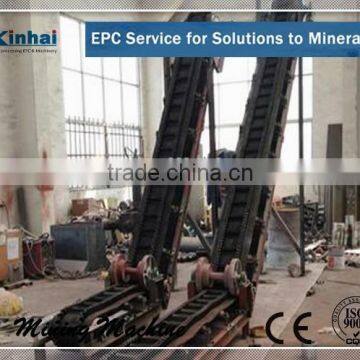

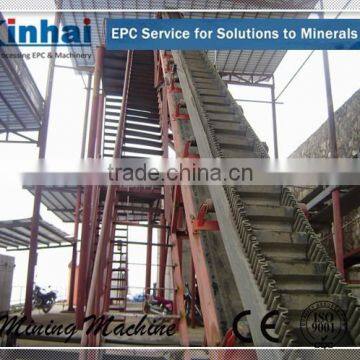

Belt conveyor with High inclination angle and waved guard side — Product feature
Using corrugate belt instead of normal belt is the most distinguishing character of this conveyor. It has large conveying angle, and the conveying obliquity is 0° -90°, it takes mall area, saves the investment and civil charges.
Belt conveyor with High inclination angle and waved guard side — Product application
It is widely used in coal, building materials, grain, chemical industry, electricity department, underground mining engineering, strip mining, huge automatic ship discharging etc.
Belt conveyor with High inclination angle and waved guard side — Product principle
Its structure and work principle are the same with general belt conveyor. Therefore, its main parts can be also used in general belt conveyor.
Belt conveyor with High inclination angle and waved guard side — Technology parameter
| item | Width of the belt (mm) | Height of guard side (mm) | Conveying inclination angel 30° | Conveying inclination angel 45° | Conveying inclination angel 60° | Conveying inclination angel 90° |
| model | Conveying amount(m³/h) | Conveying amount (m³/h) | Conveying amount (m³/h) | Conveying amount (m³/h) | ||
| DJ50-8 | 500 | 80 | 46 | 35 | 25 | 13 |
| DJ50-12 | 120 | 71 | 57 | 40 | 21 | |
| DJ65-12 | 650 | 120 | 104 | 83 | 58 | 31 |
| DJ65-16 | 160 | 120 | 97 | 69 | 37 | |
| DJ80-12 | 800 | 120 | 128 | 102 | 72 | 38 |
| DJ80-16 | 160 | 157 | 127 | 90 | 48 | |
| DJ80-20 | 200 | 195 | 157 | 112 | 60 | |
| DJ80-24 | 240 | 235 | 195 | 142 | 76 | |
| DJ100-12 | 1000 | 120 | 172 | 137 | 96 | 51 |
| DJ100-16 | 160 | 216 | 157 | 124 | 66 | |
| DJ100-20 | 200 | 267 | 216 | 153 | 82 | |
| DJ100-24 | 240 | 327 | 271 | 197 | 106 | |
| DJ120-16 | 1200 | 160 | 275 | 222 | 158 | 85 |
| DJ120-20 | 200 | 331 | 267 | 190 | 102 | |
| DJ120-24 | 240 | 419 | 347 | 253 | 136 | |
| DJ120-30 | 300 | 466 | 384 | 278 | 149 | |
| DJ140-20 | 1400 | 200 | 395 | 318 | 226 | 121 |
| DL140-24 | 240 | 500 | 414 | 302 | 162 | |
| DJ140-30 | 300 | 564 | 465 | 337 | 180 | |
| DJ140-40 | 400 | 794 | 680 | 524 | 281 |
2. reversible belt conveyor
Product advantages
1.High capacity
2.Low energy consumption
3.Convenient operation
4.Widely applied
5.Long operating life
Reversible belt conveyor — Product feature
Reversible belt conveyor can be drove by both sides, so that two-way operation can be realized.
Reversible belt conveyor — Product application
It is widely used in coal, building materials, grain, chemical industry, electricity department, underground mining engineering, strip mining, huge automatic ship discharging etc.
Reversible belt conveyor — Product principle
Its structure and work principle are the same with general belt conveyor. Therefore, its main parts can be also used in general belt conveyor.
Reversible belt conveyor — Technology parameter
Width of conveyor | Bulk density | Length of conveyor | Belt speed | Running speed | gauge | Type of rail | No. of belt layers | Diameter of the electric roller | L×W×H | W at every 3m increased |
500 | ≤2.5 | 6~60 | 2.5 | 0.294 | 900 | 18 | Decided by the customer | 500 | (3265+L)×1300×1080 | 367 |
650 | 1060 | (3265+L)×1490×1080 | 378 | |||||||
800 | 1440 | (3265+L)×1670×1210 | 439 | |||||||
1000 | 1640 | 630 | (4000+L)×1870×1240 | 598 | ||||||
1200 | 1850 | (4000+L)×2080×1400 | 698 | |||||||
1400 | 2050 | 800 | (4000+L)×2280×1500 | 754 |
Group Introduction
Xinhai Group founded in 1993 has grown into the industry group involving mineral processing, wearable rubber, mining investment and LFC Machinery after twenty years development. We have been always committed to providing customers with professional, perfect, efficient equipment and solutions. The whole solution we provide for you with the core of reliable & efficient mineral processing schemes and environmental-protection & energy-saving tailings dry stacking, makes us stand up in every EPC bid.
How To Contact Us?
Send your Inquiry Details in the Below for free sample,Click "Send" Now.
Contact Us
- Shandong Xinhai Mining Technology & Equipment Inc.
- Contact nameFeifei Liu Chat Now
- Phone0086-535-6999907,6302098
- AddressNo.188 Xinhai Street,Fushan District, Yantai, Shandong
