Home > Products > flotation cell,flotation equipment > China Supplier Tungsten ore flotation cell , Tungsten ore flotation cell for sale

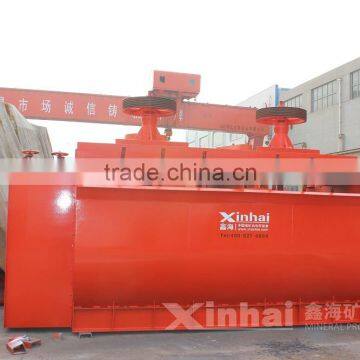

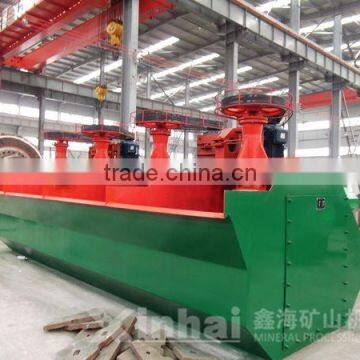

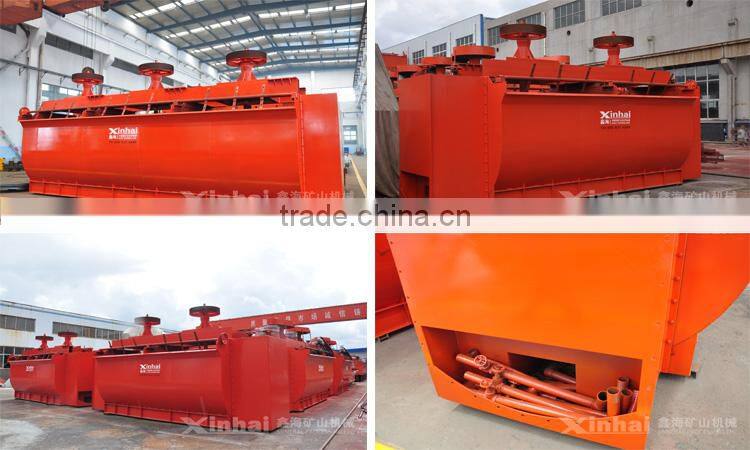

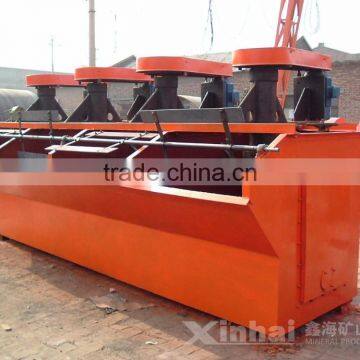

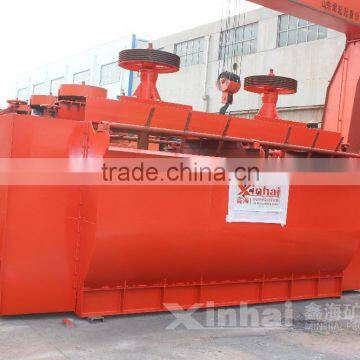

China Supplier Tungsten ore flotation cell , Tungsten ore flotation cell for sale

FOB Price

USD $1,000 - $5,000 / Set

1 Set(Min.Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Flotation Separator
Production Capacity	0.2~20	Place of Origin	Shandong, China
Brand Name	Xinhai	Model Number	SF
Voltage	depend on the model	Power(W)	depend on the model
Dimension(LWH)	depend on the model	Weight	470kg~9823kg
Certification	ISO 9001, CE	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

China Supplier Tungsten ore flotation cell , Tungsten ore flotation cell for sale

Our flotation machine can be used for many mineral grinding,such as gold ore,copper ore,iron ore and zinc ore and so on. When you find xinhai , you find the best mining machinery manufacturers. What you need is what we do.

Introduction

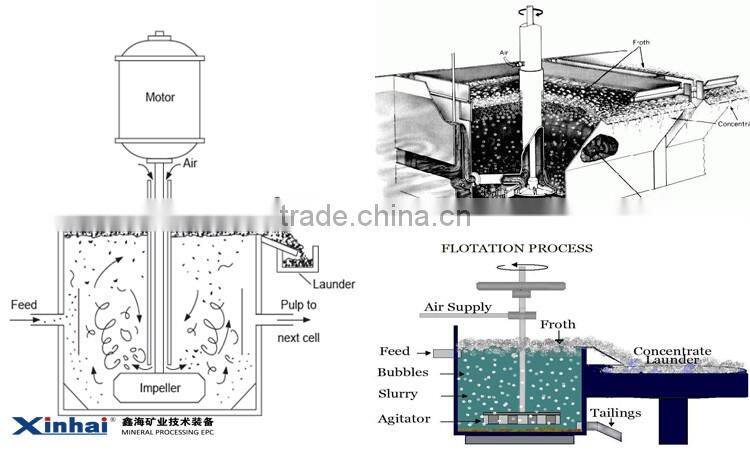

l Mechanical agitating, self air- inflation and self slurry absorbing.

l Constitute a flotation unit with JJF flotation cell to be the absorbing tank of each process.

Product Application

Tungsten ore flotation cell —Application

l It can be widely used in the beneficiation of non ferrous metals, black metals and nonmetals.

l It is suitable for the roughing and scavenging of the large and middle dressing plants.

Technology parameter

Tungsten ore flotation cell — Technical Parameters

Model	Effective volume (m³)	Capacity (m³/min)	Impeller diameter (mm)	Impeller rotating speed (r.p.m)	Agitating motor power (kw)	Scraper motor power (kw)	Single tank weight (kg)
SF-0.37	0.37	0.2-0.4	300	352-442	1.5	0.55	470
SF-0.7	0.7	0.3-1.0	350	336	3	1.1	970
SF-1.2	1.2	0.6-1.2	450	312	5.5	1.1	1400
SF-2.8	2.8	1.5-3.5	550	280	11	1.5	2120
SF-4	4	2-4	650	235	15	1.5	2600
SF-6	6	3-6	760	191	30	2.2	3000
SF-8	8	4-8	760	191	30	1.5	4292
SF-16	16	5-16	850	169-193	45	1.5	7415
SF-20	20	5-20	730	186	30×2	1.5	9823

Case

Kush Clients Consulting Mineral Processing

Clients of Kush project paid a special visit to Xinhai on Jan 18, 2014, for detailed communication with the Xinhai technicians. They made an estimate of the size , investment as well as earnings of the mill plant. During this meeting, based on rich experience of mineral processing and mill plant, Xinhai technicians wined the clients trusts for answering clients questions.

Kush Gold Mineral Processing Test

After the contract was signed, Clients posted to Xinhai two packages of samples, totally weight 400kg. Xinhai Mineral Processing Institute provided comprehensive mineral processing test after precious test.

The mineral processing test made an analysis to the gold content which is 4.31g/t, thus Xinhai technicians decided to recovery gold directly through the solution of CIP cyaniding, which including grinding the raw ore to 88.0% -200mush,and using lime as alkali, then adding sodium cyanide, agitating then leaching.The pulp density can reach 40%, 4kg/t of slime, 2kg/t sodium cyanide, the leaching rate of gold can get 91.45% which is perfectly good. While it was worth mentioning that the Institute noticed that if adding gravity separation, the recovery rate will not notably improved while increased the mineral processing cost. For the benefits of the customers, Xinhai technicians suggested cyaniding directly, while the customers firmly believed that with the deepen exploiting, the gold grade can increase to 8g/t, and considering finding large particles around the mine, technicians decided to adopt the solution of gravity separation + cyaniding the tailings after gravity separation.

Mine Design

Mine design, an vital part of Xinhai mineral processing EPC, was in charge of Xinhai Mining Design Institute with Class A Certification. For better suiting the actual situation of the project, technicians of the Mining Design Institute made field survey to the surroundings such as terrains, waters and power supply, then designed the construction drawing elaborately and gave 3D simulation based on the processing flowchart and the equipment selection mine processing test provided.

Installation & Commissioning

After the Equipment manufacturing and purchasing, the perfect packaging and delivery system can guarantee the security service.

Xinhai Installation & Commissioning Operation Center Project No.1 was in charge of as well as full participation the field installation & commissioning. On the one hand, they supervised the construction site to inspect any problems, on the other hand , they optimized the production and management process to improve interests for customers.

Xinhai Group

Xinhai mining was established in 1993.And was the pioneer of China beneficiation industry.Our company could provide mining machine more than 600,and have the most equipment in China.At present,Xinhai business includes Mineral Processing EPC,Wear-Resistant Rubber,LFC Machinery,and Mining Investment.

this is our factory and our office building.

this is our laboratory and laboratory data.

Our customers come from all over the world, such as Xinhai EPC project ,Africa Mail 800t/d gold; Xinhai Transformation Project, Indonesia PT.NEM Gold Mine as so on. We have a lot of successful cases in America, Russia and Africa .Also we have Zimbabwe Office,Sudan Office and Indonesia Office. We will give you the best service.

this is our project in Africa.

Q:Hi, are you mining machinery manufacturer?

A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.

Q:which country have your products been exported?

A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.

Q:Can you do mineral processing test?

A:Yes, not only can do it in your country, also can back to our company

How To Contact Us?

You can tell us the kind of ore that you want to process and the capacity that you need. We will give you the most suitable models.

Send your Inquiry Details in the Below forfree sample,Click "Send" Now.
