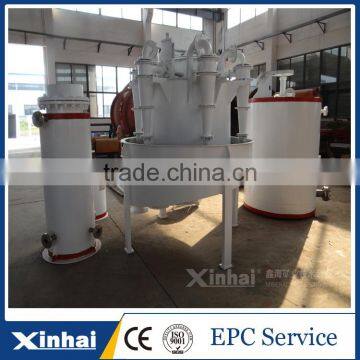

China Professional Supplier Hydraulic Cyclone Unit Separator Machine for Mineral Processing
- Qingdao China
- T/T
You May Like
-
High Weir Mining Spiral Classification Machine Cost / Spiral Concentrator
-
High Weir Spiral Classification Equipment / Spiral Concentrator
-
China Professional Supplier Mining Hydraulic Cyclone for sale
-
Low Cost Mining Hydrocyclone Machine For Dewatering
-
China Mining Hydraulic Separator , Energy Saving Hydrocyclone
-
China Mining Cyclone Separator Machine For Dewatering
Product Details
| Type | Other, Hydraulic Separator | |||
| Production Capacity | 98% | Place of Origin | Shandong, China | |
| Brand Name | Xinhai | Model Number | XH | |
| Voltage | depend on the model | Power(W) | depend on the model | |
| Dimension(L*W*H) | depend on the model | Weight | depend on the model | |
| Certification | ISO 9001, CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China Professional Supplier Hydraulic Cyclone Unit Separator Machine for Mineral Processing
Our Hydraulic Cyclone machine has been sold to all over the world.You can give us your requirement,then we will give you a perfect project.
Hydraulic Cyclone —Product advantages
Hydraulic Cyclone —Parameter
Specification | Processing capacity (m3/h) | Classifying particle size (mm) | Overflow opening Diameter (mm) | Sediment opening diameter | Feeding pressure |
150 | 10-23 | 25-74 | 30-50 | 8-22 | 0.060-0.15 |
200 | 17-38 | 28-80 | 40-65 | 16-32 | 0.060-0.15 |
250 | 24-53 | 30-82 | 65-100 | 16-40 | 0.060-0.15 |
300 | 40-100 | 36-90 | 65-120 | 20-40 | 0.060-0.15 |
350 | 56-118 | 40-100 | 80-120 | 30-70 | 0.060-0.15 |
400 | 74-157 | 42-105 | 90-135 | 30-70 | 0.060-0.15 |
450 | 90-192 | 44-110 | 100-150 | 30-70 | 0.060-0.15 |
500 | 128-300 | 50-115 | 130-220 | 35-100 | 0.060-0.15 |
550 | 155-368 | 52-120 | 140-240 | 35-100 | 0.060-0.15 |
610 | 200-468 | 57-125 | 160-260 | 65-110 | 0.060-0.15 |
660 | 237-524 | 60-130 | 180-280 | 80-150 | 0.060-0.15 |
710 | 285-580 | 63-135 | 200-280 | 120-160 | 0.060-0.15 |
Hydraulic Cyclone — Feature
1 The 3-dimension snail-shaped feeding structure makes it possible to feed minerals in circumferential and axial directions. This design can tremendously improve classification efficiency in three ways------first of all, after entering the hydraulic cyclone, minerals avert from being disturbed by turbulent flows occurring near overflow pipes; secondly, the speed of coarse ore cyclone is accelerated towards underflow outlet; thirdly, minerals avoid swift rotating.2 The square pipe-type feeding model enables ores to get closer to the inner wall of hydraulic cyclone, which contributes to the lightest abrasion of feeding ores and the strongest divergent forces of ores. Consequently, abrasion of feeding box is reduced to the lowest level.
3 The unique adjustment device of wedge-shaped feeding opening can quickly adjust the feeding size, so classification efficiency is hugely raised.
4 The wedge-shaped adjusting valve constitutes a replaceable part for the inlet pipe, so there is no need to change the whole liner of hydraulic cyclone.
5 The premium abrasion performance of liner made from Xinhai abrasion-resistant rubber can considerably reduce using cost, and maintain the inner dimension and shape of hydraulic cyclone, so the stable classification efficiency is achievable.
6 Our company can also provide molding abrasion-resistant rubber liner and cold bonding abrasion-resistant rubber liner, the service life of which is extraordinarily long.
7 The appropriative software helps to choose the right mode accurately and quickly.
Hydraulic Cyclone — Application
Xinhai XC I hydraulic cyclone, which is manufactured by Xinhai mining machinery Co. Ltd via CFD (computational fluid dynamics ) model and 3-D analysis model, is able to catch up and transcend the world advanced level. It is perfectly applicable to classification and dehydration. XC I hydraulic cyclone is provided in three versions: 10°,15°,20°
Xinhai mining was established in 1993.Adhering to the core concept of technology achievement future and technology as the first productivity, Xinhai pays close attention to technological innovation, and has built 6 professional technology institutes invested heavily to purchase advanced instruments and professional equipment. Xinhai has been the company with the most complete facilities and powerful technology in the domestic processing enterprises..
these are our factory and our office.
Technical personnel is doing experiments
Xinhai mining is committed to providing customers with professional, perfect and efficient products and services.Xinhai has projects all over the word,Indonesia,Africa,Armenia,Inner Mongolia Hailai,etc.Including EPC Project and many equipment.
these are our proect and our customers
Q:Hi, are you mining machinery manufacturer?
A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.
Q:which country have your products been exported?
A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.
Q:Can you do mineral processing test?
A:Yes, not only can do it in your country, also can back to our company
