Home > Products > Coal and Charcoal Machinery > Cheap Price firewood sawdust briquette machine line
Cheap Price firewood sawdust briquette machine line
- 100 Set / Sets per Month
- qingdao port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Widely application wood briquette machine line
-
Hot sale biomass briquette machine line price
-
Good sale rice husk briquette machine line
-
Easy operation China factory supply charcoal briquette extruder machine
-
Good quality charcoal briquette press production line
-
Big profile environmental charcoal production line
Product Details
| Condition | New | Production Capacity | 2-3t/24h | |
| Motor Type | AC Motor | Power(W) | 15kw | |
| Place of Origin | Henan, China | Brand Name | Taizy | |
| Model Number | TZY | Dimension(L*W*H) | 2983mm*2293mm*2112mm | |
| Certification | ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Cheap price firewood sawdust briquette machine line
Contact person:Winnie
Skype:taizy2019
QQ:1799244239
Mobile/whatsapp/wechat:0086-18703616826
1.crush machine of firewood sawdust briquette machine line
Crushing the raw materials into size no bigger than 5mm.
Model | WDFQ-320 | WDFQ-350 | WDFQ-360 | WDFQ-400 | WDFQ-420 | WDFQ-500 | WDFQ-600 |
Voltage
| 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz | 380v/50hz |
Power
| 2.2kw | 3kw | 5.5kw | 7.5kw | 11kw | 15kw | 22kw |
Blade number
| 16pcs | 16pcs | 16pcs | 16pcs | 16pcs | 24pcs | 24pcs |
Weight
| 76kg | 85kg | 90kg | 120kg | 140kg | 200kg | 500kg |
Dimension
| 0.7*0.5*0.6m | 0.7*0.6*0.7m | 0.7*0.6*0.8m | 0.9*0.7*1m | 0.95*0.8*1.1m | 1.1*0.9*1.2m | 1.9*1.2*1.9m |
2. Dryer machine of firewood sawdust briquette machine line
Dry the crushed materials to 8-12%
Model | WDHG-600 | WDHG-800 |
Diameter(mm) | 600 | 800 |
Length (m) | 6 m | 8m |
Thickness(mm) | 6 | 8 |
Volume (m3) | 1.7-2.3 | 4-5 |
Lifting blade | Elevated lifting type, Cross lifting type, fan-shaped lifting type, sleeve lifting type, etc. | |
Laying gradient | 3°-5° | |
Fill rate | 8-20% | |
Material | Heat-resistant steel, stainless steel, cast steel, carbon steel, etc. | |
Usage temperature | 180-800C° | |
Evaporation intensity | 5-120 kg/m3.h | |
Heat method | Downstream and upstream, direct heat transfer, indirect heat transfer, compound heat transfer | |
Heat source | Coal, oil, electricity, gas, steam, biofuels | |
Rotate speed | 3-8 r/min | |
Transmission power | 3 kw | 4 kw |
Corollary equipment | Conveyor equipment, hot blast stove, dust removal equipment, etc. | |
3. briquette machine of firewood sawdust briquette machine line
The raw material density is generally about 130kg/m3, and the density of
formed charcoal bar is 1100-1400kg/m3.
Model No. | ZYB- 1 |
Productivity kg/day | 2200 |
Motor power (kw) | 15kw |
Electrical Heater Motor power(kw) | 3*1.5kw |
Weight(kg) | 1000kg |
Size outside | 1650*600*1260 |

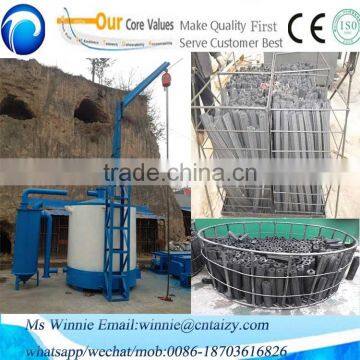

4. Curbonization furnace of firewood sawdust briquette machine line
The Carbonization Stove, also called Environmental Continuous Gasification Equipment,
is used to convert the wood or agr waste materials containing carbon to charcoal powder under
high temperature.
Model | Weight | Capacity | Diemension |
TZY-3 | 2t | 180kg | 2900*1400*2000mm |
TZY-4 | 2.5t | 300kg | 3500×1500×2000mm |
4t | 600kg | 4000×1500×2000mm | |
5t | 1000-1200kg | 5000×1600×2200mm |
The full line parameter of firewood sawdust briquette machine line
