TN Competetive Price Charcoal Briquette Packing Machine for sale

As per your needs of    TN Competetive Price Charcoal Briquette Packing Machine for sale ( diameter: 6/8mm, length:20~30mm, density:1.1~1.3 ) by 5~50kginto Open/Exposure mouth bag, and sealing the bag after filling, with the capacity 2~8 tons per hour, and need hopper volume 1.5CBM, we suggest you the TN-CS-Series model together with the engineer that can best fulfill your needs. And we will match it with the sealing machine for closing the bag.

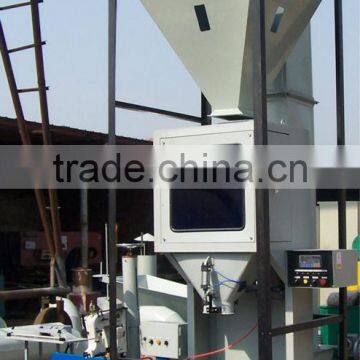

  TN Competetive Price Charcoal Briquette Packing Machine for sale    is controlled by computerized instrument and easy to operate & manage. For example, packing 25kg, you just need to input it 25kg as the net weight and place the ready bag to the outlet of the machine, then the automatic clamping device will clamp the bag close to the body of outlet. And the machine will automatic weighing and filling 25kg, then, automatic unloading the bag. Then, our matching belt conveyor will transport the filled bags to the sealing machine for sealing the bag top.

Main Structures: Automatic filling system; Automatic weighing balance; Automatic belt conveyor; Automatic sealing machine; Electric control cabinet

Flowing Process:

Manual Bag placing →Automatic filling →Automatic weighing →Automatic bag conveyer →Automatic bag sealing

Technical Parameter TN-CS-15 Semi-Auto    TN Competetive Price Charcoal Briquette Packing Machine for sale

          Weighing Range(kg): 5~15

          Precisions : ±0.2%FS

          Output: 2~4 tons/hour

          Power(kw) : 3.3

          Source(V/ Hz): 380/220 50/60, 3 Phase

          Air Source(Mpa)       : 0.4~0.6

          Reference Dimension (mm): 1900×900×3200

Technical Parameter TN-CS-25 Semi-Auto   TN Competetive Price Charcoal Briquette Packing Machine for sale

          Weighing Range(kg): 5~25

          Precisions : ±0.2%FS

          Output: 2~5 tons/hour

          Power(kw) : 3.3

          Source(V/ Hz): 380/220 50/60, 3 Phase

          Air Source(Mpa)       : 0.4~0.6

          Reference Dimension (mm): 1900×900×3200

Technical Parameter TN-CS-50 Semi-Auto    TN Competetive Price Charcoal Briquette Packing Machine for sale

          Weighing Range(kg): 20~50

          Precisions : ±0.2%FS

          Output: 2~8 tons/hour

          Power(kw) : 3.3

          Source(V/ Hz): 380/220 50/60, 3 Phase

          Air Source(Mpa)       : 0.4~0.6

          Reference Dimension (mm): 1900×900×3200

Technical Parameter Model: TN-DSC-MT

         Precision: ±0.2%FS

         Output:  1~10 tons/hour

         Weighing scope(kg/bag): 1000

         Power Supply: 220/380Va.c 50Hz. 3Phase

         Power Dissipation (kw): 6.5

         Compressed Air (MPa): 0.4~0.6

         Compressed Air Consume(m3/h): 0.5
