Home > Products > Wood Chipper > Popular chipper shredder drum wood chipper

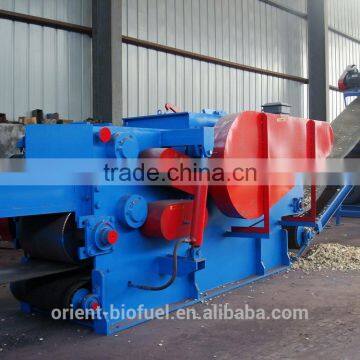

Popular chipper shredder drum wood chipper

FOB Price

US$ 10,000 - 80,000 / Set

1 Set(Min. Order)

Port Shanghai port China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	TN-ORIENT	Model Number	BX Series
Voltage	380V	Power(W)	30-260KW
Dimension(LWH)	Different on different model	Weight	Different on different model
Certification	CE approved	Warranty	1 year
After-sales Service Provided	Overseas service center available

Product Description

Popular chipper shredder drum wood chipper is a special equipment for machining chips. It is widely used in the preparation period of raw material in particle board industry, fiber board industry, paper making industry and especially in chip manufacturing.Altered drum chipper also can be used in making chips for fuel of electricity industry and furnace.

Application of Popular chipper shredder drum wood chipper:

Raw material for Popular chipper shredder drum wood chipper can be wood logs, stump, branches, shrub, bamboo, wood waste of cutting trees,cotton branches and other fiber stem without wood.This machine can’t cut the following raw material very equal: raw material with too large diameter (exceeding 85% dimension of the in-feed opening),too small diameter (less than 20mm),too short(less than 250mm),too thin (less than 5mm) and very hard,irregular material.

Feature of Popular chipper shredder drum wood chipper:

Popular chipper shredder drum wood chipper is designed of reasonable structure,high efficiency.It can be used for wide range of raw material and easily to operate.So it is the best choice for large wood chips factories and MDF factories.

Technical Parameters

Over 16 years experience fair price top quality wood chipper hammer mill for sale	G315	G316	G318
Main driven motor (kw)	45	55	110
Feeding roller motor(kw)	5.5	7.0	9.5
Capacity(m₃/h)	3-6	8-12	15-20
Number of rotor knives(pcs)	2-4	2-4	2-4
Rotor diameter(mm)	500	600	800
Feeder size(mm)	400*180	540*220	680*280
Rotor speed(rpm)	630	592	620
Feed speed(m/min)	30-40	30-40	35-40
chipped size(mm)	10-3510-355-10	10-3510-355-10	10-3510-355-10
Net Weight(kg)	3200	4200	7150
Outsize(mm)	170017001150	210021001250	237024001500

Hammer mill

Model	Output capacity(t/h)	Power(kw)	Spare parts	Finished size(mm)
MFSP50*60	1-3	30/40	Hammer mill, Screen and Bearings	2-8mm up to mesh diameter
MFSP70*80	2-4	40/60
MFSP112*60	3-5	60/90
MFSP112*70	4-7	90/120
MFSP112*80	5-9	120/160
MFSP120*80	6-12	160/220

Our Company

- Established in 1997, exported the first set of Wood Pellet Machine to Korea in 2000; 16 years experience in the biomass pelletizing field.

- Adwarded High-Tech Enterprise of Shandong Province.

-Covering > 170,000 square meters (260 acres), and has 97,000 square meters modern production workshop.

- Hold over 25 national unique patents

- Certificated by CE, ISO9001, SGS

- 60% market share in the domestics; exported over 50 countries.

- Specialized in the turn-key project in the biomass pelletizing field from Debarking - Chipping - Crushing - Drying - Pelletizing - Cooling and Sieve - Packing - Dedusting - Heating Supplying.

- Branches Companies as following: Jining Tiannong Machine Co., Ltd.

Jining Naijiu Mould Co., Ltd
Xuzhou Orient Industry Co., Ltd.
Weishan Hengjie Furnace Technology Co.
Weishan Tianong Science and Technology Co.
T.Y.A. Robot Science and Technology Co.
ToPellet Machinery GmbH
