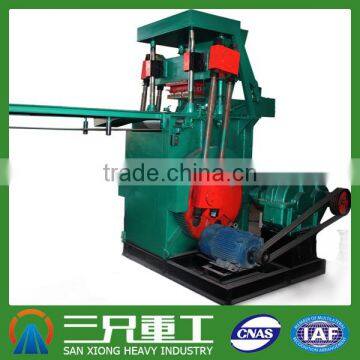

Automatic simple small used red brick making machine
- Qingdao/Lianyun port/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Automatic simple small cement fly ash brick manufacturing machine
-
Automatic simple small cement brick making machine price in india
-
Low failure rate efficiency clay brick making machine price
-
High quality clc brick making machine
-
High quality clay brick making machine
-
automatic red brick making machine for sale
Product Details
| Condition | New | Type | Other, egg cement concrete brick laying machines | |
| Brick Raw Material | Other, Stone powder,sand,fiy ash,cement,concrete etc. | Processing | Brick Production Line | |
| Method | Other, Pressure brick machine | Automatic | Yes | |
| Capacity | 4000pcs/h | Place of Origin | Henan, China | |
| Brand Name | SANXIONG | Model Number | MZJ600-3 | |
| Voltage | 380V | Power | 37KW | |
| Dimension(L*W*H) | 2560*2450*3000 | Certification | iso9001:2000 | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Forced feeding device.2.Exhaust device.
3.Electric mold heat
4.High efficiency
5.ISO,CE
1.Main technology parameters
Technical Parameters | |
Productivity | standard brick(240*115*53mm):4000ps/h |
hollow brick(240*115*90mm):3400ps/h | |
paving brick(200*100*60mm):4000ps/h | |
Cycle time | 3-4s |
Host machine power | 37kw |
Host machine weight | 7.5t |
Dimension(L*W*H) | 2560*2450*3000mm |
Quantity/mould | 3 ps/mould |
Forming pressure | 600ton |
Bricks specifications | 240*115*53,240*115*90,240*190*90,240*240*90etc |
Power supply | Three-phase AC380V 50Hz |
Worker needs | 5-7 |
2.The advantage of unburnt brick making machine
1.With high pressure: MZJ600-3 fly brick making machine with pressure for 600 Ton |
2.Low investetment: our brick making machine is no need fire no need autoclave no need pallets and less labor cost. |
3.Low failure rate: our fly brick making machine making way is: shacking together with mechanical pressure. so that the bricks are high density, intensity height are heated by electricity, with non sticky characteristics, can reducing failure rate. In addition,the brick was made just now can carry a adult male,and can be can be directly stacked. |
4.Superior quality material: Machine body material is used 40#steel with 5 mm thickness; the material of mould is 40chromium; Using antifriction bearing device ,effectively reduce Galling and also with low noise. |
5.Certificates: Our machine have passed the ISO 9001:2000 certificate, and also hold notional patent. we are the only one who can producing the high pressure brick making machine. |
6.The raw material is widespread: slag ,coal slag, construction waste, fly ash cement sand etc. we can making the raw materials formula for you, so that it is workable and also cost saving. |
7.The capacity of our machine: MZJ600-3 with capacity is 3200-4000bricks/hr . |
8.After sale service: our warranty period of main component is 1 year. we can also provide the engineers to overseas for technical guidance |
9.Types of bricks:Lawn brick, standard brick,and so on. |
4.The brick making machine production line
5.The details of the machine
We supply standard packaging and will be delivery in two weeks after deposit.
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of build factory, feasibility analysis for brick machine production line ```)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3)24 hours service
(4) Welcome to visit our factory and production line anytime
(5) Introduce the company file, product categories and production process.
(6) OEM design
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side.
(2) Set up, fix,and operate
(3) Will not train the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time,keep well communication with each other.
Henan Sanxiong Heavy Industry Co., Ltd was built in 1984. Having been specialized in the development, research and production of new building materials equipment for almost 38 years.We have successfully installed and debugged whole brick press machine production lines, automatic hydraulic block making machine production lines and clay brick making machine production lines for customers at home and abroad. Our products have achieved ISO9001:2000 certificate, National patent products, also won a series of national and local technical award certificates. Our products have been sold to Middle East, Russia, Australia, South Asia, South Africa, West Africa and other Areas. More information, please click here
1. Q: what is no burning brick making machine ?
A : No burning brick making machine is a term for brick machinery .It is different from the traditional kiln brick processing .It make bricks by pressure, no need fire.
2. Q: How to determine the quality of brick?
A: Beat the finished bricks by hand directly, the quality is great when there is the steel sound.
