High Output Waste Tyre Pyrolysis Fuel Oil Plant

high output waste tyre pyrolysis fuel oil plant

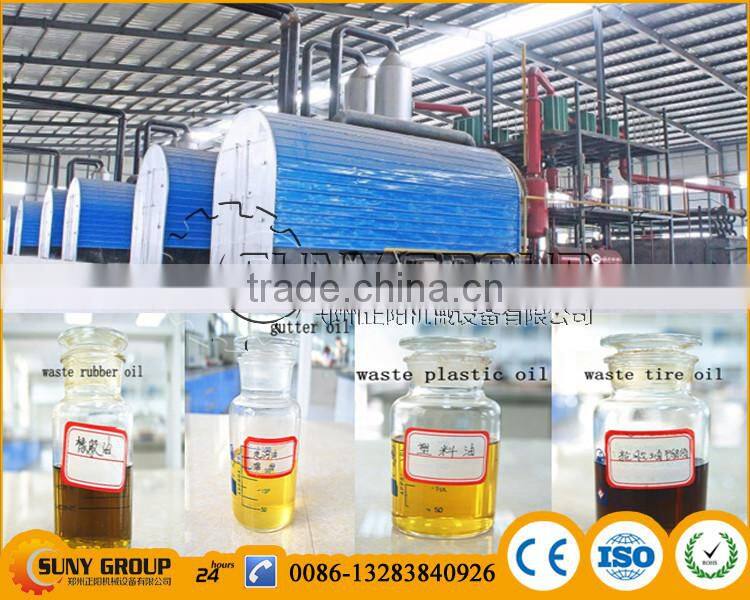

Product introduction of waste plastic ,waste rubber  oil refining plant

FIRST) parts of the    waste tyre pyrolysis fuel oil plant

1.Horizontal rotating reactor

2.Oil separator

3,Flue condenser

4.heavy oil storage tank

5.oil-water separator

6.water cooling system

7.water seal tank

8.pressure,temperature multipoint monitoring system

9.center electric control system

10.cooling system

11.Gas heating system(waste gas process system)

12.strong dust remove system(fit national standard)

13.waste water process system(Optional: oil waste water burner, solve the problem of water treatment system, to achieve zero discharge of waste liquid)

SECOND) The main equipment cover an area is a total of 150 square meters:

1.Horizontal rotating reactor                               about 30m2

2.Dust processing system                                  about 5m2

oling system                                           about 70-75 m2

4.oil separator                                              about 1.5m2

5.oil-water separator tank,heavy oil tank,water seal tank   about 5m2

6.waste water process system                              about 5m2

THIRD) The weight of equipment (28000KG)

1.heat pyrolysis process system       18000KG

oling system                       3000KG

3.strong dust remove system          2000KG

4.oil separator                         720KG

5.waste water process system

6..oil storage tank,water-oil separator tank,water seal tank   total about 800KG

FOURTH) Equipment model and technical parameters

1,Equipment model and technical parameters of      waste tyre pyrolysis fuel oil plant

If you want to know more about our machine,please contact me without any hesitation!
