New Model Bagasse Waste Briquette Making Machine Baggase Charcoal Kiln

 Description of New Model Bagasse Waste  Briquette Making Machine Baggase Charcoal Kiln

The sawdust briquette machine is used for briquette the sawdust or other biomass waste into briquettes, the briquettes can be further carbonized into charcoal, or be used as fuel directly for boiler etc.Diameter of the briquette can be 50mm,Als different capacity for your choice . You can choose it according to your need.

The Raw Material of New Model Bagasse Waste  Briquette Making Machine Baggase Charcoal Kiln

Any types of Agro-forestry waste Such as maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo saw dust, bagasse, wood chips, rice husk, coffee husk,coir pith, jute sticks, groundnut shells, Bamboo , wood , straw dust, Mustard stalk and cotton stalks etc.
1. Crushing the raw materials into dust or granules no bigger than 5mm.
2. Dry the crushed materials to 8-12% .

Working principle of the New Model Bagasse Waste  Briquette Making Machine Baggase Charcoal Kiln

The working principle of the wood sawdust charcoal briquette making machine is very simple, which just using the intrinsic attributes of the wood material, by spiral extruding under high temperature and pressure, wood element in wood material becomes plastic and makes the fine fiber combine, and at last stick solid plank fuel is formed.

 Spare Part of the New Model Bagasse Waste  Briquette Making Machine Baggase Charcoal Kiln

Propeller of the sawdust briquette machine  Our machine adopts a durable material (high hardness alloy steel) to make the shaft. We use a different process then what is normally used to make the propeller. The propeller is manufactured with a milling machine which guarantees that the distance between every screw is the same, and the angle of every screw is the same. And you can change the Propeller in about 5-8days.

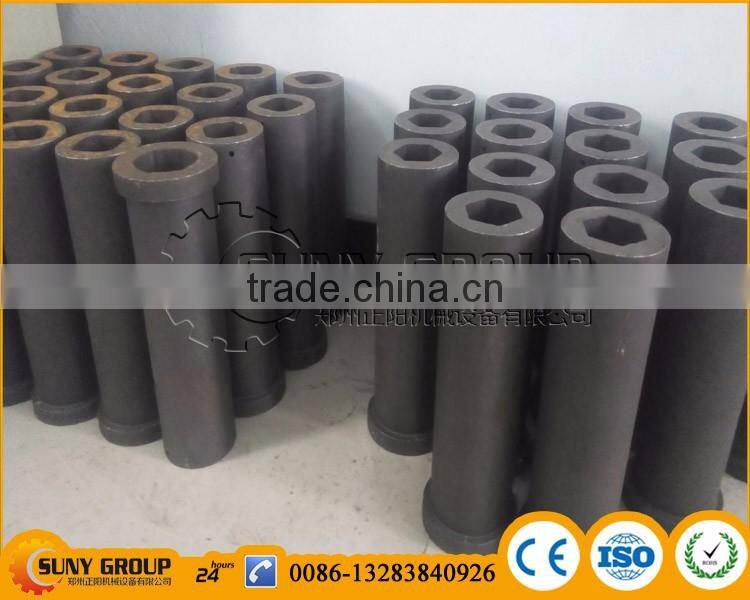

Shaping Mold of the sawdust briquette machine  The shaping mold can be used for 1-2 years.It is made from a whole steel bar through a water jet cutting system so that the inner face is smooth. Therefore, it’ll be easier to form and save energy. This is why the finished produces such as sawdust briquettes are smooth. It consists of two parts and you only need to change the key part when it is worn.
Heating ring of the sawdust briquette machine we adopted two heat collars which are made from thick copper wires and are ceramic inside.

 The New Model Bagasse Waste  Briquette Making Machine Baggase Charcoal Kiln Process:

1› Crushing the raw materials into size no bigger than 5mm.
(wood, wood branch, coconut shell, peanut shell, rice husk, sunflower husk).
2› Dry the crushed materials to 8-12%.
3› Pressing to raw material into briquette by putting the dried materials into briquette machine.

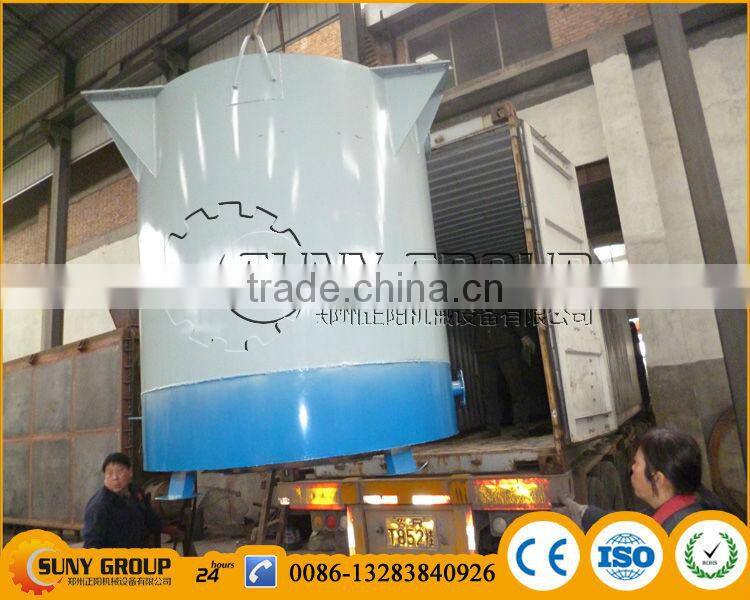

4› Put sawdust briquettes into the Carbonization Stove to change the sawdust briquettes into charcoal briquettes (final products, this step is for optional, if you do not need charcoal, no need to use this machine)
5› The shape of briquette can be square, hexagonal.

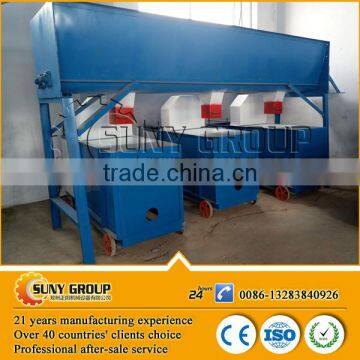

New Model Bagasse Waste  Briquette Making Machine Baggase Charcoal Kiln

Except the Biomass Bagasse Sawdust Coconut Husk Rice Husk Charcoal Briquette Making Machine, we also have related Crushing Machine, Drying Machine, Carbonize Furnace Machine , As long as we get to know your request, we can offer you most suitable solutions .

Customer Visiting our Facotry

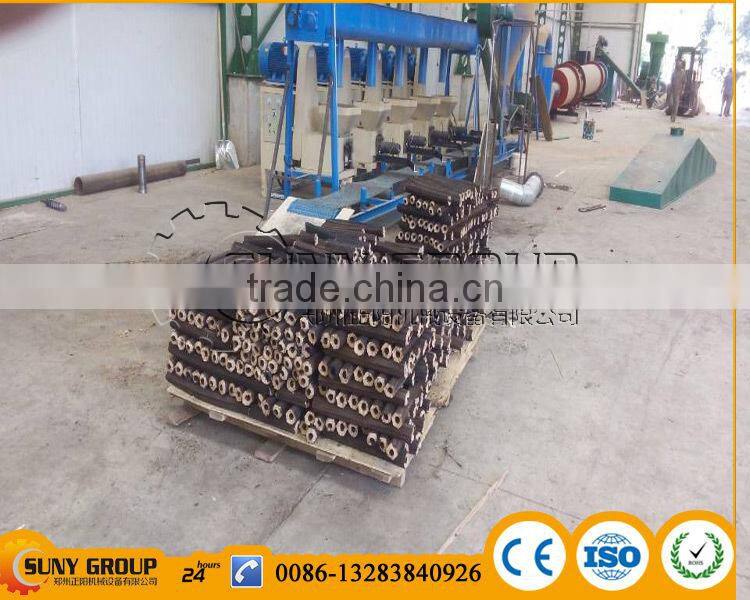

Sample Charcoal Picture

If you are interested in our New Model Bagasse Waste  Briquette Making Machine Baggase Charcoal Kiln machine, please feel free to contact us !
