 Product Data

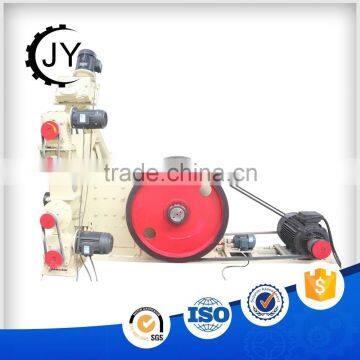

Product  Pictures  Show

Local Feature of the Equipment

Two level feeding screw conveyor, Briquette Punch Press  Briquette Punch Press

No. 1 Two way feeding conveyor, even feeding the material

No.2 inspection window let the user check the feeding conditions

No.3 Level two feeding conveyor, feeding the material and pre-compaction

All the feeding conveyor connect the motor with gear box

Two fly wheels, 850 Kg for each, turning speed is 272R/Min, this two wheels connect with the position, to produce a 300T punching force.

45Kw main motor drive the production system.

Cad Layout of the mechanical

Advantage

1.The whole machine is very stable, average capacity before first time fault is about 7000T.

2.Use special alloy steel making the die, small and light for changing, and the working life is about 300-400T  Bagasse Briquette Machine  Bagasse Briquette Machine

3.Use the converter technique, the feeding speed is adjustable, to reduce the energy use to maximize.

4.The shaft sleeve is designed as high-precision bearing bush, to increase the smoothness of turning and impact resistance of the main shaft, to solve the bearing easy broken problem for the pellet machine.

5.The machine has the force oiling system for the piston and the shaft, to increase the working life.

6.Wide material fitting, can use more material for produce.

7.Mechanical piston punching system works with three levels pre-press.

8.Multifunction machine can produce 6-80mm production by simply changing the die.

9.The energy consumption is very low, can continuous work, and low maintenance rate.

10.The requirement for the working is low to operate the equipment, just need one or two days training.

Detail

About the raw material

1.Plant straw, Foot shell, peanut straw(shell),rice huskpunching type briquette machine

2. Wood waste, sawdust ,branch,tree bark, forest residues  punching type briquette machine

3. Cotton shell(straw), scobs, coconut shellpunching type briquette machine  punching type briquette machine

Requirements for making the briquette

1. Size of raw materials: powder or no longer than 10mm

2. Moisture content of raw materials: 8%-15%

3. Raw materials can be the mixture of 2 or more than 2 kind’s different materials, they must be evenly mixed.

4. The production processing don't need any adhesive or chemicals.

Production Flow Chart

About service

1. We devote to all-round service of all products from production to maintenance.

2. Our professional service includes: free training, guidance, installation, and debugging.

3. After selling, we provide the warranty of one year.

4. If you have any problems, we will try our best to help you at the first time to solve it.

Accessory Equipment

Company Advantages

1. Specialized manufactures for whole set of charcoal briquette machine and the machine made charcoal briquette

2.Our product received good feedback from all the new and old customer by reliable quality, reasonable structure, stable performance, high output, energy conservation, environmental protection, simple operation, easy installation and maintenance.

If you are new for this business, we will help you:

Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
