400-1800kg/h Capacity Agricultural Wood Vacuum Rotating Cylinder Dryer

400-1800kg/h Capacity Agricultural Wood Vacuum Rotating Cylinder Dryer

Dear  Customer:

Welcome to our website and hope our products will make you satisfied .

We think creatively,design bravely,manufacture precisely and loyalty to

our customers. And we have our own  We can produce the products

according to customer requirements .

     Give us a negotiate chance will yield you a surprise.

                                               Yours

                                       JINGYAO

Product Data

Product  Pictures  Show

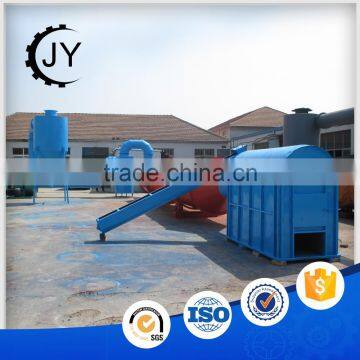

Conventional Dryer

1.The rotary dryer is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the material, which is handling by bringing it into direct contact with a heated gas.

2.The dryer is made up of a large, rotating cylindrical tube, usually supported by concrete columns or steel beams. The dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under gravity.

3.Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow).

4.The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated.

5.By maintaining a low gas velocity, very low particulate carryover occurs, improving product yield.Rotary dryer is suitable to dry metallic and nonmetallic mineral, clay in cement industrial and coal slime in coal mine, etc.rotary dryer rotary dryer rotary dryer

Detail conventional dryer     conventional dryer   conventional dryer   conventional dryer   conventional dryer

Flow Diagram

Three-pass Dryer

1.Screw conveyor send the 30-40% moisture saw dust into the first layer of the rotary dryer, to realize the downstream drying, the saw dust realize the heat exchange by spiraled in the first layer, to pre-evaporation of the moisture.

2.When the saw dust moved to the end of the first layer, will drop into second layer reverse move, the saw dust will be move up and drop down by the shoveling plate, and keep repeating during then whole trip in the second layer, the saw dust can fully absorb the heat coming from the inner and outer pipe, also prolong the drying time, the saw dust will get the best drying state.

3.The saw dust which is reached the moisture requirement will be goes through the dryer very fast by with the hot wind, the others saw dust because it’s not reached the requirement, it’s too heavy can be moved by the hot air, will still move in the third layer, and goes into the drying tank, by the hot air working, to be dried, and finish the whole drying process.three-pass dryer  three-pass dryer   three-pass dryer   three-pass dryer   three-pass dryer   three-pass dryer  three-pass dryer

Detail

Features

1.Minimum installation

2.Rugged, durable construction

3.Low maintenance

4.Improved efficiency with dust and heat containment

5.Drive system minimizes vibration

6.Drive components standard, off-the-shelf items

7.Automatic control with adaptable programming

Production Flow Chart


After-sale Service of Our Rotary Dryer

1. Guarantee period is one year , since the date of purchasing.

2. 24- hour technical supports

3. Design product according to the customers requirement.

4. We provide available price.

Accessory Equipment

Company Advantages

1. Specialized manufactures for whole set of charcoal briquette machine and the machine made charcoal briquette

2.Our product received good feedback from all the new and old customer by reliable quality, reasonable structure, stable performance, high output, energy conservation, environmental protection, simple operation, easy installation and maintenance.

If you are new for this business, we will help you:

Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
