Home > Products > chemical equipment > High Quality 5000L SUS304 Fermentation Reactor

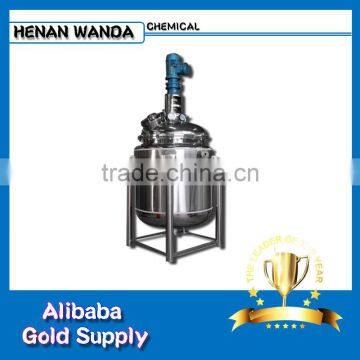

High Quality 5000L SUS304 Fermentation Reactor
- Shanghai or Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Type | Reaction Kettle | Place of Origin | Henan, China | |
| Brand Name | Wanda | Model Number | FY | |
| Voltage | 380v | Power(W) | 1.1-7.5kw | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High quality High quality 5000L SUS304 fermentation reactor
application:
The equipment is mainly for the production chains such as hydrolysis,neutralization,crystallization,distillation,evaporation and storage in the industries of medicine,chemical industry,food and light industy etc.The reaction kettles are made of SUS304,SUS321, SUS304L and SUS316L etc.Stainless steel material.The mixers are divided into anchor type,frame type,oar type and turbo type etc.The rotation mechanism can adopt cycloid pin gear reducer and stepless speed reducer.The sealing mechanism can adopt mechanical sealing.The heating and cooling can adopt jacket,semi-tube and coil structure etc.Structures.The heating methods are steam,electric heating and heat guiding oil to satisfy the technology requirements under different work environment such as anti-acid,anti-high-temperature,anti-abrasion and anti-corrosion.The design and manufacturing can be carried out according to the technology requirements of customers.
Main Technical Standards
model
| volume (L) | nominal diameter (mm) | nominal pressure in kettle (Mpa) | pressure in jacket (Mpa) | motor power (kw) | blending rotation speed (r/min) |
FY100 | 100 | 500 | 0.5 | 0.25-0.6 | 1.1 |
|
FY200 | 200 | 600 | 1.5 |
| ||
FY500 | 500 | 800 | 2.2 | 36 | ||
FY1000 | 1000 | 1000 | 4.0 | 36 | ||
FY1500 | 1500 | 1200 | 4.0 | 63 | ||
FY2000 | 2000 | 1200 | 4.0 | 85 | ||
FY2500 | 2500 | 1400 | 5.5 | 130 | ||
FY3000 | 3000 | 1400 | 5.5 | 130 | ||
FY4000 | 4000 | 1500 | 5.5 | 180 | ||
FY5000 | 5000 | 1600 | 7.5 |
