hot-sell mining equipment mining jigging separator

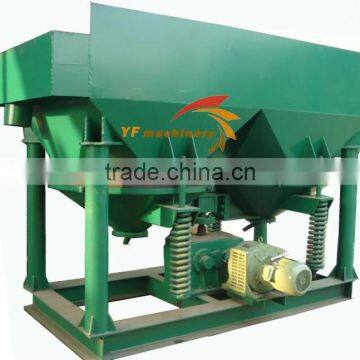

Introduction of Jig Separator

Our tungten ore concentration jig separator is a new type of energy saving and high efficient gravity separation equipment and

developed based on the traditional Sine Wave Jig. The difference between Saw-tooth Wave Ladder Jig and Sine Wave Jig is that the pulsation curve for jigging is saw-tooth wave shape, with speedy upward flow and slow downward flow. Bed layer is elevated integrally and slowly dropped with a long effective loose time, allowing significant increase of handling capacity for unit screen surface, decrease of lower limit of grain size recovery and large save of make-up water for undersize fraction.
Industrial tests carried our of Saw-tooth Wave Ladder Jig and Sine Wave Jig for comparison showed that the recovery rate for

operation of Saw-tooth Wave Ladder Jig is raised by Sn:3.01%, W:5.5%, Pb:1.63%, Zn:2.04%; The water consumption reduces 30%-40% with water consumption being decreased by 30-40%. The area reduces 1/3 and the stroke may adjust also.

Application of Jig Separator

Jigging machine is widely used in gravity concentration of tin, tungsten, placer gold, hematite ore, manganese, titanium,
antimony, lead, tantalum, niobium and other minerals.

Working Principle of Jig Separator

The pulsing curve of the traditional jig is sinusoidal waveform, the up and down speed of water flow and acting time produced by the movement of membrane are almost same, so it is unfavorable to loose of jig bed and layering of minerals based on special gravity, and thus affect separation ability and recovery rate. Saw-tooth wave is an energy economy gravity equipment that is developed and improved from traditional jig on the basis theory of jig bed layering.
Its jigging pulsating curve is similar to saw-tooth wave, which makes the up speed of water flow quicker than down speed of water flow, so it can improve looseness of jig bed and reduce suction action, which can lead to fully settlement of heavy particles in slurry, it highly improves separation ability and recovery rate. Stroke and frequency of stroke are adjustable.

Features and Benefits of Spiral Classifier

1. High capacity
2. High concentration ratio and high recovery
3. Fabricated with highest quality material
4. Easy to install, operate and maintain
5. The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
6. Saving water 30-40% than ordinary jig
7. The pulsation speed very easy adjusted by regulator
8. Suitable for roughing and desliming

Technical Parameters of Jig Separator

Why choose Yufeng Company

We are manufacturer in Zhengzhou, which serves as the largest base of Chinese industrial technology, and the busiest container port in the world. The competition in this city is severe, only companies with ending technology, stable workforce, and effective cost management could survive. With 25 years of efforts and innovation,our company is now a leading brand in China.

Affordable, high-quality machines. Our highly competitive price relies upon our ability to minimize our costs, of which our

competitors don’t.

1. We are factory(NOT Dealer)

2. We own our factory & Land (NOT Rent)

3. Staff reside in factory(Stable Workforce)

Producing high-quality and reliable machines is always our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost, instead we manufacture our machines to supply you the best need.

If you have any questions or want to learn about the machines, you are welcome to contact Linda.

....
