2014 New Lime Kiln Machinery

FOB Price

US$ 50,000 - 8,000,000 / Set

1 Set(Min. Order)

Port China port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Production Capacity	97%
Place of Origin	Henan, China	Brand Name	YUFENG
Model Number	JZQ750-1/UT2-110/PM650/ZS145-11/ZL130-14/ZSY500-28/JZS-81/JZTY71-4/YCT	Voltage	220v/380v/480v
Power(W)	50/163/157/28/22/15/30/55/90/190/315	Dimension(LWH)	avriable
Weight	53/75/34/80/130/167/237/263/280	Certification	ISO9001:2008
Warranty	2 years(except the easy-damaged parts)	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

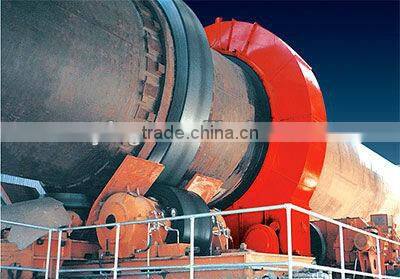

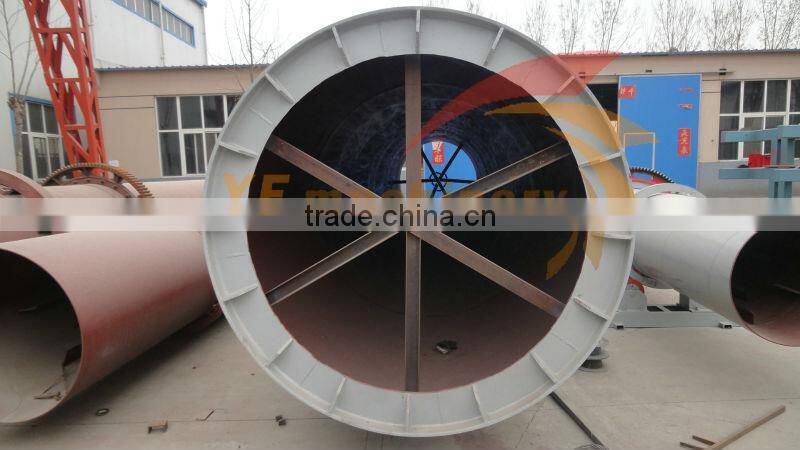

Rotary kiln refers to rotary calciner, belongs to the building materials device class. Rotary kiln according to different materials handled can be divided into cement kiln, metallurgy chemical kiln and lime kiln.

Cement kiln is mainly used for calcinating cement clinker, including dry process production cement kiln and wet process production cement kiln. Metallurgy chemical kiln is mainly used for metallurgy industry steel lean iron ore magnetized roasting, chromium and nickel ore oxidizing roasting, refractory plant roasting high aluminium vanadium and soil ore and aluminum plant roasting clinker, aluminum hydroxide, chemical chromium ore and chromium ore powder roasting and so on. Lime kiln (is activity lime kiln) is used for roasting activity lime in steel factory and ferroalloy factory and light burning dolomite.

Technical parameters of rotary kiln

Type	Technical data			Reduction drive		Main motor power			Block wheel form	Support quantity	Weight
Type	Speed r/min	Slope %	Power t/h	Type	Ratio	Type	Powder kw	Speed r/min	Block wheel form	Support quantity	Weight
Φ1.9/1.6x36	0.53-1.59	4	2.5-3	JZQ750-1	48.58	JZT-72-4	30	1200/400	Mechanical	3	53
Φ2.1/1.8x36	0.5-1.51	4	4	UT2-110	163.36	JZS-81	30/10	1410/470		3	75
Φ1.2x25	0.5-1.6	3		PM650	40.17	JZTY71-4	22	1200/120		3	34
Φ1.6x32	0.158-0.258	3		PM750	48.57	JZJY61-4	15	1200/120		3	46.82
Φ1.8x45	0.66-1.98	4	3.5	UT2-110	163.36	JZS-81	30/10	1410/470		3	80
Φ2.2x50	0.125-1.25	3.5	4	ZS145-11	157	YCT280-4A	30	1320/132		3	130.71
Φ2.5x50	0.516-1.549	3.5	5.5	ZS165-7	99.96	YCT355-4A	55	1320/440		3	167.5
Φ3x48	0.3309-3.309	3.5	35	ZL130-14	32.11	ZSN4-250-21B	90	1000/100		3	237
Φ3.2x50	0.398-3.975	3.5	50	ZL130-16	40.85	ZSN4-280-11B	190	1500/150		3	263
Φ3.3x52	0.391-3.91	3.5	50	ZSY500-28	27.707	ZSN4-315-082	190	1000/100		3	280.8
Φ4x60	0.396-3.96	3.5	104	ZSY630-35.5	34.601	ZSN4-355-092	315	1000/100	Hydraulic pressure	3	487.5
Φ4.2x60	0.4165-4.165	3.5	116	ZSY710-35.5	35.526	ZSN4-355-12	420	1000/100		3	576.1
Φ4.3x62	0.398-3.98	3.5	125	ZSY710-35.5	35.714	ZSN4-355-12	420	1000/100		3	598.5
Φ4.8x74	0.35-4	4	208	JH710C-SW305-40	42.226	ZSN4-400-092	630	1500/130		3	841

...
