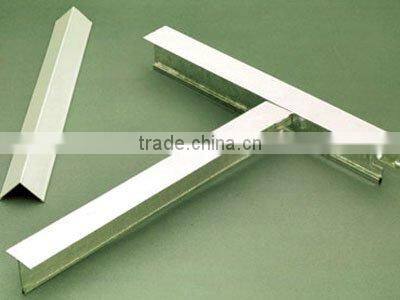

Light Steel Keel Production Line

Specifications

light steel keel production line

Production process:

Discharge feeder -- Leveling machine -- Automatic tracking punching device(PLC control) -- Rolling machine -- Orthotic devices --Automatic tracking cutting --Hydraulic system -- Electric control cabinet (PLC control)

Technique data:
1,Machine capacity:width≤200mm,
2,thickness0.6-1.2mm
3,Speed  line:15-30M/min
4,Total power: About 5.5kw
5,Occupy ground area:length15M X width2.5M

1.forming process

Auto-decoiler-guide-continual punching-rollforming-cutting to lengh-recoiler

2.equipment capacity

Punching speed:2.5-10m/min

Continual forming speed:0-20m/min

Steel material thickness:0.5-0.8mm

Materials request:Q235 cold rolled plate

Goods camber:<=1/m

3.the production line is automatic and the manual two operating mode,it can realize and subsection movement

4.equipment structure:

Equipment is consists of decoiler (1set) ,JF21-40 punch (1set), die, feeder (1set), guider (1set), mainframe (1set), follow cutting (1 set),cutting to lengh(1set),collection table(1set),electrical control etc.

5.each part main parameter:

Materials width:150mm

Material weight<1000kg

Material inner diameter:460-510mm

Material outer diameter <1200mm

Material max thickness: 0.5-0.8

Feeding time: less 250,can reach 90time/min

Total pawer:5.5kw

The diameter of the roller axis:40mm

Roll mould materal:Gcr15,quenching treatment :HRC58-62
