 Mini Round Hay Baler For Farm Tractor

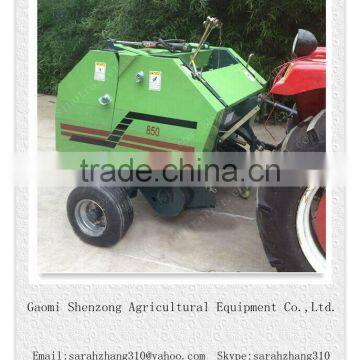

1.Product Show

2.Specification

• This machine with advanced design and structure, processing high quality round bales. CE certificate was passed in 2011.
• It is consist of main machine, pickup part, compress rolls, automatic binding hay bales, hydraulic pressure ejection system, three point linkage etc. It can move and work with a 15-90hp tractor by PTO shaft.
• The whole working program is successive, accurate and reliable, the bundled round grass bales compact outside and loose inside and has good air permeability.-
• The machine is suitable for baling of hay, grass, wheat, silage, alfalfa and other materials suac as straw etc.
• It can resist wind, rain and snow under open storage and is convenient for long-term storage and long distance transportation. this is a great sighificance to the prompt harverst of pasture in agricultural and pastoral areas, the effictive use of crop stalks as well as the disaster countering and livestock protection

• Model	SZHB-0850	SZHB-0870
  Bale size: dia.*width	φ50×70cm	φ61×70cm
  Dimension (L*W*H)	115*130*120cm	130*130*135cm
  Weight	425kg	465kg
  Pickup width	800mm	800mm
  Efficiency	3-6km/hour	3-6km/hour
  Capacity (bales per hour)	100-140 bales/hour	100-120 bales/hour
  Tire	4.0-8.0 or 16x6.5-8-4PR	4.0-8.0 or 16x6.5-8-4PR
  Match power	15-90hp tractor	15-90hp tractor
  PTO speed	540 rpm	540 rpm
  Safety alarm signal	have
  Light signal	have
  Auto twine binding system	have
  Hydraulic ejection system	have
  Certificate	CE EPA ISO
