Durable Quality Horizontal Animal Feed Mixer With Good Price

Double Crane Brand Horizontal Ribbon Poultry Feed Mixer Brief Introduction:

Horizontal ribbon feed mixer is a kinds of animal feed manufacturing machine for mixing of dry mash powder feed and feed additive,It is mainly used to mix the feed ingredients with other micro-ingredients such as vitamins, amino acids, trace elements,liquid material and other feed additives in the feed pellet production process.Ribbon poultry feed mixer has the advantage of high mixing efficiency, reasonable structure, compact layout, reliable performance and easy maintenance.

Main Characteristics of Double Crane Brand Horizontal Feed Mixer:
1) Material:Main parts of the mixer is made of carbon steel with high quality, high performance and long service life.
2) Structure: Horizontal tank , single shaft with dual spiral symmetry circle structure.
3) Discharge port: A large open port or full open port unload feed automatic,avoids residual;
4) Discharge way: pneumatic/electric/manual discharging port for discharging.
5) Liquid adding system:Can meet customer different demand to add oil adding pipelines or spray system.
6) Electric motor and Reducer:High quality electric motor low consumption and brand reducer in China,quality guarantee, good performance and long service life,lifetime after-sales service.

7)Mixing time and Mix CV:Double screw mixer can can make the material mixed with more high speed and uniformity in short time only 3-5 minutes per batch,3-5batch per hour.Mixing CV<5%.

Horizontal Ribbon Poultry Feed Mixer Main Model:

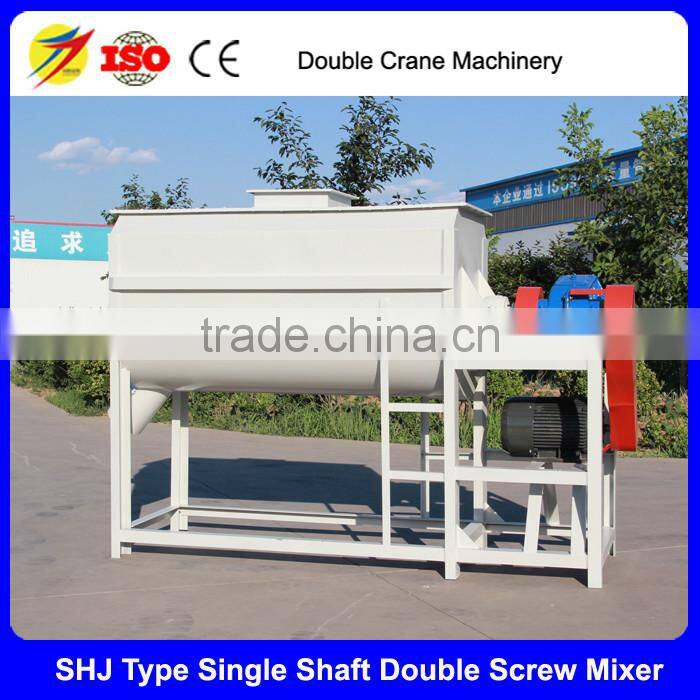

Horizontal Ribbon Poultry Feed Mixer Picture Show:

Related To Horizontal Ribbon Feed Hammer Mill And Mixer Main Model:

Ribbon feed mixer machine usually workes together with some feed crushers as a machine set.

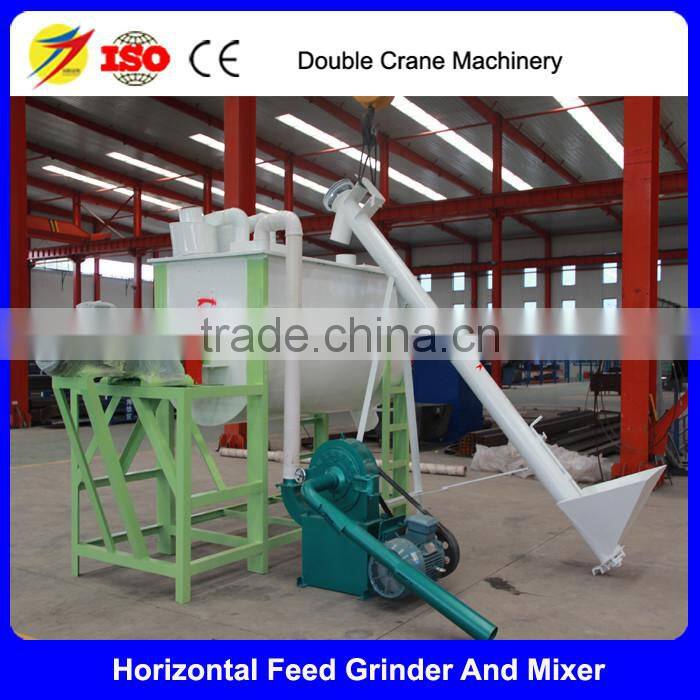

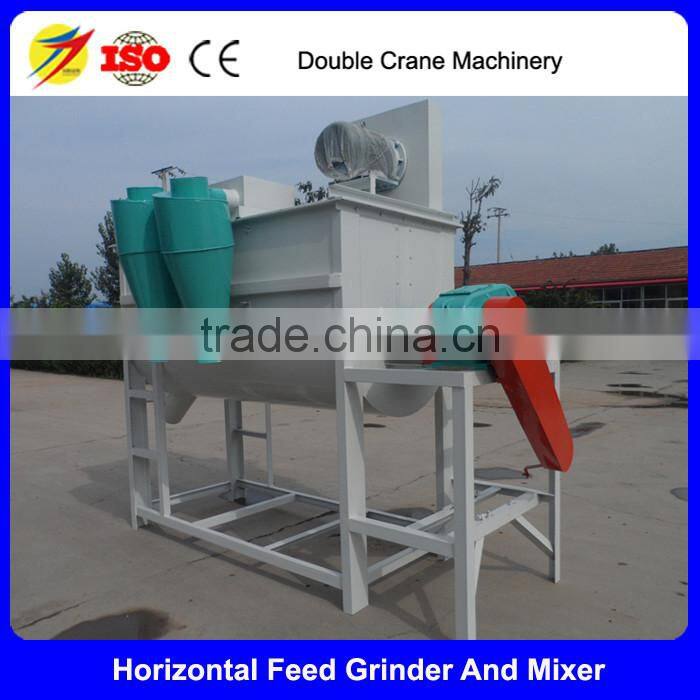

The Composition of Feed Hammer Mill And Horizontal Mixer Design Picture:

Working Principle:

By screw elevator A transport grain feed into hammer mill to crush (or by Self-priming feed grinder absorb feed into grinder),crushed grain feed drop into horizontal mixer,By screw elevator B transport premix feed directly into horizontal mixer,Horizontal .We can design and manufacture the hammer mill and mixer production capacity according to customer actual production demand,hammer mill can select 11kw or 15kw feed hammer mil,feed hammer mill output about 2-3t/h. Match horizontal mixer 7.5kw or 11kw,output 0.5-1t/batch,2-3t/h.

This unit including One hammer mill,one single shaft horizontal mixer,two screw elevator,two cyclone,it also can add another screw elevato to transport mixed feed into Silo.Use to store the finished feed.

Option 1> Horizontal Chicken Mash Feed Hammer Mill And Mixer In Tanzania Picture:

Crushed Chicken Corn Feed Picture:

Option 2> Horizontal Self-priming Pig Mash Feed Grinder And Mixer Installation Picture:

Grind Pig Corn Powder Feed Picture:

Full Container or Wooden Box Packaging & Shipping Picture:

About Professional Service:
1.We devote to all-round service of all the products from design,production, shipment to maintenance.
2.Our professional service include:free design,training,guidance,onsite installation,and debugging.
3.After selling, we provide the warranty of one year and free technical guidance and spares parts supply.
4.If your equipments have any problems, we will help you to solve online or onsite in time.
5.Welcome oversea agents to join us expand internation market.Join Double Crane,Win Our Future!
6.Welcome to contact us for further information!

Double Crane Machinery Area 67000m² Modern Factory Show:

Shandong Double Crane Machinery Manufacture Co.,Ltd. is located in economical and technological development zone,Leling city,Shandong province,very close to the expressway from Beijing to Shanghai.Our company is the high and new technological enterprise dedicated to manufacture feed pellet machines and biomass pellet machines to worldwide users.

Sticking to the product developing ideas of simplicity,perfection,quality and innovation,we have been always focused on designing and manufacturing feed pellet machines and biomass pellet machines since the foundation in 2005.We had cooperated with domestic famous universities like Shandong University,Jinan University and Shandong Agricultural University in feed pellet production line and biomass pellet production line research and development since 2008.We had obtained more than 30 patents and successfully developed 8 series of products,including 60 different kinds of machines. In the feed pellet industry ,we had achieved advanced level in man-machine design,functional design,automatic control and user experience and became the professional pellet mill manufacturer in China.We have strong competitive advantages in feed production line with the capacity of 1-30 tph and biomass pellet complete line with capacity of 1-50tph.Until now,we had installed more than 1200 sets of machines worldwide.

In recent years,our company continuously increase investment.We had invested up to 60 million Yuan to build 19,200 square meters manufacturing base and 10 million Yuan for technological innovation,in-depth automatic and integrative technology development.These investments have greatly promoted the upgrading of the machines,offering best quality solutions for feed industry and biomass pellet industry.Double Crane Machinery is willing to become your partner with our high price-performance products,excellent quality and perfect after-sales service.

Join our company and win our future.

Double Crane Machinery Modern Workshop Show,Welcome Visit Us:

If you're interested in our equipment, please kindly reply us the following question:

1. What's the feed mixer or feed hammer mill and mixer production capacity do you want?

R:We can supply feed mixer or feed hammer mill and mixer production line with output from 0.5-20t/h.
2. What's your feed raw material situation?

R:Our feed hammer mill and mixer can crush and mix grain feed,such as corn,soybean,etc.
3. What's the final crushed feed size do you want?

R:Our hammer mill can crush feed based on screen 1.5mm-12mm,final product powder or particle product.
4. What's your country industrial electricity voltage?

R:General standard motor in China work under 380V,50Hz,3Phase,if not match,tell us we can modify motor.

Welcome to contact Jack to inquire detailed design and offer sheet:
