best quality feed grinder and mixer for sale with CE&ISO certificate

 Introduction for best quality feed grinder and mixer for sale with CE&ISO certificate

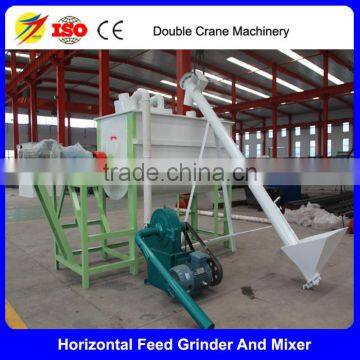

This unit consists of two screw elevators,hammer mill, horizontal single shaft double screw mixer,two dust

removal cyclone and bag type dust collector. Such unit is of proven technology, clean production,

low investment,low consumption, high output, and covers a small area, easy to install, easy to use.

horizontal mixer can install water pump and spaying system to add liquid for material mixing.

It is suitable to produce powder feed, concentrated feed production.The production capacity can range

from 1t/h to 3t/h,we can design the output according to the customer actual demand.This production line

is very popular for small and medium-sized feed factory,Poultry and livestock farm."

 Production processing for best quality feed grinder and mixer for sale with CE&ISO certificate

Hammer mill core is surrounded by screen with 16 hammers inside.Automatic feeding starts by

screw elevator.This breaking system has the latest technology, it works in silence without dust and

the raw material are broken homogeneously. The crushed size can be arranged by changing the sieve,

using sieve 8mm or 10mm for adult chicken feed general  and sieve 4mm or 6mmfor chick feed.

Broken raw materials directly fall into mixer, requested additives such as wheat bran, vitamin etc. are

directly added into the mixer by second screw elevator. The mixer is made of single shaft double screw.

This kind of mixers are very fast and made homogeneous mixture in very short time. Customer can put

bag on the discharge door,it will automatically unload feed into bag by hand to open control gate .

It also can add another screw elevator transport all the feed into silo for package,improve the working

efficiency of the mixer.

In order to reduce the air pollution, the cyclone and bag-type dust collector are used to dedust and collect

dust . Cyclone contains outer and inner tubes ,cone tube ,air-inlet and dust outlet whic are on the same axis.

Dust air tangentially goes through at the high speed along the top of outer tube, then rotates from top to

bottom at spiral high-speed inside the gap between outer and inner tubes also and cone tube. Dust particles

are threw to outer tube wall with collision and friction against wall surface at the function of centrifugal force

to gradually lose speed,finally falls into the cone tube by gravity and discharges from the dust outer into

bag -type dust collector which is made from filter cloth.  Bag -type dust collector uses the fabric to filter

the dust air, the big and heavy dust fall into dust hopper at gravity, the small dust is blocked to inside and

clean air is out. Our cyclone ranges from 400-1200 mm diameter made of 2-3 mm carbon steel with

good dedusting efficiency and fast dedusting time. The bags quantity for dust collector are decided

according to the whole unit working capacity.

Main paramerers for best quality feed grinder and mixer for sale with CE&ISO certificate

Advantages for best quality feed grinder and mixer for sale with CE&ISO certificate

1.Reasonable price, high efficiency.

2.Unique design,easy operation.

3.No dust while working.

4.Easy homogeneous mixing system even hard raw material for mixing.

5.Homogeneous mixing in short time.

6.Can match automatic packing system.

7.It can be adopted to the feed pellet system.

Application for best quality feed grinder and mixer for sale with CE&ISO certificate

Certificate for best quality feed grinder and mixer for sale with CE&ISO certificate

Shandong Double Crane Machinery Manufacture Co.,Ltd. is located in economical and technological

development zone, Leling city,Shandong province,very close to the expressway from Beijing to Shanghai.

Our company is the high and new technological enterprise dedicated to manufacture feed pellet machines and

biomass pellet machines to worldwide users.

Sticking to the product developing ideas of simplicity,perfection,quality and innovation,we have been always focused

on designing and manufacturing feed pellet machines and biomass pellet machines since the foundation in 2005.

We had cooperated with domestic famous universities like Shandong University,Jinan University and Shandong

Agricultural University in feed pellet production line and biomass pellet production line research and development

since 2008.We had obtained more than 30 patents and successfully developed 8 series of products,including 60

different kinds of machines.

In the feed pellet industry ,we had achieved advanced level in man-machine design,functional design,automatic

control and user experience and became the professional pellet mill manufacturer in China.We have strong

competitive advantages in feed production line with the capacity of 1-30 tph and biomass pellet complete line

with capacity of 1-50tph.Until now,we had installed more than 1200 sets of machines worldwide.

In recent years,our company continuously increase investment.We had invested up to 60 million Yuan to build

19,200 square meters manufacturing base and 10 million Yuan for technological innovation,in-depth automatic

and integrative technology development.These investments have greatly promoted the upgrading of the machines,

offering best quality solutions for feed industry and biomass pellet industry.Double Crane Machinery is willing to

become your partner with our high price-performance products,excellent quality and perfect after-sales service.

                   Promise provide customer Best Quality! Best Price! Best Service!

 About Professional Service:
1.We devote to all-round service of all the products from shipment to maintenance.
2.Our professional service include:free training,guidance,onsite installation,and debugging.
3.After selling, we provide the warranty of one year and free technical guidance and spares parts supply.
4.If your equipments have any problems, we will help you to solve online or onsite in time.
5.Welcome oversea agents to join us expand internation market.
6.Welcome to contact us for further information!

1.Are you manufacturer or trading company?

R:Our company is manufacturer and public company,we have been specialized in  this field more than ten years.

our company's factory covers an area of 67000 square meters,registered capital 60 Million RMB.Located in Dezhou city,Shandong Province.

2.How can we promise the equipment quality?

R:Our company pass European Union GS Safety Certification,ISO9001 Quality Management System Certification,

Chinese Credit Enterprise Association, AAA Quality Credit Enterprise Member, Well-known Trademarks In China.

We have professional R&D and production team can promise all equipment is qualifyed befor deliver to customer.

 Welcome your inquiry and we will reply you within 12 hours !
