Aluminum Cathode
- Shenzhen
- T/T L/C Credit Card
You May Like
-
Lead anode casting machine
-
Polyethylene(PE) integral moulding electrolytic cell for 99.99% Lead production
-
Lead electro-refining Lead anode ingot casting wheel
-
China Manufacturer Lead Ore Lead Concentrate Reverberatory Furnace
-
Battery Recycling Lead Recycling Reverberatory Furnace
-
Lead electro-refining Lead anode casting wheel
Product Details
| Grade | 1000 Series | Temper | Other | |
| Type | Plate | Application | Zinc electro-winning | |
| Thickness | 0.2-200mm | Width | 500mm-2800mm | |
| Surface Treatment | Coated | Alloy Or Not | Non-alloy | |
| Place of Origin | Hunan, China |
Product Description

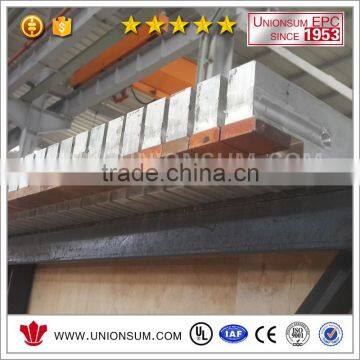

Aluminum Cathode
Al Cathodes are installed in a Zinc electrolytic cell to form electrode pairs with Lead anodes. The cells are electrically connected in series and a voltage is applied across the anode-cathode pair to produce Zinc on cathode surface by electro-winning process.
Loaded cathodes are periodically removed from the electro-winning cells by a lifting bale and overhead crane for stripping cathode. Blank cathodes are then returned to electro-winning cells with the lifting bale and the process is repeated.
1. Aluminum cathode specification
Item | Parameter |
Blank material | Al (≥99.7%) |
Blank size | 1813*1090*7mm |
Hanger bar size | 1600*25*95mm |
Contact copper area | 25*70mm |
Cathode service life | ≥18 months |
Cathode net weight | 50.2kg |
Total cathode weight with Zinc deposition | 160kg |
Blank length error | ±2mm |
Blank width error | +2/-1mm |
Blank thickness error | +0.2/-0.1mm |
Blank diagonal length error | ±2mm |
Blank flatness | Before welding: ≤1mm After welding: ≤1.5mm |
Blank length bending deformation | ≤2mm |
Blank width bending deformation | ≤1mm |
Hanger bar length error | ±1mm |
Hanger bar width error | ±0.5mm |
Hanger bar thickness error | ±0.3mm |
Angle between Hanger bar and blank side line | 90°+45’/-0’ |
Hanging ear size error | +0.1/-0mm |
Hanging location error | ±1mm |
Surface | Smooth |
2. Cathode design critiria
The cathodes should be suitable for continuous operation in an electro-winning plant to produce Zinc and shall remain tolerance under all operation conditions. It also shall be suitable for repeated use and stripping using an automated cathode stripping machine.
Unionsum can supply cathode exactly according to client drawing. However, according to our experience in Cathode fabrication and application, we have some improvements on:
- Blank material;
- Stripping point;
- Edge strip assembly;
- Welding
We think the above improvements will contribute to a better cathode performance.
3. Package and transportation
4. Drawing
4. Detailed pocture of each parts
