Cd Ingot (98%) Cd Distillation Slag Cd-Ni Batteries Vacuum Distillation System

Cd Ingot (98%) Cd Distillation Slag Cd-Ni Batteries Vacuum Distillation System

Equipment Overview

• Decrease boiling point of metals in alloy under vacuum
• Distil & purify each low boiling point(≤2000°C) metal from alloy
• Leave & purify high boiling point metals
• Produce liquid metal or nanoscale powder by control of the condensation speed

Metals Pressure VS Boiling Temperature

Advantages

• Low energy consumption, 600~800kwh/MT raw materials
• High purity of metal product, ≥99.95%, Automatically operation
• Produce liquid metal and solid metal powder
• No off-gas, environmental friendly, hygiene working
• Low infrastructure cost, less construction area
• Large capacity, single furnace 10t/d, continuous or batch shift

Two Type of Vacuum Distillation Furnace System

Continuous Vacuum Distillation (CVD)

Batch Vacuum Distillation (BVD)

Three Main Aplication

• Cd: Cd low temperature molten salts (Cd or its oxides powder from Zn electro-winning),

  Cd ingot (98%), Cd distillation slag, Cd-Ni batteries

• Zn: Zn ingot (98%), Zn (90~99%), hard Zinc (99.5%),  hot galvanizing Zn residue (Zn/Fe/Al alloy), Bi-Ag-Zn slag, Pb-Ag-Zn slag
• Pb: Pb/Cu floating slag from Cu removal process for Pb (95~98%) fire-refining, Cu or Pb anode slime with precious metal (Au/Ag), Pb secondary material
• Others: WEEE,Sulphuric acid sludge from acid generation plant of ZnS calcining, Crude Mg, etc.

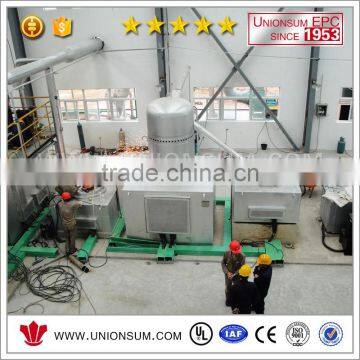

Installation Site

Customized vacuum distillation test at Unionsum before order, Korean customer

Client Visiting

Unionsum, a subsidiary of CRIMM, provides sustainable system solution for mining and

metallurgy industry, including engineering, procurement and construction, and offers a widerange of

scientific research and consultingservices.

                                                   Mining and Metallurgy Experts

History from 1953

Most authoritative and comprehensive organization in China mining and metallurgy industry

2 academicians of China Engineering Academy, 108 professors and 500 senior engineers

50 Laboratories and Pilot Plants (2 state key Labs)

Decades experiences in research and engineering service

 Global Market

                                           Vacuum distillation project at Bulgaria                                          Rotary Furnace at Thailand
