metallic intalox saddles
- 20 Cubic Meter / Cubic Meters per Month
- shanghai shenzhen and any port in China
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | ZHONGYING |
Product Description
Specifications
1. 20 years professional manufacturer of Metal intalox saddle2. Material:SS304 304L 316 316L 410

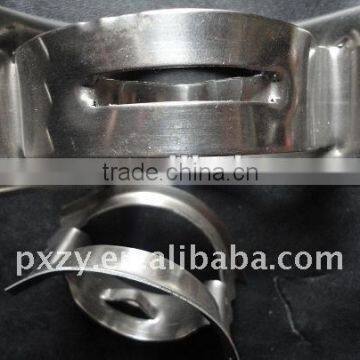

Metal intalox saddle is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc..
Technical data
Size | Thickness | Bulk density | Number | Free volume | Surface Area | Packing Factor |
15 | 0.25 | 280 | 347000 | 96.5 | 305 | 167 |
25 | 0.3 | 255 | 135000 | 96.8 | 241 | 135 |
40 | 0.4 | 231 | 50200 | 97.1 | 161 | 79 |
50 | 0.4 | 149 | 15000 | 98.1 | 104 | 59 |
60 | 0.4 | 142 | 8400 | 98.2 | 85 | 50 |
70 | 0.5 | 113 | 4600 | 98.6 | 62 | 39 |
The above data is reference to material stainless steel (AISI304) in the material thickness shown.
Material available:
carbon steel, stainless steel including 304, 304L, 410,316, 316L.
Advantage
1) A versatile packing used in distillation, absorption and other operations.
2) Used in both deep vacuum and high pressure towers.
3) ZHONGYING metal saddle is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
