Ceramic structured packing
- 1000 Metric Ton / Metric Tons per Month
- Shenzhen Shanghai and any port in China
- T/T L/C D/P D/A Credit Card
You May Like
-
Ceramic acid resistance plate,micro porous ceramic filter media,ceramic plate
-
Acid resistant ceramic,Ceramic structured packing,ceramic corrugated stuctrued packing,tower internals
-
Metallic Perforated & corrugated Plate
-
Metallic Pricked & corrugated Plate
-
metal wire mesh for water treatment
-
wire screen for water screening,metal pricked&corrugated plate,structure packing,metal wire packing
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Plates | |
| Application | Industrial Ceramic | |||
| Model Number | X4556 | Brand Name | ZY |
Product Description
Specifications
1)20 years professional manufacture2)High quality and reasonable price
3)Ontime delivery
4)One-stop service
5)ISO9001:2000

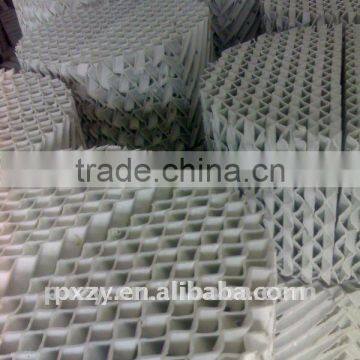

Ceramic structured packing is a kind of column shape and single layer corrugated packing, consisting of many pieces with the same geometric shape and parallel to each other. According to the different obliquity of corrugated sheet, this product is divided into X-style and Y-style, and X and Y correspond to the 30°and 45°respectively.
Advantages
1) High capacity. New tower design may reduce diameter, while renovate old towers may increase capacity significantly.
2) High separation efficiency. Since it has much larger specific surface area compared to random packing.
3) Low pressure drop, which leads to reduce energy consumption largely.
Technical data
| Type | Surface area (m²/m³) | Tilt angle (°) | Void space | Number per m³ | Crushing strength (Pa) | Hydraulic diameter (mm) | spray liquid density (M3m2·h) | Max F-factor M/s·(kg/m3)0.5 | P Pa/m | Nt M-1 |
470X | 470 | 30 | 75 | 500-540 | >2M | 7 | 0.2-100 | 1.8 | 5 | 5 | |
450X | 450 | 30 | 72 | 480-500 | >2M | 7 | 0.2-100 | 2.0 | 4.5 | 3-4 | |
450Y | 450 | 45 | 72 | 500-520 | >2M | 7 | 0.2-100 | 1.8 | 4 | 4 | |
400X | 400 | 30 | 75 | 460-480 | >2M | 8 | 0.2-100 | 2.2 | 4 | 2.8 | |
400Y | 400 | 45 | 75 | 460-500 | >2M | 8 | 0.2-100 | 2.0 | 3 | 3 | |
350X | 350 | 30 | 78 | 400-440 | >2M | 10 | 0.2-100 | 2.6 | 3 | 2.5 | |
350Y | 350 | 45 | 78 | 400-440 | >2M | 10 | 0.2-100 | 2.5 | 2.5 | 2.8 | |
| 250X | 250 | 30 | 80 | 390-420 | >2M | 12 | 0.2-100 | 2.8 | 2.5 | 2.3 |
250Y | 250 | 45 | 80 | 390-420 | >2M | 12 | 0.2-100 | 2.6 | 2 | 2.5 | |
150X | 150 | 30 | 85 | 220-380 | >2M | 15 | 0.2-100 | 3.0 | 2 | 1.8 | |
150Y | 150 | 45 | 85 | 220-380 | >2M | 15 | 0.2-100 | 2.8 | 1.8 | 2 | |
125X | 125 | 30 | 90 | 200-230 | >2M | 28 | 0.2-100 | 3.2 | 1.8 | 1.5 | |
125Y | 125 | 45 | 90 | 200-230 | >2M | 28 | 0.2-100 | 3.0 | 1.5 | 1.8 | |
100X | 100 | 30 | 92 | 190-200 | >2M | 30 | 0.2-100 | 3.5 | 1.5 | 1 |
