Home > Products > structured tower packing > Metal Peforated Corrugated Packing(304.316)
Metal Peforated Corrugated Packing(304.316)
- 100 Cubic Meter / Cubic Meters per Month
- Shenzhen Shanghai and any port in China
- T/T Credit Card
You May Like
-
316 Stainless Steel Metal Corrugated Packing
-
Ceramic structured packing
-
Ceramic acid resistance plate,micro porous ceramic filter media,ceramic plate
-
Acid resistant ceramic,Ceramic structured packing,ceramic corrugated stuctrued packing,tower internals
-
Metallic Perforated & corrugated Plate
-
Metallic Pricked & corrugated Plate
Product Details
| Place of Origin | Jiangxi, China | Brand Name | ZHONGYING | |
| Model Number | 125,250Y.500.700 |
Product Description
Specifications
1.304.316 stainless steel material, acid-alkali function2.Long service life, 2 years warranty
3.uniform liquid distribution

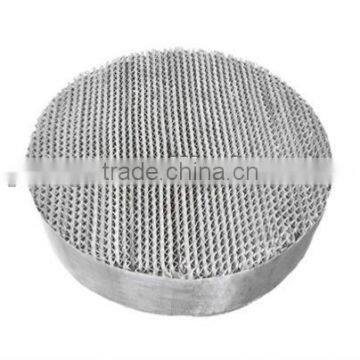

Metal Peforated Corrugated Packing
The packing is made of perforated plate with channel corrugation on surface, and remains structure feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increases mass transfer efficiency.
Metal Peforated Corrugated Packing Technical data
Model | Specific surface | Bulk density | Void ratio | Obl. | Δ P | Theo. plate |
125Y | 125 | 100 | 98 | 450 | 200 | 1~1.2 |
250Y | 250 | 200 | 97 | 450 | 300 | 2~2.5 |
350Y | 350 | 280 | 94 | 450 | 350 | 3.5~4 |
500Y | 500 | 360 | 92 | 450 | 400 | 4~4.5 |
125X | 125 | 100 | 98 | 300 | 140 | 0.8~0.9 |
250X | 250 | 200 | 97 | 300 | 180 | 1.6~2 |
350X | 350 | 280 | 94 | 300 | 230 | 2.3~2.8 |
500X | 500 | 360 | 92 | 300 | 280 | 2.8~3.2 |
Metal Corrugated Packing Material:, 304, 316, 316L, Carbonsteels. Aluminium, copper bronze etc. Further materials available on request.
ZhongyingMetal Peforated Corrugated PackingApplication
Perforated plate corrugated packing with the wide range of applications.
Diameter: 0.1-12m; Pressure: Vacuum to high pressure;
Liquid load: 0.2 to more than 300 m3 / m2.h;
System: Ethyl benzene/ styrene, Fatty acid, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.
