High Abrasion Ball mill Ling brick
USD $0.89 - $1.49
/ Piece
1000 Pieces(Min.Order)
- 100 Ton / Tons per Month
- Shanghai Port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Plates | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | As u need | Brand Name | Zhongying |
Product Description
Specifications
1.Size can be ordered, Regular and irregular ceramic brick2.Available alumina content: 92%-95%
3.High quality, High density
Burning in Kin:

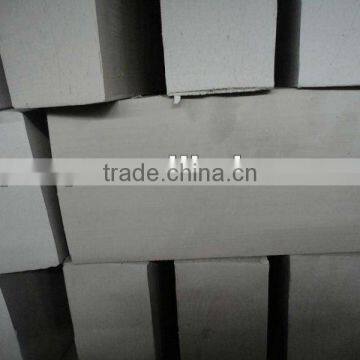

Alumina Lining Brick Package:
Production Progress:
Alumina Ceramic Lining Brick available alumina content: 70%, 80%.92%, 95%
Alumina Ceramic Brick Application ::
Alumina ceramic lining bricks used as liner of ball mill, It can be used for ball mill, mixing mill, vibration mill, sand mill, etc. The products are widely used in construction ceramics, sanitary ceramics, kaolins, refractory materials, paints, coatings and other fields.
92% Alumina Ceramic Brick Advantage:
have characteristics of high strength, high density, high abrasion, entire specification, strong practicability.
Alumina Cramic Brick technical Data:
| Performance Index | 70 Series | 80 Series | Series | 95 Series |
| Al2O3(%) | ≥67 | ≥80 | ≥92 | ≥95 |
| Fe2O3(%) | ≤1.5 | ≤0.5 | ≤0.25 | ≤0.2 |
| Mohs Hardness | 9 | 9 | 9 | 9 |
| Water Absorption Rate(%) | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 |
| Bulk Density(g/cm3) | ≥3.0 | ≥3.2 | ≥3.60 | ≥3.65 |
| Wearing Lost(‰) | ≤0.2 | ≤0.2 | ≤0.15 | ≤0.10 |
| Color | Yellow | White | White | White |
| Material | Bauxite | Alumina Powder | Alumina Powder | Alumina Powder |
Available size of Lining Brick
| Name | Length (mm) | Width 1 (mm) | Width 2 (mm) | Thickness(mm) | |
| 40~90mm Thickness Lining Brick | Rectangle Brick | 150±2 | 50±1 | 50±1 | 40/50/60/70/77/90±1 |
| Trapezoid Brick | 150±2 | 50±1 | 45±1 | 40/50/60/70/77/90±1 | |
| Half Rectangle Brick | 75±1 | 50±1 | 50±1 | 40/50/60/70/77/90±1 | |
| Half Trapezoid Brick | 75±1 | 50±1 | 45±1 | 40/50/60/70/77/90±1 | |
| Flake Brick | 150±2 | 25±1 | 22.5±1 | 40/50/60/70/77/90±1 | |
| Special Specification Lining Bricks | 80x50x55 | 55±2 | 50±1 | 50±1 | 80±1 |
| 110mm Ling Brick | 75±1 | 45±1 | 41±1 | 110±2 | |
| 110mm Half Ling Brick | 37.5±1 | 45±1 | 41±1 | 110±2 | |
| Brick for Manhole and Drainhole | The specification can make according to the customers' requirements. | ||||
We also can design Speical size as u need
