Introduction
Feed pellet machine are the new-designed products of our company and the main parts of the fodder machinery system.They are widely used in feed factories, breed aquatics factories, organic fertilizer factories, chemical factories, and China traditional medicine factories, etc.It can be used together with powder material. Its capacity is superior in the same industry home and abroad.
Our company supply many different ring dies, such as φ1.5, φ2, φ2.5, φ3, φ3.5, φ4, φ5, φ6, φ8, φ10, φ12. It can be chosen according to different requirements.
Structure
1. Feeder
The feeder consists of speed-adjusting motor, reducer, screw hopper, and screw oar.
2. Conditioner
The conditioner is mainly made up of carbon steel or full stainless steel, mix oar, temperature display,
motor and steam adding hole.Its function is passing 0.1-0.4Mpa dry steam to make steam and Feed stuff mix enough, to make material soft and pasted then goes into the pressing store.
3. The pressing store
The structure of pressing store and working principle .Through the cover of ring-die and feeder scraper,the powder material accumulate in the two pressing districts, belt wheel drives the ring-die rotate,
the material is rolled between the ring-die and the pressed roller,two opposite rotating parts press the material gradually into the hole of ring die, shaped in the hole and extrude out of the hole, knives by the column strip in the length you need,finally the shaped pellets roll out of the machine.The axis of
pressed roller is eccentricity running it will change the gap between die and roller, the gap-adjusting completes through running the wheel.

Technology parameter

Spare parts----ring dies

--------------------------------------Ring die pellet mill pictures-------------------------------------

Working video on YouTube:

/watch?v=nW2eum82pes

Best serives

1.24 hours online service.

2.All the machine habe one year free warranty.
3.Our products have CE certificate ,they are of good quality with lower price.
4.We take our customer as our gods.we advoted to all-around service of all the products from shipment to maintenance.
if you need our engineer intallian to your factory ,we will arrange visa in time

Contact Information

Abby Wang

Whatsapp:+86 18815670770

Skype:skylar941120

Jinan Biomass Machinery Equipment CO.,LTD

---------------------------------------Final products--pellets------------------------------------------

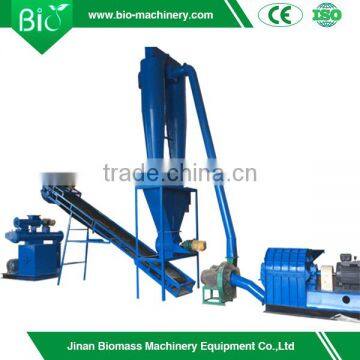

----------------------------------complete line of ring die pellet mill-----------------------------------

Package will full container,if you only buy the single ring die pellet mill,will pack with wood case,we promoise the machine will be best after arriving your side.

We can also supply the pellet machines as following:
1.The SKJ Series flat die pellet mill and feed pellet mill with the capacity 100kg per hour to 4 ton per hour.
2.The XGJ Series ring die pellet mill with the capacity 800kg per hour to 5 ton per hour.
3.The  Pellet Mill with Diesel Engine with the capacity 100kg per hour to 400kg per hour.
4.The Pellet Mill with Tractor Engine
5. Hammer Mill
6.Wood chipper
7.Mixer/Blender
8.Cooler

9.Dryer
10.Packing machine
10.Whole pellet making production line from capacity 0.5 ton per hour to 20 ton per hour.
