40hp 4 Wheel Drive Garden Tractor

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	40hp
Certificate	Other, ISO9001	Brand Name	SH
Model Number	SH404	Place of Origin	Shandong, China
After-sales Service Provided	Engineers available to service machinery overseas

Shuhe Brand

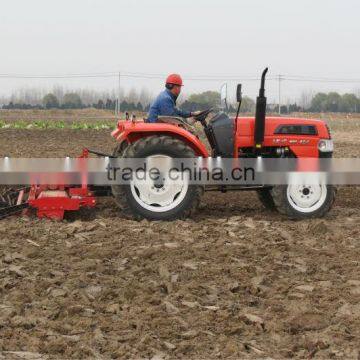

40hp 4WD tractor
Good quality and best service

Equipped with famous&durable gear box and engines ,

working with different agricultural tools can satisfy user's different demand .

MODEL		SH404
Type		/	4×4
overall dimension		mm	3700×1620×2130
wheel base(front/rear)		mm	1250/1200-1500(mostly1300)
wheelbase(front/rear)ajustment type		/	no/class adjustment
minimum ground clearance		mm	325
Minimum operating weigh		kg	2120
balance weight(max)		kg	front127/rear180
grears(forward/reverse/creeper)		/	8/4/0or8/8/0
Max traction		kN	≥11
engine 1	type	/	SL3105ABT
	Breathing mode	/	naturally aspirated
	Number of cylinders	cylinder
	cylinder bore ×stroke	mm	105×117
	rated power	kW	29.4
	rated speed	r/min	2200
engine 2	type	/	QC490/T40
	Breathing mode	/	naturally aspirated
	Number of cylinders	cylinder	4
	cylinder bore ×stroke	mm	90×105
	rated power	kW	29.4
	rated speed	r/min	2400
steering system type		/	hydraulic steering
braking system type		/	wet disc brake
braking system type		/	mechanical operating
clutch type		/	single,dry/double
Min turning radious		m	3.4±0.3
tire type(front/rear)		/	8.3-20/12.4-28
tire pressure(front/rear)		kPa	90~120/80~120
suspension type		/	3-point links
suspension sort		/	1
Max lift on the frame		kN	9
Adjusting way		/	force control
hydraulic output device		/	M20×1.5
PTO type		/	semi-detached
PTO speed		r/min	540/760
PTO power		kW	25
