Road Construction Material Plastic Biaxial Geogrid
- Qingdao
- T/T
You May Like
-
PP Biaxial Geogrid 1515KN EROSION CONTROL Stream Banks and Soil Nailed Slopes Reinforcements
-
Plastic Biaxial Geogrid for Retaining Wall
-
Hot Sale PP Biaxial Geogrid For Soil Reinforcement
-
China Supplier Civil Engineering pp Biaxial Polyester Geogrid
-
China Supplier Fiberglass Geogrid for Pavements Road Construction
-
China Supplier Asphalt Reinforcement Fiberglass Geogrid With CE Certificates
Product Details
| Place of Origin | Shandong, China | Brand Name | SK | |
| Model Number | GEO-GRID | Material | Plastic |
Product Description
Road construction material plastic Biaxial geogrid
ISO / CE / SGI certificate
port:Qingdao
We are professional geogrid supplier from China.Now we have------ plastic geogrid and fiberglass geogrid.
Both of them have uniaxial geogrid and biaxial geogrid.

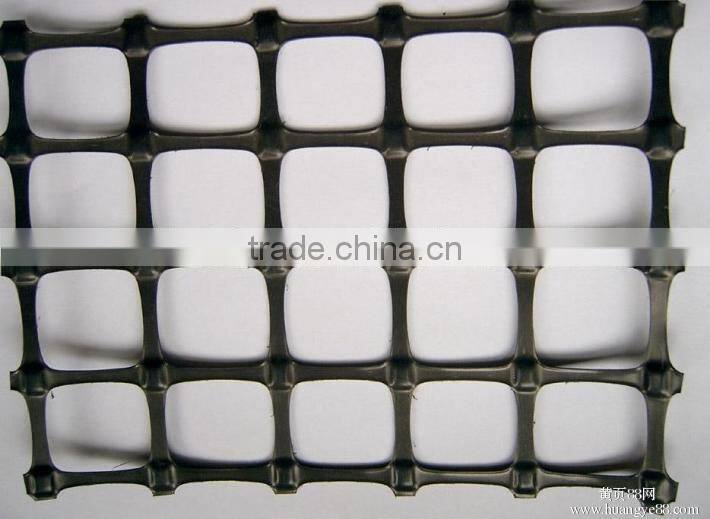

PP Plastic polypropylene geogrid biaxial
The properties of Biaxial Geogrids, made in Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.
Size of the geogrid
Item | TGSG15-15 | TGSG20-20 | TGSG45-45 | TGSG30-30 | TGSG40-40 |
Longitudinal Tensile Strength,kN/m | 15 | 20 | 45 | 30 | 40 |
Transverse Tensile Strength,kN/m | 15 | 20 | 45 | 30 | 40 |
Longitudinal Yield Elongation,% | 15 | ||||
TransverseYield Elongation,% | 13 | ||||
Longitudinal Yield Strength at 2% Elongation,kN/m | 5 | 7 | 17 | 11 | 14 |
Transverse Yield Strength at 2% Elongation,kN/m | 5 | 7 | 17 | 11 | 14 |
Longitudinal Yield Strength at 5% Elongation,kN/m | 7 | 14 | 33 | 21 | 30 |
Transverse Yield Strength at 5% Elongation,kN/m | 7 | 14 | 33 | 21 | 30 |
Product Length/roll,m | 50 | 40 | |||
Product width ,m | 2/3.9/3.95/4/4.5/5 | ||||
Typical Dimensions mm | ||||||
| KN | 2020LKN | KN | 3030LKN | KN | 4040LKN |
Pmd | 40 | 65 | 40 | 60 | 33 | 54 |
Pld | 40 | 65 | 40 | 60 | 33 | 54 |
Wmd | 2.0 | 3.3 | 2.2 | 3.3 | 2.3 | 3.5 |
Wld | 2.4 | 4.0 | 2.7 | 4.0 | 2.6 | 4.5 |
Tj | 4.1 | 4.3 | 4.3 | 6.5 | 5.5 | 7.5 |
Tmd | 1.0 | 1.0 | 2.0 | 1.5 | 2.3 | 1.8 |
Tld | 0.8 | 0.9 | 1.4 | 1.4 | 2.0 | 1.6 |
