China Double Small Scale Cement Factory Plant
- Shanghai / Ningbo
- T/T D/P D/A Money Gram
You May Like
Product Details
| Condition | New | Production Capacity | 1000-12000t/d | |
| Place of Origin | Zhejiang, China | Brand Name | Tongli | |
| Model Number | China Double Small Scale Cement Factory Plant | Power(W) | 160-1100kw | |
| Dimension(L*W*H) | Dia 3.2x50 ~ Dia 6.2x96 | Weight | 259-1730t | |
| Certification | ISO9001:2008 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
China Double Small Scale Cement Factory Plant:1. Established in 1958
2. ISO9001:2008
3. National Torch Project
China Double Small Scale Cement Factory Plant:

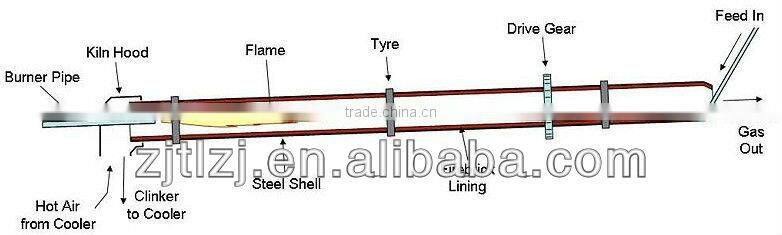

A Rotary kiln is a pyroprocessing device used to raise materials to a high temperature (calcination) in a continuous process.Its fuel for this may be gas, oil or pulverized coal.The basic components of a rotary kiln are the shell, the refractory lining, support tyres and rollers, drive gear and internal heat exchangers.
China Double Small Scale Cement Factory Plant main features and advantages:
1) High Adaptability with raw material
2) Simple operation
3) Working stable
Main technical parameters of China Double Small Scale Cement Factory Plant:
| Specification | Prod.capacity | Rotation speed of kiln body | Main motor | Main reducer | Weight | |
| m | t/d | r/min | Model | Power | Model | t |
| kw | ||||||
| Φ3.2 x 50 | 1000 | 0.36 ~ 3.57 | ZSN4-280-091B | 160 | NZS995-40 | 259 |
| Φ3.5 x 52 | 1500 | 0.35 ~ 3.51 | ZSN4-315-082 | 190 | NZS995-25 | 318 |
| Φ4.3 x 62 | 3200 | 0.4 ~ 4.0 | ZSN4-355-12 | 420 | YNS1400-31.5VIBL | 547.5 |
| Φ5.6 x 87 | 8000 | 0.35 ~ 4.0 | ZSN4-450-12 | 800 | JH900c-SW305-25 | 1201 |
| Φ6.0 x 95 | 10000 | 0.35 ~ 4.0 | ZSN4-500-092 | 950 x 2 | JH900c-SW305-28 | 1580 |
| Φ6.2 x 96 | 12000 | 0.35 ~ 4.0 | ZSN4-560-092 | 1100 x 2 | JH900c-SW305-28 | 1730 |
Since year 1958,company is equipped with more than 100 sets of heavy machinery manufacturing equipments,such as Φ5.3×18m(The lifting capacity is 200t)digital control horizontal lathe, large heat treatment of cylinder, Φ8.0m heavy hobbing machine, etc.
Our HeavyEquipment:
Qualification and Honors:
Office Building:
Established in year 1958, Why so Professional it is !
1). A member of China Building Material Machinery Industry Association
2). A member of equipments service network of China Phosphate Fertilizer and Sulphuric Acid Industry
3). Till now we have 52-year history, both for domestic and overseas
4). Our City of Tongxiang's popular:
---Land of Fish and Rice, Home of Silk, Land of Flowers and Land of Culture
---An Ancient Town of Rivers-Wuzhen
---The Late Maodun's Residence
---The Late Feng Zikai's Residence
5). The factory located between hangzhou and shanghai
Friendly Exchanges:
