20-200t/h Calcium Oxide Vertical Mill Machine, Calcium Oxide Grinding Mill Machine

20-200t/h calcium oxide vertical mill machine, calcium oxide grinding mill machine

            The vertical mill produced by our company is air-swept type, widely used in the grinding of raw cement, slag, cement clinker, raw coal and other raw materials. It gathers grinding, drying and powder selecting as a whole, with high grinding efficiency and high drying capacity ( the maximum material moisture can be up to 20% ). The vertical mill adopts dynamic powder selecting device, which comes with high powder-selecting efficiency and convenient adjustment of fineness.

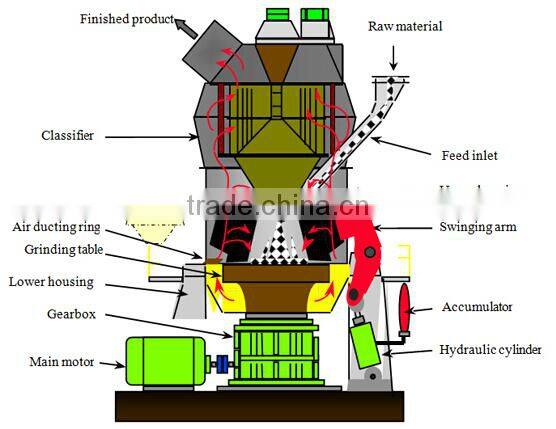

       After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe.The grinding disc is driving by motor through reducer. The material falls to grinding disc from the feed opening. The materials are driven to the edge of disc by the centrifugal force and crushed into fine powders by rollers. Then, the hot air from the nozzle take the fine powder to high effiency classsifer.The qualified powder are taken by the air to the powder collector to be collected, while the unqualified powder are sent back for regrinding.

               Zhejiang Tongli Heavy Machinery Manufacturing Co.,ltd is specialized intechnology R&D, engineering consultation , equipment debugging, engineering contracting and related technical services for manufacturing cement, building material, mining, environmental protection, metallurgy, chemical equipment. Tongli Heavy Machinery  Co.,ltd established in 1958year, is a member of the China Building Material Machinery Association, a leading enterprise of China Cement Machinery, on the vendor of designated manufacturers for coal industry mechanical and electrical equipments, ISO9001:2008 accredited and accredited as a high-tech & new technology enterprise of Zhejiang Province, national designated “defend the contract heavy credit enterprise”, modern enterprise of national top ten cement grinding system of technologies and equipment , at the top of cement equipment manufacturing in Zhejiang Province.

            The Tongli occupies 153800m2 and the construction area of the workshop is 85000m2,the maximum lifting capacity of a single head crane is 200t. The company is equipped with more than 100 sets of heavy machinery manufacturing equipments such asφ5.3×18m(The lifting capacity is 200t)digital control horizontal lathe, φ5.5×18m lathe for machining shell, φ8m heavy digital display vertical lathe, φ8.0m heavy hobbing machine, 14×5m CNC vertical milling & boring machine, 3.4×10m CNC gantry milling & boring machine, 120mm digital control plate bending rolls, φ6.5×20m large size annealing furnace, φ6.5×20m sand blasting room, 1800t four columns hydraulic press, 10t electric arc furnace, etc, the integrated machinery processing ability is very strong.

            After working hard for more than 56 years, the company has the first-class science and technology development centers and craftsmen team who have much experience and skilled technology, specially manufactures series of cement machinery main equipments with independent intellectual property such as slag vertical mill, raw material vertical mill, cement vertical mill, coal vertical mill and rotary kiln, cement mill, wind swept coal mill, dryer, etc; in the meantime, manufactures the equipments and large- sized structural workpieces such as compound fertilizer, mining, power generating, sewage sludge (waste)incineration systems, etc, the products are exported widely toover 1000 companies from sixty or more countries such as Germany, Russia, Brazil, Egypt ,Iran, Bangladesh, Pakistan, Turkey, Myanmar, Vietnam, Columbia, Bolivia, South Africa, etc
