New condition professional limestone cone crusher with CE ISO Certification

New condition professional limestone cone crusher with CE ISO Certification

        Cone crusher is widely used in metal and non-metallic mines, cement, construction, sand and metallurgical industries. It is applicable to materials like iron ore, nonferrous metal ores, granite, limetone, quartzite, sandstone, pebbles and so on.

       Cone crusher crushes materials by working between the movable cone and fixed cone. The movable cone is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft is driven by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is driven by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the discharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined.

1. Simple and sound design of Cone Crusher is ideal for crushing operations;

2. The spring-loaded discharging system filters non-crushable materials automatically to avoid any damage to the machine;

3. The interlocked lubrication unit is equipped with a main motor for additional safety;

4. A rib liner is installed at the bottom of the frame to protect it from wearing.

5. Generally there are four types of Cone Crushers: the C Standard or the Coarse type, the M Fine or the Medium type, the F Short Head type & EF Super Fine type. All these types are used for secondary and tertiary crushing both in stationary and portable applications.

Detailed parameters of the cone crusher

           Zhejiang Tongli Heavy Machinery Manufacturing Co.,ltd is specialized intechnology R&D, engineering consultation , equipment debugging, engineering contracting and related technical services for manufacturing cement, building material, mining, environmental protection, metallurgy, chemical equipment. Tongli Heavy Machinery  Co.,ltd established in 1958year, is a member of the China Building Material Machinery Association, a leading enterprise of China Cement Machinery, on the vendor of designated manufacturers for coal industry mechanical and electrical equipments, ISO9001:2008 accredited and accredited as a high-tech & new technology enterprise of Zhejiang Province, national designated “defend the contract heavy credit enterprise”, modern enterprise of national top ten cement grinding system of technologies and equipment , at the top of cement equipment manufacturing in Zhejiang Province.

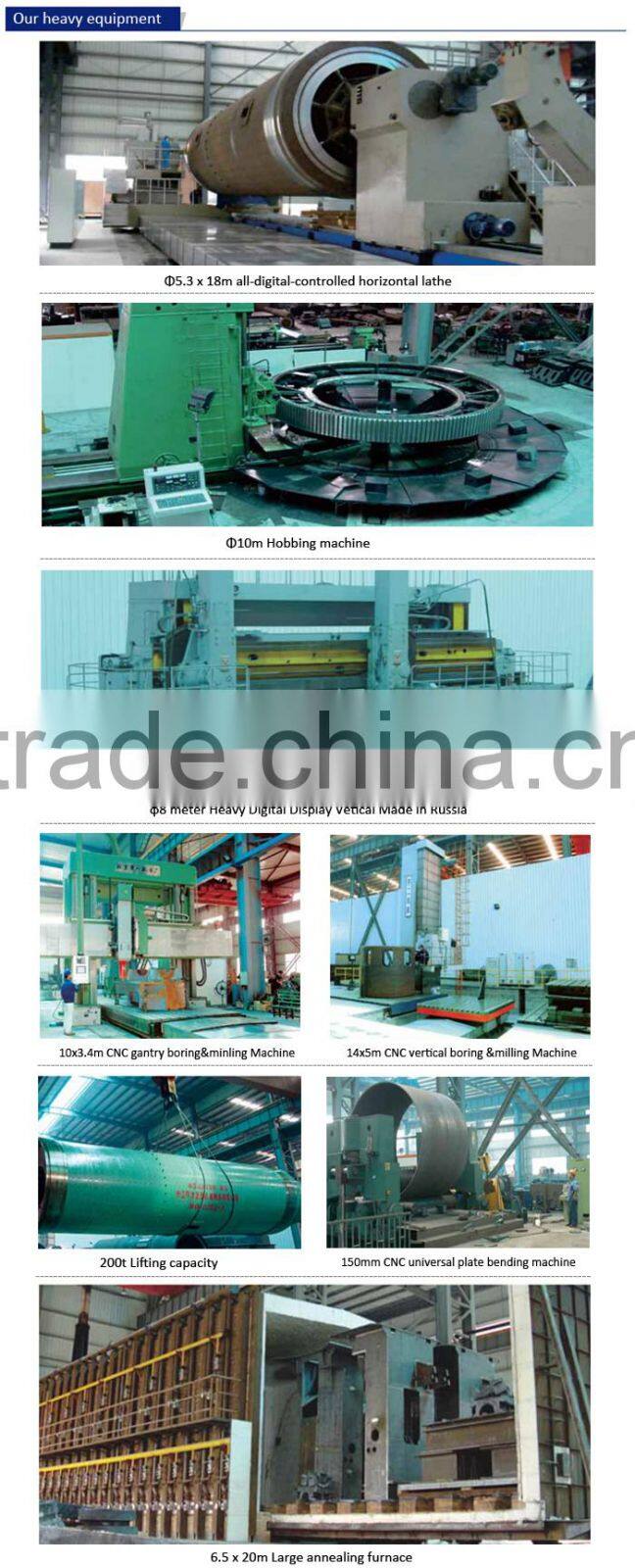

       The Tongli occupies 153800m2 and the construction area of the workshop is 85000m2,the maximum lifting capacity of a single head crane is 200t. The company is equipped with more than 100 sets of heavy machinery manufacturing equipments such asφ5.3×18m(The lifting capacity is 200t)digital control horizontal lathe, φ5.5×18m lathe for machining shell, φ8m heavy digital display vertical lathe, φ8.0m heavy hobbing machine, 14×5m CNC vertical milling & boring machine, 3.4×10m CNC gantry milling & boring machine, 120mm digital control plate bending rolls, φ6.5×20m large size annealing furnace, φ6.5×20m sand blasting room, 1800t four columns hydraulic press, 10t electric arc furnace, etc, the integrated machinery processing ability is very strong.

          After working hard for more than 56 years, the company has the first-class science and technology development centers and craftsmen team who have much experience and skilled technology, specially manufactures series of cement machinery main equipments with independent intellectual property such as slag vertical mill, raw material vertical mill, cement vertical mill, coal vertical mill and rotary kiln, cement mill, wind swept coal mill, dryer, jaw crusher, cone crusher, impact crusher, sand making machine etc; in the meantime, manufactures the equipments and large- sized structural workpieces such as compound fertilizer, mining, power generating, sewage sludge (waste)incineration systems, etc, the products are exported widely toover 1000 companies from sixty or more countries such as Germany, Russia, Brazil, Egypt ,Iran, Bangladesh, Pakistan, Turkey, Myanmar, Vietnam, Columbia, Bolivia, South Africa, etc.
