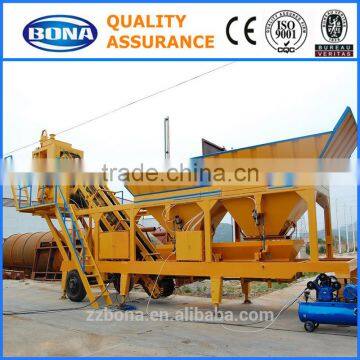

Low Cost Mobile YHZD25m3 Concrete Machine With Small Concrete Mixer

Low Cost Mobile YHZD25m3 Concrete Machine With Small Concrete Mixer

Specifications

mobile concrete machine:
1.Mixing capacity:25 m3/h

2.Mixing engine: single shaft JD500
3.ISO9001 CE

Mobile Concrete Mixing Plant:

Characters of YHZS Series of mobile concrete machine:

YHZS series mobile concrete machine is bran-new and tandem mobile type, which owned great unique configuration,

That tandem unit centralize many tasks of collecting material, weighing, mixing, delivering and etc, human- computer

interface is simple and clear, work is stable, whole mobile is perfectly. It is best model used in road, bridge, port, water and

electricity and jects.

1.Simple structure, large maintaining space, maintenance is convenient.

2.The promotion system multiple protection is stable reliable with high efficiency.

3.Space Occupied is small, installation and relocation are easy.

4.Using automatic industrial control system. The management function is powerful and reliable.

5.Major electrical  components are used internationally well known brands.

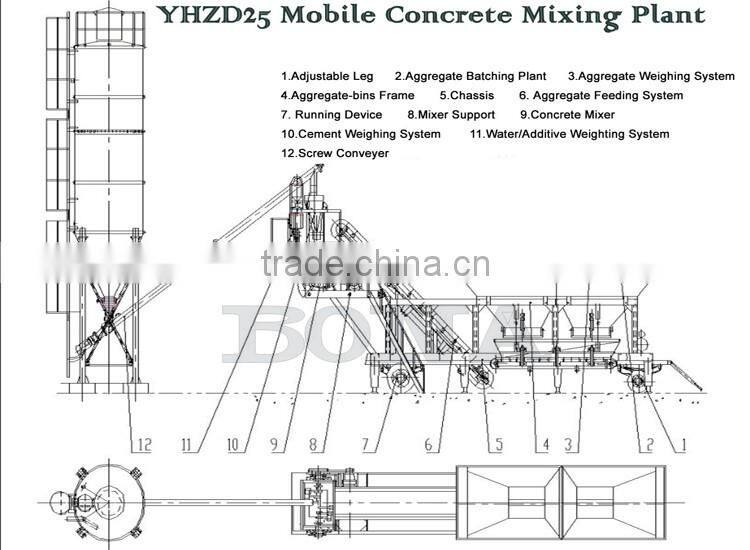

6.Particular suitable for small and  middle sized of concrete construction needs Schematics of Rapid Installation Concrete Mixing Station.

After-Sale Service:

1. Erection and Commissioning;

2. Operator Training;

3. Spare Parts Supply.

Mobile concrete machine parameter:

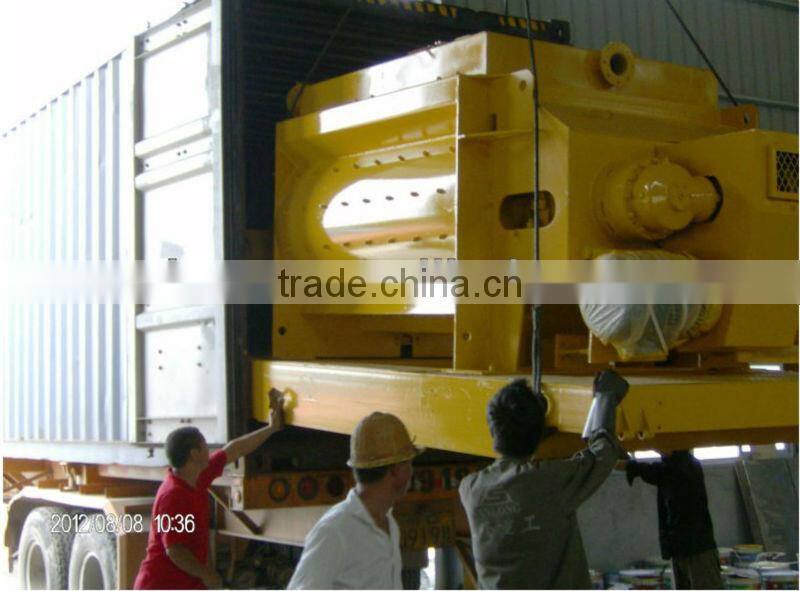

1.MIXING SYSTEM

Single shaft concrete mixer:   JD500

Volume:                               800L

Capacity:                              500L

Mixing speed:                       24r/min

Mixing blade:                        8 pcs

Mixer motor:                        18.5 kw

Weight:                                4700kg

2.AGGREGATE SYSTEM

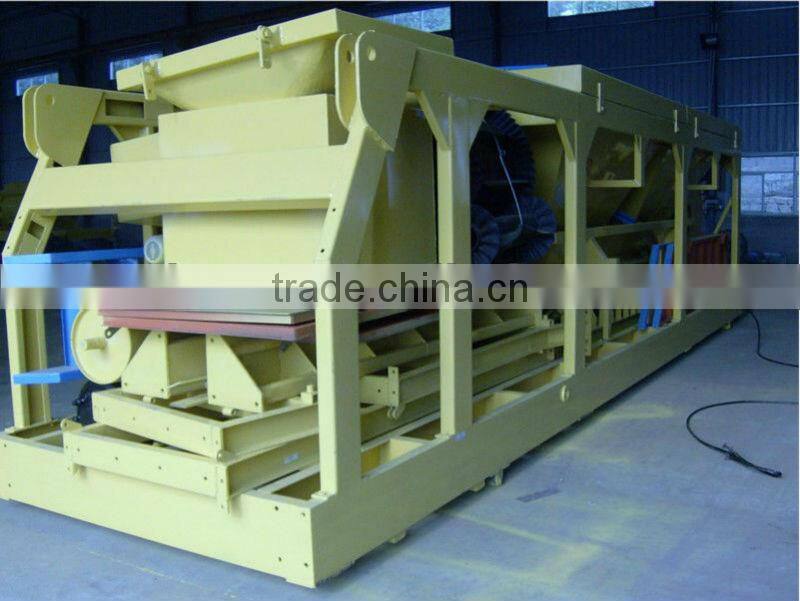

 2.1 Aggregate Batcher PLD800-4

 Volume:                    4×3m³=12 m³

 Sort of aggregate:            4

 Power:                         6.6 kw

Sand vibrator:               0.37kw

2.2.Aggregate Belt Conveyor 1 unit:

Width:                     650 mm

 Length:                   13800 mm

 Speed:                    1.6 m/s

Motor:                     5.5 kw

3.WEIGHING SYSTEM:

3.1 Aggregate weighing     1 unit

 Weighing Capacity:           1.6 m3

 Precision:                         ±2%

3.2 Cement weighing        1 unit

Weighing Capacity:           0.4 m3

 Precision:                        ±1%

3.3 Water Weighing         1 unit

Weighing Capacity:          0.2 m3

 Precision:                        ±1%

3.4 Additive Weighing      1 unit

Weighing Capacity:          0.02 m3

Precision:                       ±1%

4. AIR SYSTEM

Air Compressor:             1 unit

Power:                          5.5 kw

Pressure:                       0.67 Mpa

Air flow:                        0.7 m³/min

5.CONTROL SYSTEM:

PLC command and Control operation.

Main electrical components: Schneider/LG

17’’ colorful computer

 and Auto Control is freely changeable.

6.Cement Screw Conveyer: 1 unit

Diameter: Φ219mm

Length: 8m
