Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | Bona cement plant | |
| Model Number | YHZS60m3 mini mobile cement plant | Power(W) | 90kw | |
| Dimension(L*W*H) | 17500*4150*8100 mm | Weight | 20ton | |
| Certification | CE | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
mobile cement plant:1.Mixing capacity:60 m3/h
2.Mixing engine: double shaft 1000
3.PLD:1600
cement plant:
cement plant for sale:
1.Mixing capacity:60 m3/h
2.Mixing engine: double shaft JS1000
3.ISO9001 CE
cement plant:

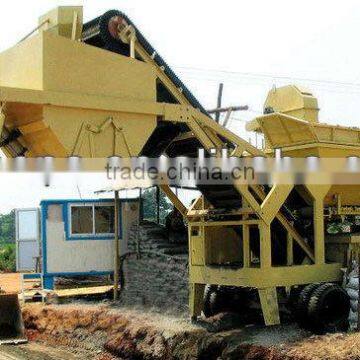

Characters of YHZS Series of mini mobile cement plant:
YHZS series mini mobilecement plant is bran-new and tandem mobile type, which owned great unique configuration, That tandem unit centralize many tasks of collecting material, weighing, mixing, delivering and etc, human- computer interface is simple and clear, work is stable, whole mobile is perfectly. It is best model used in road, bridge, port, water and electricity and jects.
1.Simple structure, large maintaining space, maintenance is convenient.
2.The promotion system multiple protection is stable reliable with high efficiency.
3.Space Occupied is small, installation and relocation are easy.
4.Using automatic industrial control system. The management function is powerful and reliable.
5.Major electrical components are used internationally well known brands.
6.Particular suitable for small and middle sized of concrete construction needs Schematics of Rapid Installation Concrete Mixing Station.
After-Sale Service:
1. Erection and Commissioning;
2. Operator Training;
3. Spare Parts Supply.
General Information of YHZS-60 cement plant:
Capacity: 60 m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 90kw
Total Weight: 20 Ton
Total Dimensions: 17500×4150×8100 mm
Transportation: Truck Trailer
Technical Information of YHZS-60 cement plant:
Model | YHZS60 mobile cement plant |
Capacity | 60m3/h |
Max. dragging speed: | 40km/h |
Discharging height | 3800mm |
After-sale service | Erection & commissioning, operator training |
Warranty | 12 months after erection |
|
|
Concrete mixer Model & Quantity | JS1000 Concrete Mixer, 1 unit |
Discharging volume | 1000L |
Charging volume | 1500L |
Mixing cycle | 60s |
Max. mixing size | 80/60mm |
|
|
Aggregate batching machine Model & Quantity | PLD2400, 1 unit |
Storage bins quantity | 2 or 4 sorts |
Aggregate scale hopper | 2400L |
Aggregate feeding to mixer by | Special Belt conveyor |
Measurement precision | 3750kg,±2% |
|
|
Weighing system Principle & Quantity | Force sensor, 1 set |
Water weighing precision | 360kg,±1% |
Cement weighing precision | 720kg,±1% |
Additive weighing precision | 36kg,±1% |
|
|
Control system Type & Quantity | Computer auto-control, 1 set |
Control panel board | Buttons, lights, meters, etc |
PLC brand | SIEMENS/SCHNEIDER |
Control panel board | Buttons, lights, meters, etc |
Electric components | Relays, contactors, etc |
Control cabin Size & Quantity | ≈4m2, 1 unit |
Air conditioner | 1 unit, Optional parts |
Printer brand | OKI/PANASONIC/EPSON |
Computer with control software | 1 unit |
Industrial monitor system | Optional parts |
Uninterrupted Power Supply (U.P.S) | 1 unit |
|
|
High-pressure air system Quantity | 1 set |
Air compressor | 0.6MPa |
Oil-water separator | 1 unit |
Solenoid valve | 1 set |
|
|
Documentation | 1 set |
Spare Parts | 1 set |
Operation Guide | 1 unit |
Maintenance Guide | 1 unit |
Electrical Diagram | 1 unit |
|
|
Cement storage and feeding system | Optional parts |
Screw conveyor diameter | 219/273mm |
Cement silo capacity | 50t/60t/80t/100t |
|
|
Dragging chassis | 1 set |
Drag steering | 1 unit |
Back axle & shock absorption | 1 set |
Back tyres | 1 set |
Adjustable framework | 1 set |
...
