Home > Products > Brick Machinery > Hot Sale Hydraulic Auto Paving Brick Making Machine South Africa
Hot Sale Hydraulic Auto Paving Brick Making Machine South Africa
- Qingdao Shanghai Dalian Tianjin etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hydraulic Fully Automatic Concrete Block Making Machine in India
-
Used Automatic Fly Ash Brick Machine for Sale
-
Used Concrete Block Making Machine for Sale in Usa
-
China QT10 15 Block Making Machine Durban
-
Construction QT4-15 Brick Making Machine for Sale South Africa
-
Hollow Block Machine Price in Coimbatore
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Molding Machine | |
| Method | Vacuum Extruder | Automatic | Yes | |
| Capacity | 17280-23040 bolcks/8 hours | Place of Origin | Henan, China | |
| Brand Name | Bona | Model Number | QT4-15 | |
| Voltage | 380V | Power | 25.5kw | |
| Dimension(L*W*H) | 9500x2800x2750mm | Certification | CE, ISO9001 | |
| Warranty | 12 months | After-sales Service Provided | Overseas third-party support available |
Product Description
Hot sale hydraulic auto paving brick making machine south africa

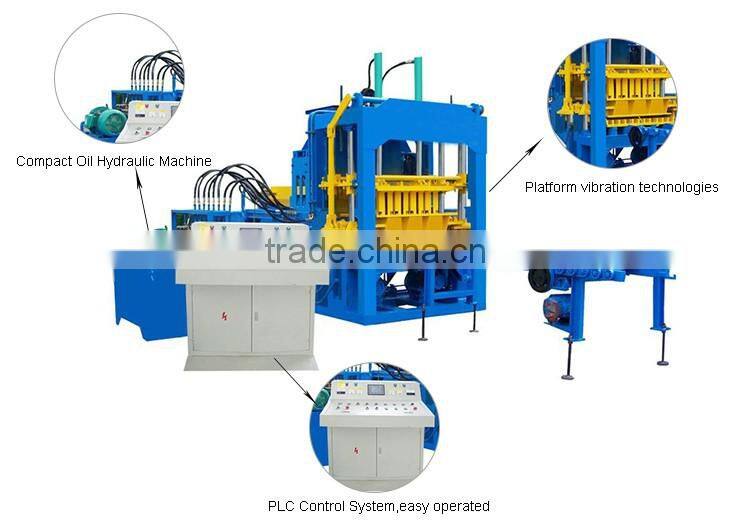

The auto paving brick making machine according to the standard of international.Many parts from abroad ensure the quality of machine,long service life and low energy use.The vibration system contains platform vibration and mould vibration so the products is very close-grained and produced quickly.The noval feeding system gives material exactly and average and assures the products having a high density.
The computer is of fault diagnosis system.Warning signal is propitious to eliminate the fault.Combine with long-distance controlling system,It can achieve scrutiny,controlling,diagnosis.
The machine can serve several purposes and can produce pavement bricks,riverside bricks,revetment bricks,square bricks,grassed bricks and so on with different molds.
Model | QT4-15 | QT5-15 | QT6-15 | QT8-15 | QT10-15 | QT12-15 |
Overall dimension(mm) | 7100x1600x2610 | 7400x1950x2800 | 7100x1500x3000 | 8300x1860x3000 | 9350x2320x2950 | 9350x2520x2950 |
Rated pressure | 16MPa | 21MPa | 16MPa | 21MPa | 21MPa | 21MPa |
Pallet Size(mm) | 1020x570 | 1100x550 | 850x680 | 950x900 | 1100x900 | 1300x900 |
Overall Power(kw) | 27.5 | 26.5 | 31.25 | 55.5 | 44 | 44 |
Molding Cycle(s) | 15-25 | 15-20 | 15-25 | 15-20 | 15-25 | 15-25 |
Main vibration from | Platform vibration | Platform vibration | Platform vibration | Platform vibration | Platform vibration | Platform vibration |
Main production Specification and Theoretical Productivity
Item | Specification size(mm) | Quantity Per Mold(pcs) | Cycle Molding | Per Hour(pcs) | Per Day(pcs/10h) | |
QT4-15 | Hollow brick | 390x190x190 | 4 | 15-20 s | 720-960 | 7200-9600 |
Porous block | 240x115x90 | 14 | 15-20 s | 2520-3360 | 25200-33600 | |
Standard brick | 240x115x53 | 28 | 15-17 s | 5930-6720 | 59300-67200 | |
QT5-15 | Hollow brick | 390x190x190 | 5 | 15-20 s | 900-1200 | 9000-12000 |
Porous block | 240x115x90 | 16 | 16-20 s | 2880-3600 | 28800-36000 | |
Standard brick | 240x115x53 | 32 | 13-15 s | 7680-8800 | 76800-88000 | |
QT6-15 | Hollow brick | 390x190x190 | 6 | 20-25 s | 864-1080 | 8640-10800 |
Porous block | 240x115x90 | 15 | 15-18 s | 3000-3600 | 30000-36000 | |
Standard brick | 240x115x53 | 30 | 15-17 s | 6300-7200 | 63000-72000 | |
QT8-15 | Hollow brick | 390x190x190 | 8 | 20-25 s | 1150-1440 | 11500-14400 |
Porous block | 240x115x90 | 21 | 15-20 s | 3780-5040 | 37800-50400 | |
Standard brick | 240x115x53 | 42 | 15-17 s | 9000-10000 | 90000-100000 | |
QT10-15 | Hollow brick | 390x190x190 | 10 | 20-25 s | 1440-1800 | 14400-18000 |
Porous block | 240x115x90 | 24 | 15-20 s | 4320-5760 | 43200-57600 | |
Standard brick | 240x115x53 | 52 | 15-17 s | 11011-12480 | 110110-124800 | |
QT12-15 | Hollow brick | 390x190x190 | 12 | 20-25 s | 1728-2160 | 17280-21600 |
Porous block | 240x115x90 | 27 | 15-20 s | 4860-6480 | 48600-64800 | |
Standard brick | 240x115x53 | 62 | 15-17 s | 12700-14400 | 127000-144000 | |

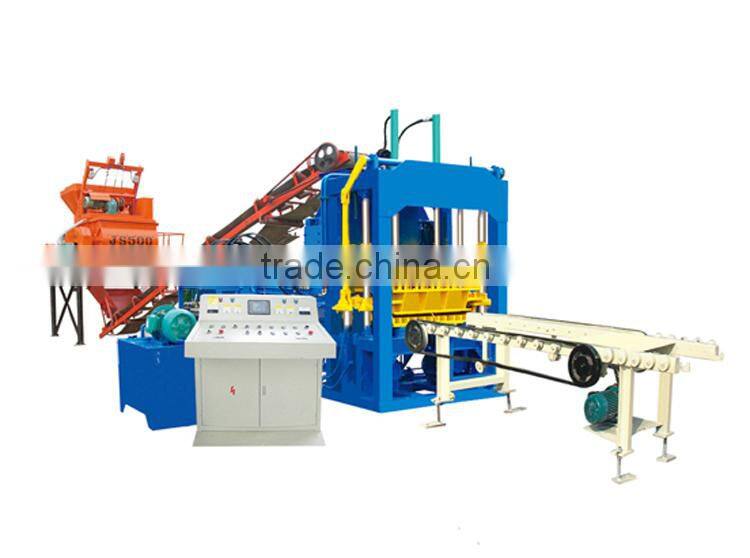

| This auto paving brick making machine use JS500 concrete mixer,this is a twin shaft compulsory concrete mixer,durable and high efficiency. | Cemnt silo is one part of brck making line,we provides kinds of type of cement silo,50ton,80ton,100ton,150ton,etc.It frees traditional on-site fabrication and get rid of the rough and defect of condition limit caused by manual welding and torch cutting,it has the advantage of beautiful appearance,short duration,easy to install,recycle after used. |
PLD concrete aggregate machine is a kind of front-desk automatic batching equipment equipped with the mixer.It can finish automatically the batching precess of sand,stone,cement etc.This products adopt electric weighing,computer control,fast speed and high batching accuracy,easy operation,long service life. | The pigment feeder is one part of this brick making machine,it has the features with feeding evenly,so with this part,can produce different colours of bricks you want. |
Automatic stacker is one part of this type brick making machine,its application let the brick stacking more convenient and don’t need spend more time in that. | This mould of brick machine adopt heat treatment,wire-electrode cutting technology,so it has the features with wear-resistance and long service life. | It is a compact oil hydraulic machine according to the standard of international.This part ensure the quality of machine and long service life. |
The mould and brick show:
Model:QTJ4-26 Model:QTJ4-35 Model:QTJ4-45 Model:QT3-20
Capacity:3000-4000pcs/day Capacity:2200-2700pcs/day Capacity:2000-3000pcs/day Capacity: 4000-7200pcs/day
Click here see more Click here see more Click here see more Click here see more
Model:QT4-15 Model:QT4-20 Model:QT5-15 Model:QT6-15
Capacity:7200-9600pcs/day Capacity:5800pcs/day Capacity: 9000-12000pcs/day Capacity:8600-10800pcs/day
Click here see more Click here see more Click here see more Click here see more
Package terms: Easily damaged auto paving brick making machine part use sturdy wooden case and cartons packing.
Other parts are in nude, 20GP, 40 HQ standard exporting package, or according to the buyer's request.
Delivery time: 10-15 workdays (in stock); 25-35 workdays (out of stock).
Means of transportation:
1. By sea, Main port: Qingdao,Tianjin,Shanghai,Dalian,Quanzhou,Guangzhou,Shenzhen port.
2. By rail, Inland port: At mohe port, Fuyuan port, Suifenhe port, Alataw Pass, Pingxiang port.
Established in 2005, we have built firm relationships with our suppliers of materials & components. Thus we can reduce the cost of our products and ensure the benefit of our customers.As an ISO 9001:2000 certified company, we insist on “Innovating, Perfect, Quality and Service”, and earn a good reputation in the worldwide market.....Read more
Perfect pre-sale service: We offer reasonable quotation and professional product knowledge
to consulting services.
We will design reasonable product configuration and the project feasibility plan for you according
to your requirements.
Sales service: Arrange production in time and notify the customer production schedule, if the
customer request, we can provide professional security of transportation and insurance, timely delivery.
After-sale service: Arrange the engineers to go abroad to installation, commissioning equipment,
follow-up service, help customers to solve the problem.
Note: We can make an plan for your project according to your raw materials and capital.
We can provide you with the machine suitable for your local market demand.
And if you order auto paving brick making machine, we can give you a discount.
