Rotavator/Rotary Cultivator
- qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Diesel | Power(W) | 1.1 | |
| Certification | ISO9001 | Warranty | 2years | |
| Use | farm | Place of Origin | Shandong, China | |
| Brand Name | hr | Model Number | 1GQN | |
| Weight | 450 |
Product Description

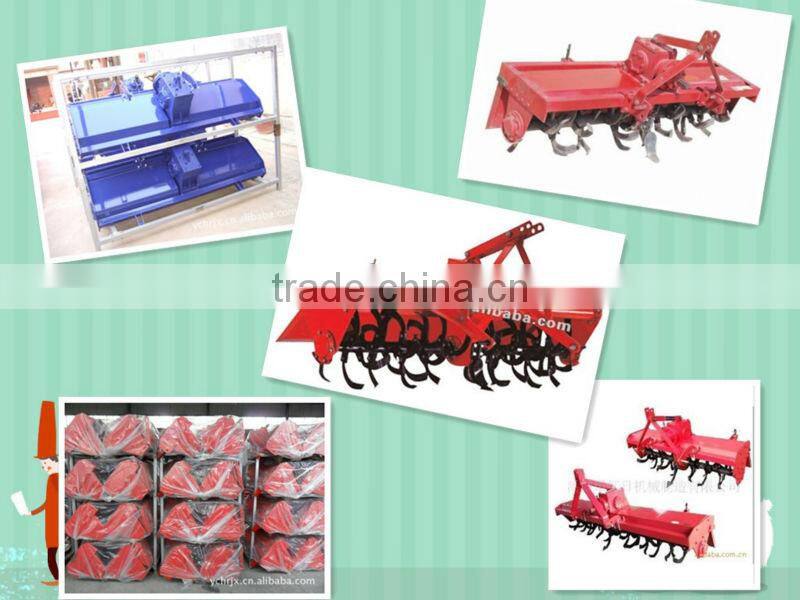

Rotavator/Rotary cultivator
Rotary Tiller is driven by the tractor's out-put shaft. During operation, the soil is crumbled by the rotating and forwarding of the blades fixed on the shaft. It also can be used as shallow tilling and covering on the Stalinized soil to prevent the salt in the soil. The machine will fulfill the working of cleaning stubbles and weeds, turning and covering green fertilizer and preparing vegetable fields, etc.
After tillage, the land surface is leveling and smooth, the cover burden is closely, working efficiency is high and oil consumption is lower.
Main Specifications:
| Model | 1G-120 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 | 1GQN180 | 1GQN200 |
| Working Width (cm) | 120 | 125 | 140 | 150 | 160 | 180 | 200 |
| Working Depth (cm) | Dry land 8~14,Paddy field 14~16 | Dry land 8~16,Paddy field 10~18 | |||||
| Type of Blade | IT225 | IT245 | |||||
| Nos of Blade (per) | 24 | 24 | 30 | 34 | 38 | 50 | 58 |
| Overall Dimensions (L×W×H) (cm) | 90×154×109 | 90×136×109 | 90×169×109 | 90×170×109 | 90×188×109 | 102×210×115 | 102×235×115 |
| Total Weight (kg) | 170 | 182 | 214 | 240 | 260 | 405 | 420 |
| Rotary Speed of Tractors' PTO (rpm) | 540 | 540/720 | |||||
| Rotary Speed of Blade Axle (rpm) | 199 | 213 | 200(Tractors' PTO is 540rpms),197(Tractors' PTO is 720rpms) | ||||
| Working Speed (km/h) | 1 ~ 3 | 2 ~ 5 | |||||
| Productivity (ha/h) | 0.3-0.47 | 0.3-0.47 | 0.33-0.0.5 | 0.36-0.56 | 0.38-0.62 | 0.53-0.74 | 0.6-0.8 |
| Hitch Type | three-point mounted | ||||||
| Matched Power (kw) | 13.2-18.4 | 13.2~18.4 | 18.4~22 | 22~29.4 | 29.4~36.7 | 36.7~40.4 | 40.4~55 |
