Home > Products > Disc Harrows > Southeast Asia Farm Equipment Compact Tractor Disc Harrow
Southeast Asia Farm Equipment Compact Tractor Disc Harrow
- QINGDAO CHINA
- T/T PayPal
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Diesel | Power(W) | 25-30Hp | |
| Certification | ISO9001 | Warranty | within one years | |
| Use | Breaking the hardened field surface ,cutting up straws | Place of Origin | Shandong, China | |
| Brand Name | HR | Model Number | 1BQX-1.5 | |
| Weight | 240kg | Dimension(L*W*H) | 1905*1550*1118mm | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Southeast Asia farm equipment compact tractor disc harrow
Please click ~~~~~~~
Agricultural equipment tractor farm harrow in plowing machine
Yucheng Hongri Machinery Co.,Ltd.is a professional manufacturer of plough .There is an existing advanced production line of forging,casting ,machining ,heat treatment in the company.
Our company has been a reliable and excellent manufacturer of disc blades, plough discs , disc harrow , disc plough and disc ridger .We can supply all various discs according to customers' drawing and samples .
1BQX-1.5 mini tractor offset disc harrow description:
- Wide space operation
- Narrow space transportation
- Reasonable structure
- Durable service
- Convenient to operat and maintain
- Disc blades : 460mm x 3mm
- Material of disc : 65Mn Spring Steel
- Hardness of disc : 38-46HRC
- Bearing : sealed bearing
1BQX-1.5 compact tractor disc harrow specification :
Items | Unit | 1BQX-1.5 |
Working Width | Mm | 1500 |
Working Depth | Mm | 100~140 |
Dia. Of Disc | Mm | 460 |
No. of Disc | Pcs | 16 |
Matched Power | Hp | 25-30 |
Linkage |
| three-point mounted |
Productivity | Ha/h | 0.6 |

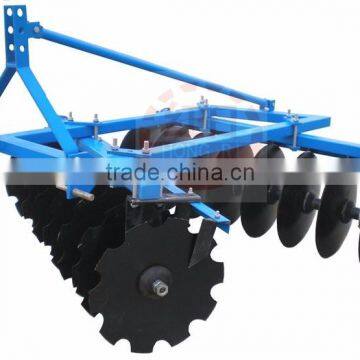

1BQX-1.5 compact tractor disc harrow picture:
1BQX-1.5 compact tractor disc harrow package :
Iron case , 10 units full set packed in one iron case,the size is 2200*900*950mm . The 20'' containter can pack 80sets .
The package picture is as follows:
According to the Southeast Asia market requirpment ,we have produced many kinds of light duty disc harrow , look at the following picture :
1.1BQX-1.1,12pcs light duty disc harrow , can match with 12-15hp tractor.
2.1BQX-1.3,14pcs light duty disc harrow , can match with 15-18hp tractor.
3.1BQX-1.7,18pcs light duty disc harrow , can match with 30-35hp tractor.

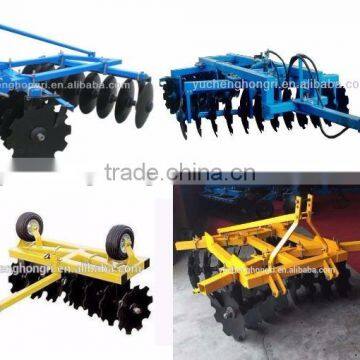

Our company can produce many other kinds of farm machine, look at the following pictures :
1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight
4.More information, please contact us
Trust me! Trust your choose!
Contact person : Lyna
Phone : +86-15165936190
TM: cn220099016
