Home > Products > New Products > Rebar Threading Reinforced Roll Silk MachineHBG-40B

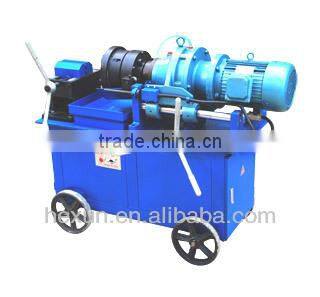

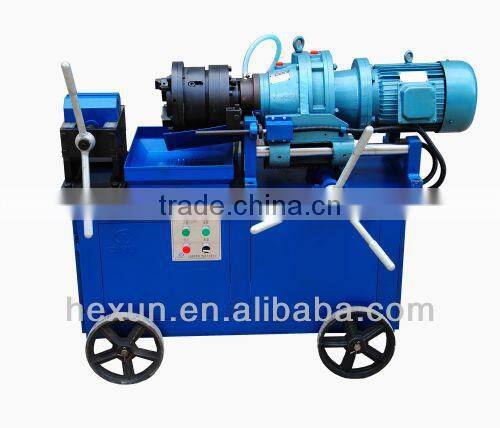

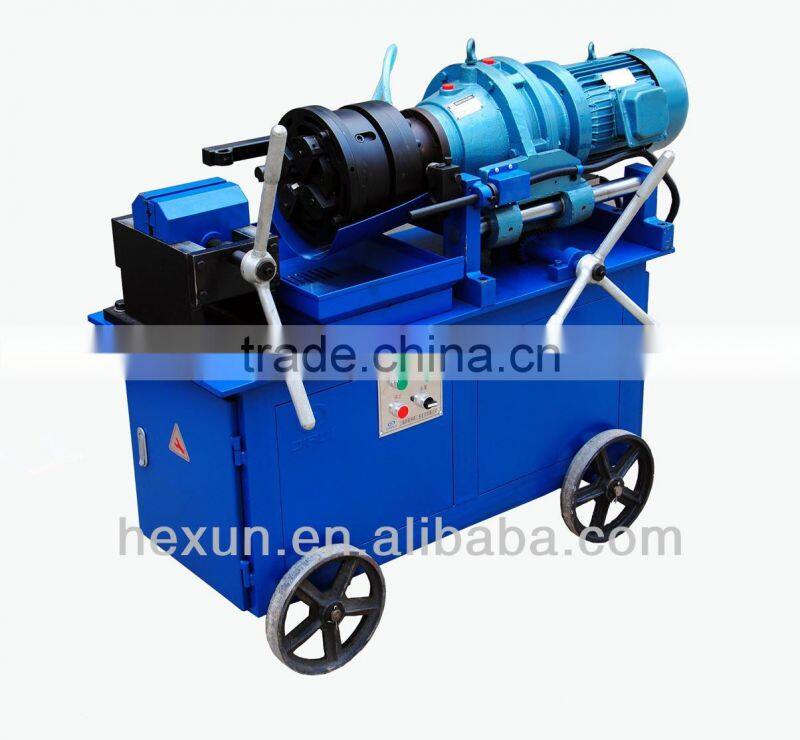

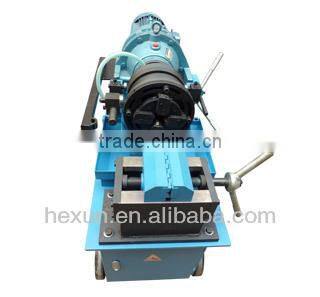

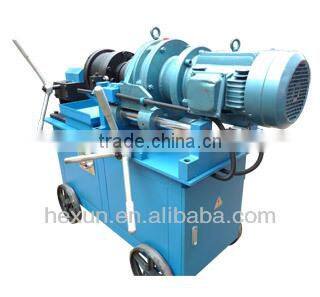

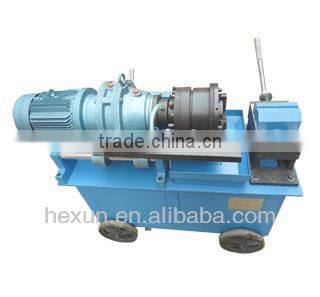

Rebar Threading Reinforced Roll Silk MachineHBG-40B
- NINGBO
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | process thread on rebars | |
| Production Capacity | 82 - 48r/min | Place of Origin | Zhejiang, China | |
| Brand Name | HAO BAO | Model Number | HBG-40B | |
| Voltage | 380V 50HZ | Power(W) | 4000 | |
| Weight | 450 | Certification | ISO9001:2008, ISO9001:2008 | |
| Warranty | factory policy | After-sales Service Provided | No overseas service provided |
Product Description
Specifications
rebar threading reinforced roll silk machine HBG-40BCompleting machining of rebar threads at one time
rebar threading reinforced roll silk machine HBG-40B
Applications
HBG-40B rebar rib stripping and rolling straight thread machine tool is mainly used in machining construction engineering rolling straight thread heads with ribs. As the key equipment to realize rebar connection, it can machine φ16-φ40mm HRB335-500 ribbed rebar.
Features
Completing machining of rebar threads at one time and the teeth of the machined threads are rich and smooth;
Adopting unique spiral angle lifting technology, convenient and rapid for thread tightening, improving working efficiency;
Optimized adjusting discs, adjusting the size of rolling threads at one time, no replacement of tool rests;
Adopting eccentric shaft design, inter tooth plate adjustment, high machining efficiency;
Three points in one line, high concentricity, high stability;
Rebar realizes easy feeding, automatic return after thread rolling of the machine tools, daily production of 600-900 pieces of thread heads every day;
Machinable rebar screw length ≥90mm.
Main Technical Parameters
1,Main motor power: 4KW 8A;
2,Power supply: triphase 380V 50HZ
3,Reducer speed ratio: 17, 23, 29 shaft output revolution (82-48) r/min;
4,Machined rebar diameter scope: Φ16-Φ40mm (HRB335, HRB400, 500)
