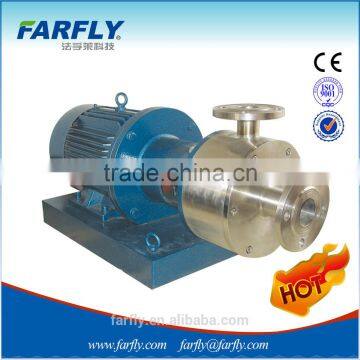

FSW1High Shearing Emulsifying machine, homogenizing mixer, cell pump

Technical Specification

Features:

- Suitable for industrial online continuous production
- Wide viscosity range than in batch high shear mixer
- No batch difference
- High efficiency,low noise

Main technical data:

Capacity
Self-pumping throughputs of 20 to 15,000 litres/h.
No Bypassing
Product cannot bypass the precision rotor/stator workhead.
Interchangeable Workheads
Single stage rotor/stator configurations workheads as standard. For those applications that require greater shear, interchangeable multistage configurations workheard can be used.
Materials of Construction
Product contact in SS304 or 316L stainless steel .
Motor Specification
Standard and explosion proof motors (Siemens ,ABB etc) are available as standard.
Inlet and Outlet Connections
All sanitary screw or flange fittings available on request (e.g. ISS, D/N, RJT, SMS, Tri-clamp, etc.).
Sealing
Doulbe-end mechanical seals are selected according to the process requirements, under high pressure working condition the matching sealing liquid pressurized can is needed.
Cleaning
All Farfly In-Line mixers are designed for cleaning in place (CIP and SIP).
Cooling
Cooling jacket structure as standard.
