lab dispersing machine
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Mixer Type | Agitator | |
| Product Type | Paint | Application | Liquid with Suspended Solids | |
| Additional Capabilities | Other, Mixing | Place of Origin | Shanghai, China | |
| Brand Name | FARFLY | Model Number | FDG | |
| Max. Loading Capacity | customized | Voltage | 220V/380V | |
| Power(W) | 45/55 kw | Dimension(L*W*H) | customized | |
| Certification | CE/ISO9001 | Warranty | 3 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

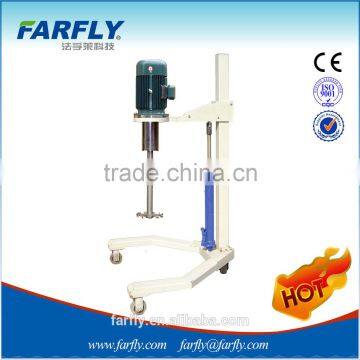

FDG45/55 Dispersing machine :
General:
The series of FDG high speed mixers are suitable for pro-ducing paint, ink, coating, dyestuff, paper making and so on in chemical industry. The mixers are used for wet dispersing and mixing liquid-solid material.Non-grade speed adjustment by frequency converters, hydraulic elevating, working steadily, use and maintenance expediently.
After Sales Service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the meals for Seller’s engineer. We will send some free set of spare parts for you change it.
Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
Package:
Standard wooden Case Packing
Shipment terms:
We usually take FOB, but we can also accept EXW,CIF,CN
Technical data:
Tpye/Parameter | Power (kW) | Speed (rpm) | Disc dia (mm) | Lifting height (mm) | Pump Power (kW) | Capacity (L) | Weight (Kg) | Dimensions(mm) | ||
A | B | C | ||||||||
FDG1.5/2.2 | 1.5/2.2 | 1450/1200 | 150 | 500 | 0.55 | 100 | 120 | 1400 | 940 | 350 |
FDG4/5.5 | 4/5.5 | 1450/1200 | 200 | 800 | 0.55 | 200 | 400 | 1700 | 1300 | 600 |
FDG11 | 7.5/11 | 1450/1200 | 250 | 900 | 0.55 | 400-600 | 800 | 1750 | 1800 | 900 |
FDG30 | 22/30 | 1450/1200 | 350 | 1200 | 1.1 | 600-1000 | 1500 | 2200 | 2100 | 1100 |
FDG55 | 37/45/55 | 1200 | 500 | 1600 | 1.5 | 1000-2500 | 2100 | 2600 | 2700 | 1400 |
FDG90 | 75/90 | 1000 | 560 | 1600 | 2.2 | 5000 | 2600 | 3300 | 3000 | 1600 |
FDG132 | 110/132 | 900 | 610 | 2200 | 4 | 10000 | 4500 | 3800 | 3800 | 1800 |
