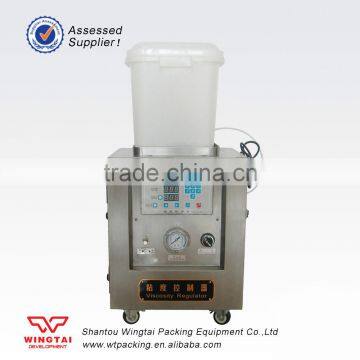

Automatic Viscosity Controller

Automatic Viscosity Controller

Description

This equipment can automatically dilute ink and glue viscosity, suitable for printing machinery. It is easy to operate, no need to adjust ink manually, just set the viscosity value according to the product requirements. Use pulse pulsating inspector to inspect the viscosity, and the pneumatic diaphragm pump to circulate ink and glue.

Technique parameters

Viscosity tracking range: 12-50s(No3 viscosity cup)

Voltage: AC 220V

Power: 15W

Ink circulation capacity: 10-15L/min

Air pressure: 4-8bar

Outline dimension: 440mm*260mm*650mm

Net weight: 19kg

Characters

1. Take the pneumatic pump’s reading unit “Hz” as the controlling unit .

2. Bigger digital screen display, easy to observe, setting up and adjust .

3. One single controller can finish the task of ink circulating, stirring, viscosity measuring and    controlling .

4.The stable ink viscosity can reduce the printing deficiencies .

5. Use pneumatic diaphragm pump to circulate ink and glue, safe and stable .

6. Only half a gallon cleaner and one minute, you will finish the cleaning work .

7. Auto lubricating system, prolong the service life .

8. Special ink tube, more soft and flexible .

9. Explosion-Proof, safe, stable and precise, the automatic controller can keep printing in line with overprinting and coating .

Function

Mainly used in printing machinery to control ink and glue’s viscosity.
