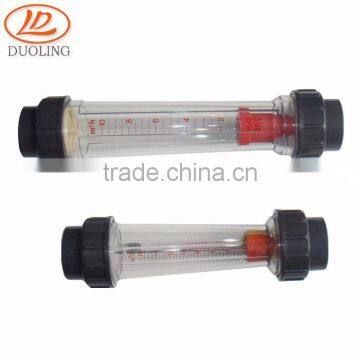

Plastic LZS Flow Meter- Flow Measuring Equipment
- 100000 Piece / Pieces per Month
- SHANGHAI
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Duoling | |
| Model Number | LZB-S |
Product Description
Place of Origin | Jiangsu, China (Mainland) |
Model Number | LZB-S (LZS) |
Material of Tube | AS or PC |
Material of Other Parts | ABS |
Color | Gray or White Milk |
Media | Liquid |
Connection | BSP Thread, socket-end(PVC) or Flange |
Long Tube Type (Without Guide Rod) | ||||||
Model | Measure Range | Length (mm) | Connection Type | Accuracy: ±4%
Pressure: ≤1Mpa
Temperature :0~60 °C | ||
Socket-end Connection Size (mm) | BSP Thread Connection Size | |||||
LZB-15S | 2-20 L/h 3-30 L/h 4-40 L/h 5-50 L/h 6-60 L/h 10-100 L/h 16-160 L/h 25-250 L/h 40-400 L/h 50-500 L/h 60-600 L/h 100-1000 L/h | 280 | Φ20 | G½" | ||
LZB-25S | 100-1000 L/h 160-1600 L/h 250-2500 L/h 300-3000 L/h | 380 | Φ32 | G¾" | ||
LZB-40S (with guide rod) | 0.4-4 m³/h 0.6-6 m³/h 1-10 m³/h | 420 | Φ50 | G1¼" | ||
LZB-50S
| 0.4-4 m³/h 0.6-6 m³/h 1-10 m³/h | 435
| Φ63
| G1½"
| ||
1.6-16 m³/h (with guide rod) | ||||||
Short Tube Type (with guide rod) | |||||
Model | Measure Range | Length (mm) | Connection Type | Accuracy: ±4%
Pressure: ≤1Mpa
Temperature :0~60 °C | |
Socket-end Connection Size (mm) | BSP Thread Connection Size | ||||
LZB-15S (with guide rod) | 5-50 L/h 6-60 L/h 10-100 L/h 16-160 L/h 25-250 L/h 40-400 L/h 50-500 L/h 60-600 L/h 100-1000 L/h | 200 | Φ20 | G½" | |
LZB-25S (with guide rod) | 100-1000 L/h 160-1600 L/h 250-2500 L/h 300-3000 L/h | 230 | Φ32 | G¾" | |
LZB-32S (with guide rod) | 400-4000 L/h 600-6000 L/h | 288 | Φ40 | G1" | |
LZB-50S (with guide rod) | 0.4-4 m3/h 0.6-6 m3/h 1-10 m3/h 1.6-16 m3/h | 341 | Φ63 | G1½" | |
LZB-65S (with guide rod) | 3-16 m3/h 5-25 m3/h 8-40 m3/h 10-50 m3/h 12-60 m3/h | 430 | Φ75 | G2" | |
Large Flowrate Flange Type (with guide rod) | ||||
Model | Measure Range | Length (mm) | Connection Type | Accuracy: ±4%
Pressure: ≤1Mpa
Temperature :0~60 °C |
LZB-80S (with guide rod) | 3-16 m3/h 5-25 m3/h 8-40 m3/h 10-50 m3/h 12-60 m3/h | 533 | 3” Flange | |
LZB-100S (with guide rod) | 8-50 m³/h 10-60 m³/h 14-90 m³/h 18-120 m³/h 18-150 m³/h 20-180 m³/h 20-200 m³/h 20-220 m³/h | 555 | 4” Flange | |
LZB-125S (with guide rod) | 5” Flange | |||
LZB-150S (with guide rod) | 6” Flange | |||
LZB-200S (with guide rod) |
20-200 m³/h 25-250 m³/h 30-300 m³/h 35-350 m³/h 40-400 m³/h | 830 | 8” Flange | |
LZB-250S (with guide rod) | 10” Flange | |||
LZB-300S (with guide rod) | 12” Flange | |||
1.We can customize the connection size if you need JIS standard or ANSI standard.
2. If used for acid water, we can wrap guide rod with PTFE and use viton o-rings.
3.All these models can be equipped with flange if required.
4.Some models can be equipped with upper or lower limited alarm switch if required.
1. Shipping Ways:
1. By express: DHL, TNT, UPS, FEDEX, EMS etc, usually for small or regular and urgent orders;
2. By sea transportation for bulk quantity;
3. By air transportation.
2. Delivery time:
Shipping times are approximately 5-7 days for sample orders and 7-15 days for regular orders, after payment is done instantly by T/T, W.U. (weekends not included).
If we have any stock for your order, we will shipped out goods immediately on receipt of your payment.
Returns:
Situation 1
If no quality problem, there is no returns or refund. If there’s any problem not caused by us, we are pleasure to fix it by sending some spare parts to you, and please bare the shipping cost.
Situation 2
For any quality problem caused by us, we provide refund for returns made within 15 business days of the delivery date. Or we fix it or make new ones for you as request.
3. Payment:
We accept TT payment(Bank Transfer), L/C, Western Union & Cash, etc..
Please remember to send us scaned recipt of T/T or other payment copy by Email, this will speed up the processing of your order.
4. Warranty
All our products have at least 1 year warranty. If there’s any quality problems during the warranty period, we ship new spare parts for replacement free for you, or we accept return policy.
