3" Automatic Backwash Filtration System / 3-Unit Disc Filter Machine
- SHANGHAI
- T/T Credit Card
You May Like
-
auto ceramic membrane coupling water filter
-
auto manual drinking seawater flow meter backwash filtration system
-
auto manual seawater flow meter pool backwash filtration system
-
2way 3way plastic quick coupling valve hydraulic air drive
-
plastic ball solenoid valve with coupling DN40 DN50 DN65 DN80 DN100 DN150
-
plastic coupling check solenoid valve DN40 DN50 DN65 DN80 DN100 DN150
Product Details
| Condition | New | Type | Other, disc filter | |
| Medium Material | PP | Place of Origin | Jiangsu, China | |
| Brand Name | Duoling | Model Number | PLN | |
| Dimension(L*W*H) | 1050*800*1320 | Weight | 185kg |
Product Description

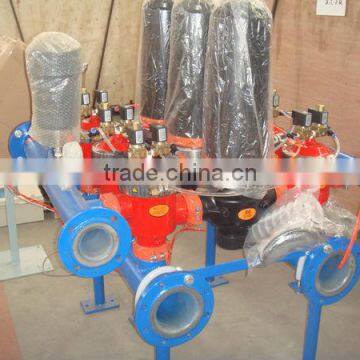

3" Automatic Backwash Filtration System / 3-Unit Disc Filter System
Characteristic:
Simple structure disc filter
Standardized module, save occupied space
Easy to installation
Constant filtering efficiency
High efficiency automatic backwash
Energy and water saving
Flow continuously
Full automatic control
Low cost, reliable and long service life system
Advantage | Characteristic |
| Constant filtering efficiency | As core element of filter, the uniformity of groove style filtering superposition piece reaches to international first rate standard. The filter is in effect for all kinds of suspension impurity including inorganic and organic impurity. |
| High efficiency backwash, energy and water saving | The unit of backwash will be finished for 7-20 sec only. In general the amount of consumed water in backwash is less than 0.5% of amount of filtering water. For viscosity impurity, high effective washing also be reached. The suitable scope is wider. |
| Full automatic control, flow continuously | The filtering and backwash may be carried out at the same time. The loss of pressure and flow rate produced by automatic maintenance of system is less. The backwash is carried out in turn one by one and the others work normally. |
| Low cost, reliable and long service life System | The system has been identified through IS9002 international quality system. And all the products are tested overall before sold. It's almost without daily maintenance, installation and convenient operation, reliability transportation. |
Application | Description | Function | Industry |
Cooling circulating water treatment | Cooling water equipment, instruments and products cooling water | It can solve the block problem effectively and reduces energy consumption and dosing amount too and prevent from stopping caused by trouble and reduce the expense of system maintenance. | Steel and iron, power plant, petrochemical, plastic, running water primary filtration, machinery, etc |
| Membrane water treatment | Membrane system protection | The purpose of protecting precision element of filter and prolonging its life can be reached. | Water treatment |
Water treatment | Spraying water treatment, protection granulated substance ponders, filter element, filter pocket, ion-exchange reactor, etc. | Save total amount of water to be used and improve the quality of water and reduce or avoid sewage discharging directly to lead environmental pollution. | Electric power, chemical, automotive, paper-making and other industries |
Seawater filtration | Pre-treatment of seawater desalt | Remove impurity and ocean microorganism in seawater. The property of salt resistant and anticorrosion of plastic filter is better than metallic filter with expensive cost. And prolong its lift. | Water treatment |
| Other chemical fluid | Solvent, emulsion, etc. | Meet the production requirements. Protect equipments. | All industries |
Drip irrigation filtration | Cotton, fruit trees drip irrigation filter | Protect drip outlet | Large areas of crops land |
Working Principles
The filtering superposition piece is a carrier for the mixture treatment. It superimposes by a group of a double-sided belt different direction trench's plastic disk sheet. While water passes through filtering superposition piece, under the action of spring and hydraulic the filtering superposition piece will be pressed closely, then they'll form numerous crossing of superposition piece. And impurity granule will be withheld at those crossing. The width of lamination is 12-14mm. It's made of high-quality engineering plastic, high wear resistance. Filtration accuracy depends on the depth and number of grooves.
1) Endogenous Backwash System:
2) Exogenous Backwash System:
