Continuous Biodiesel Production Plant (Turn-key Project)

FOB Price

US$ 25,000 - 2,000,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	SENSTN
Model Number	HT-2	Voltage	380V
Power(W)	90KW	Weight	20T
Warranty	One Year.	After-sales Service Provided	Engineers available to service machinery overseas

1. Lower investment and higher profit
2. No pollution
3.turnkey project

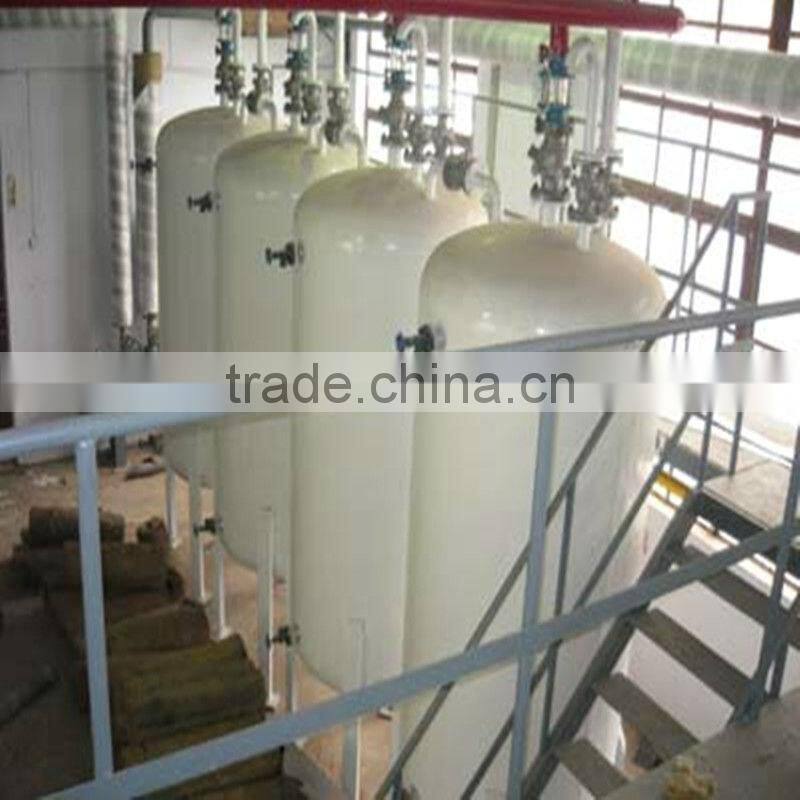

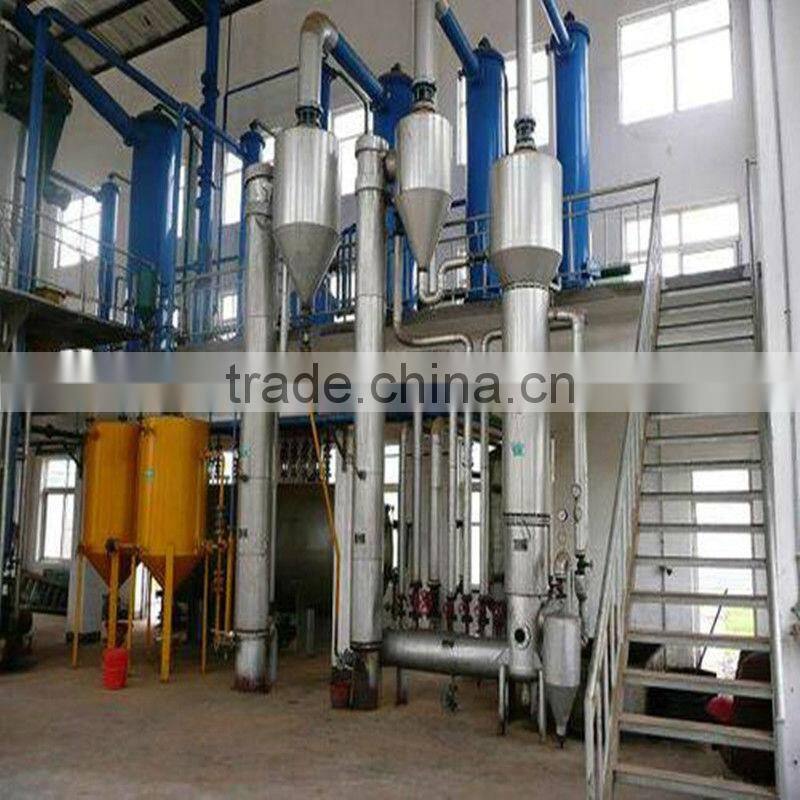

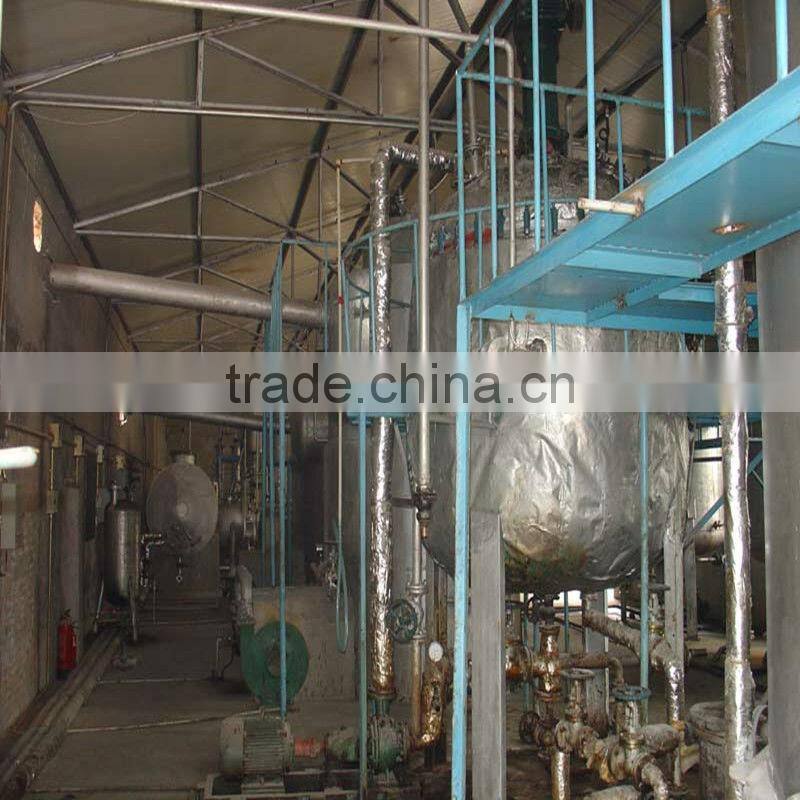

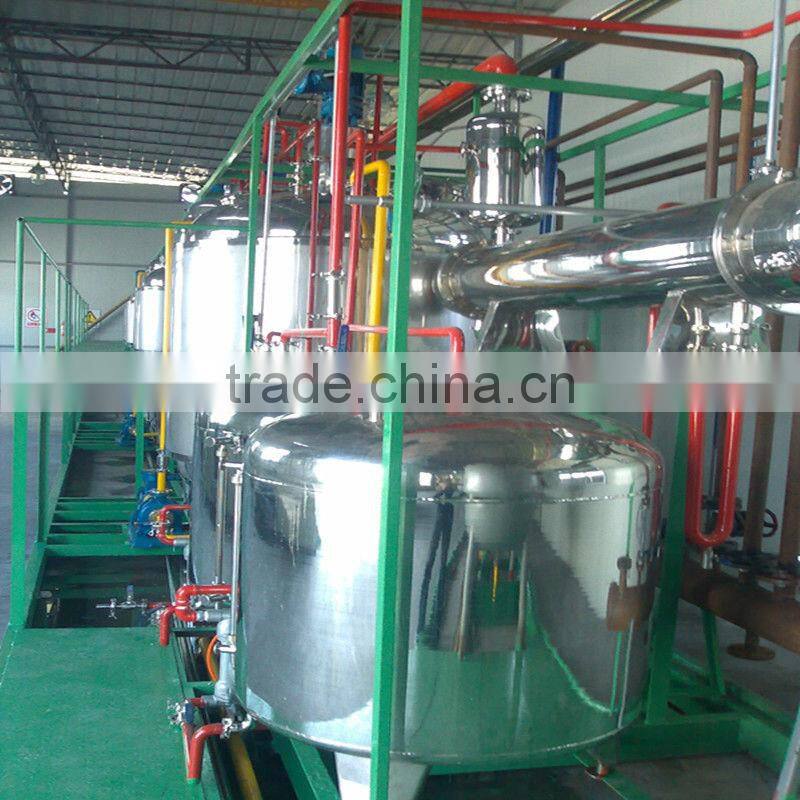

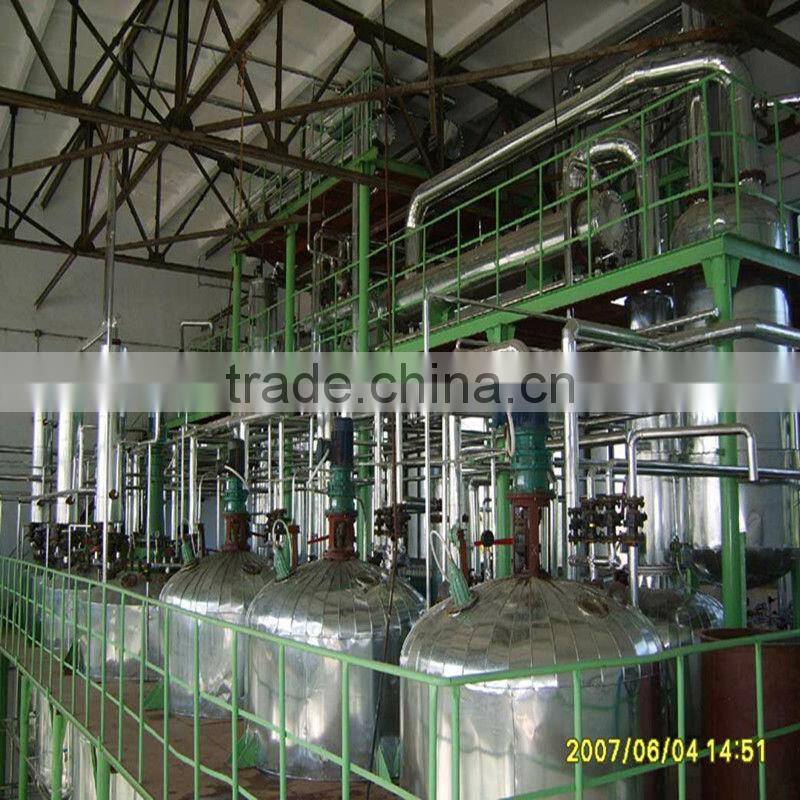

Continuous Biodiesel Production Plant (Turn-key project)

Equipment list of 5TPD bio-diesel pretreatment workshop
No.	Equipment name	Specification	Qty	Price(USD)		Motive power(KW)		Remark
No.	Equipment name	Specification	Qty	Unit	Total	Unit	Total
1-01	Oil refining boiler	LYY140	2	3000.00	6000.00	3.00	6.00
1-02	Alkaline water and hot water tank	RJX1.0	1	330.00	330.00
1-03	Alkali melting tank	HJX1.0	1	330.00	330.00
1-04	Lye pump	AFB40-32	1	500.00	500.00	1.50	1.50
1-05	Dehydration&decoloration pot	LYS140	1	14360.00	14360.00	3.00	3.00
1-06	Separator	FLQ60	1	330.00	330.00
1-07	Vacuum pump	PSB-160	1	330.00	330.00
1-08	Pool	12m3	1	0.00	0.00			Provided by buyer
1-09	Water pump	IS80-65-160	1	500.00	500.00	7.50	7.50
1-10	Oil pump	YBL50/32-140	1	580.00	0.35	2.20	2.20
1-11	Oil pool	YC200X150	1	830.00	830.00
1-12	Plate filter	YLB65X30	1	7500.00	7500.00
1-13	Decoloring pump	YTS6/40	1	500.00	500.00	5.50	5.50
1-14	White earth pot	BT60	1	250.00	250.00
1-15	Gear oil pump	ZCY10/4-1	1	580.00	580.00	4.00	4.00
1-16	Power distribution cabinet			1200.00	1200.00
1-17	Installation material			3000.00	3000.00
1-18	Installation and adjusting							Calculate in addition
1-19	Total				36540.35		29.70
