Home > Products > Sand Making Production Line > Rubber Belt Conveyor

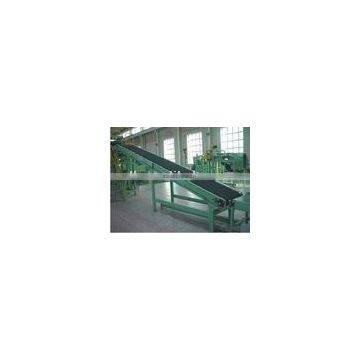

Rubber Belt Conveyor
- Tianjin Qingdao Lianyungang
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Bucket Conveyor, Belt Conveyor | |
| Material | Rubber | Material Feature | Heat Resistant | |
| Structure | Belt Conveyor | Load Capacity | 25-980M3 | |
| Place of Origin | Henan, China | Brand Name | DAHUA | |
| Model Number | B500, B650,B750,B1000,B1200 |
Product Description
Specifications
The belt conveyor has features of simple structure, large conveying amount, easy maintenance.The belt conveyor produced by our company has the strongpoints of large conveying amount, simple structure, easy maintainance, high standardization degree,etc, which is widely used in mining, metallurgy, coal and other industries. The belt conveyor can be used to transfer bulk materials or materials in pieces.According to different transferring requirements, the transferring system can be of only one belt conveyor or consists of several conveyors, or combined with other transferring equipments. The belt conveyor can be installed horizontally or aslope to meet the needs of different transferring requirements.
Working principle:
The motor drives the driving rollers of the belt conveyor, and drives the roller by the strong belt advances. Materials are conveyed from the original place to the place where they are needed.
Technical parameter:
| Belt Width(mm) | Belt Length (m) / Power (kW) | Belt Speed (m/s) | Capacity (t/h) | ||
| 500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 45-100 |
| 650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 70-120 |
| 800 | ≤10/4 | 10-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 120-180 |
| 1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-22 | 1.3-2.0 | 160-250 |
| 1200 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2.0 | 200-400 |
Contact Us
- Zhengzhou Dahua Mining Machinery Co., Ltd.
- Contact nameHongliang Liu Chat Now
- Phone86-371-67849628
- AddressThe East of Sanshili Industry Zone,Zhengshang Road, Zhengzhou, Henan
