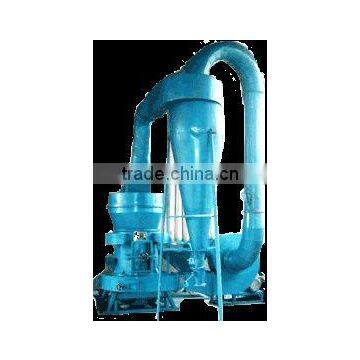

High Efficiency and Low Cost Raymond Mill

FOB Price

USD $4,000 - $8,888,888 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Raymond Mill
Capacity(t/h)	1-17t/h	Place of Origin	Henan, China
Brand Name	DH	Model Number	Multi-type
Warranty	12 months

Product Description

Specifications

High Efficiency and Low Cost Raymond Mill can grind stone into 30-2500 mesh powder grind.

raymond mill grinder Working principle

First the materials are crushed by the jaw crusher,then the crushed materials are transferred to a hopper by the elevator ,fed uniformly.quantltatively and continously by the vibration feeder to the grinding chamber of the main frame for grinding.the grinded particles are brought up by the air current of the blower into the classifier for classification.the particles with the required fineness are brought up by the air current through the pipe into a collector for separation and collection,the finished particles are discharged from a pipe outlet,Because of some moisture contained in the materials to be grinded,the heat resulting from grinding leads to the vaporized air which changes the airflow volume,Moreover,the outside air inhaled from the narrow gaps of the piping connections can increase the volume of air current.Therefor,it is necessary to adjust redundant air pipe between the blower and the main unit for keeping the balance of the air current.Then the redundant air is quided into a cloth bag of a dust cleaner to collect the fine power in the air,Finally, the redundant air is discharged after purfication.

raymond mill grinder Structure

raymond mill consists of main frame,duct fan,analyzer,cyclone power collection device,bag duct collector and pipe connection.we will provide the elevator,bunker,electrical cabinet,feeder,crusherand so on. to meet clientsrequirements.

raymond mill grinder Features and benefites

In the micro-power grinding room,the rollers hanged on the roller lifting frame,which is fixed with the main sheft and the scraper knife.the pressure spring press on the outer of the cantilever by tension rod,with the corss arm sheft as the supporting point.let roller tightly press on the inner surface of the ring.when the motor moved with equipment,the scraper knife on the scraper frame moved with the roller at the same time.as the roller moved on the inner sphere surface and moved itself.analyzer let the analyzer runner rotated by motor equipments,and the power fineness depend on the speed adjustment of the analyzer.

raymond mill grinder Applicability

raymond mill is suitable in grinding bartle,limestone,ceromic,coking coaland so on.it is mainly applied to the power processing of mineral products in the industries of mining,metallurgy,constrution materials and chemicl materials.ect.more than 280 kinds of high finesse power grinded,and the final product size can be adjusted as requied in the rang of 80-425meshes(even til 1000meshes).

raymond mill grinder Technical parameters

Model	Rollers NO	Rollers size	Ring size	Max feed size	Finished size	Processing capacity(t/h)			Mainframe power	Overall dimension
Model	(pcs)	(mm)	(mm)	(mm)	(mm)	0.125	0.075	0.044	kw)	(LxWxH)
GDM-260	3	Ø260x150	Ø780x150	15	0.613-0.033	2.2-3.0	1.5-2.2	1.0-1.4	18.5	4300X3500X5100
GDM-280	3	Ø270x140	Ø830x140	20	0.613-0.033	3.4-4.6	2.2-2.8	1.2-2.0	22	5300X4100X5200
GDM-310	4	Ø310x170	Ø950x170	25	0.613-0.033	4.3-5.6	3.0-3.8	2.1-3.5	30-37	7100X5900X7900
GDM-320	4	Ø320x160	Ø970x160	25	0.613-0.033	4.5-6.0	3.1-4.0	2.0-3.6	37	9900X5800X7500
GDM-410	5	Ø410x210	Ø1280x210	30	0.613-0.033	5.0-10.5	4.0-6.6	2.8-5.4	75	9200X7300X9700
GTM-320	4	Ø320x200	Ø980x200	25	1.6-0.045	3-8.8			45	7300X5365X8310
GTM-410	5	Ø410x240	Ø1320x240	30	1.6-0.045	6-13			90	9200X7000X9645
GTM-440	6	Ø440x270	Ø1600x270	35	1.6-0.045	13.0-22.0	12.0-18.0	10.0-17.0	132	12550X5700X8360
